Description
Hybrid beam spot wash 480W LED ZOOM profile moving head framing Light LM-480
Optics
Lamp: 480W White LED
CT: 8000K/6500K
Life: 20,000H
CRI: ≥74
Power
Max power consumption: 550W Pf≥0.98
Power supply: Electronic auto-ranging
Input voltage range: 100–240V, 50-60Hz
Movement
Pan movement: 540°/630°optional (16bit )
Tilt movement: 270° (16 bit)
Advanced motion system: auto repositioning,
fast, quiet and smooth
Colors
CMY color mixing
CTO linear
CT : 2700K~6500K
1 Color wheel: 7 dichroic filters +open

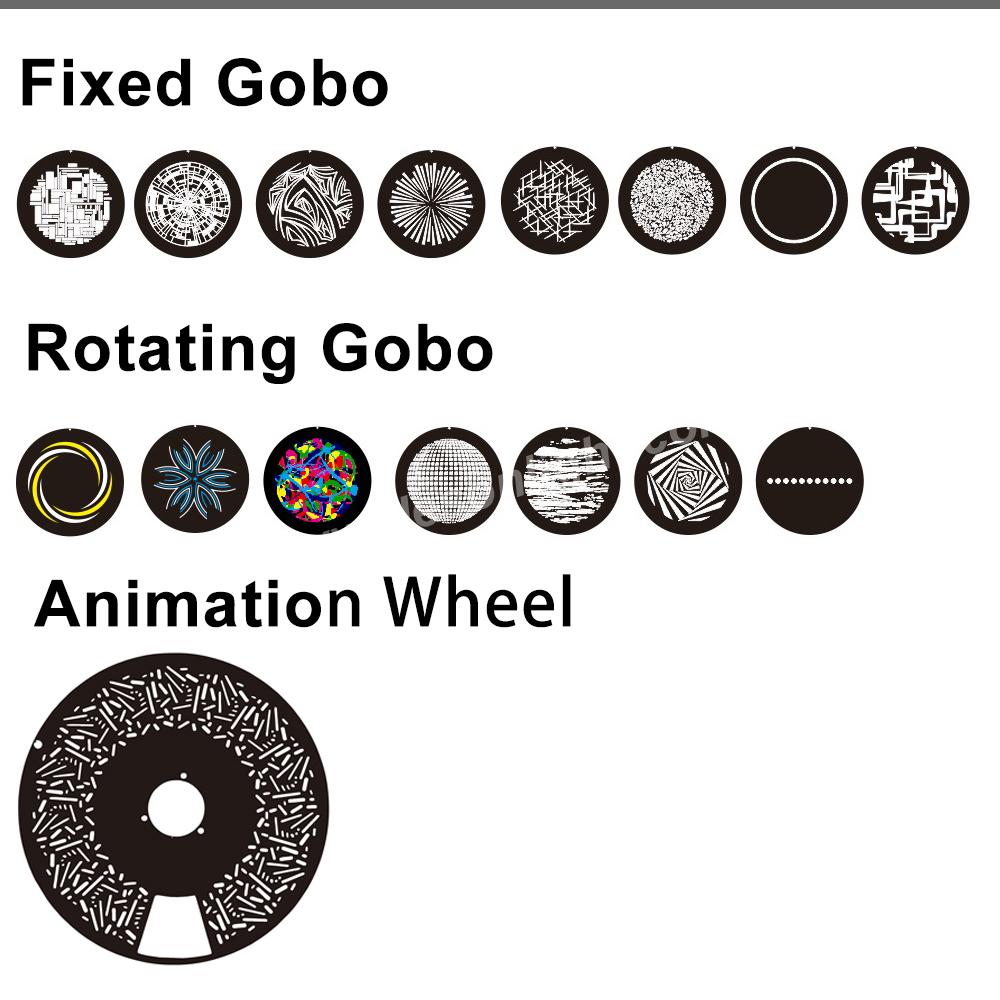

Gobos
1 Rotating gobo wheel: 7 interchangeable + open
1 Static gobo wheel: 8 + open
Features
Rotating prism : 5-facet prism
Focus : motorized focus
Shutter: electronic, variable from 1-25Hz or random
Dimming:0-100% linear dimming
Frost: 0-100% linear adjustment

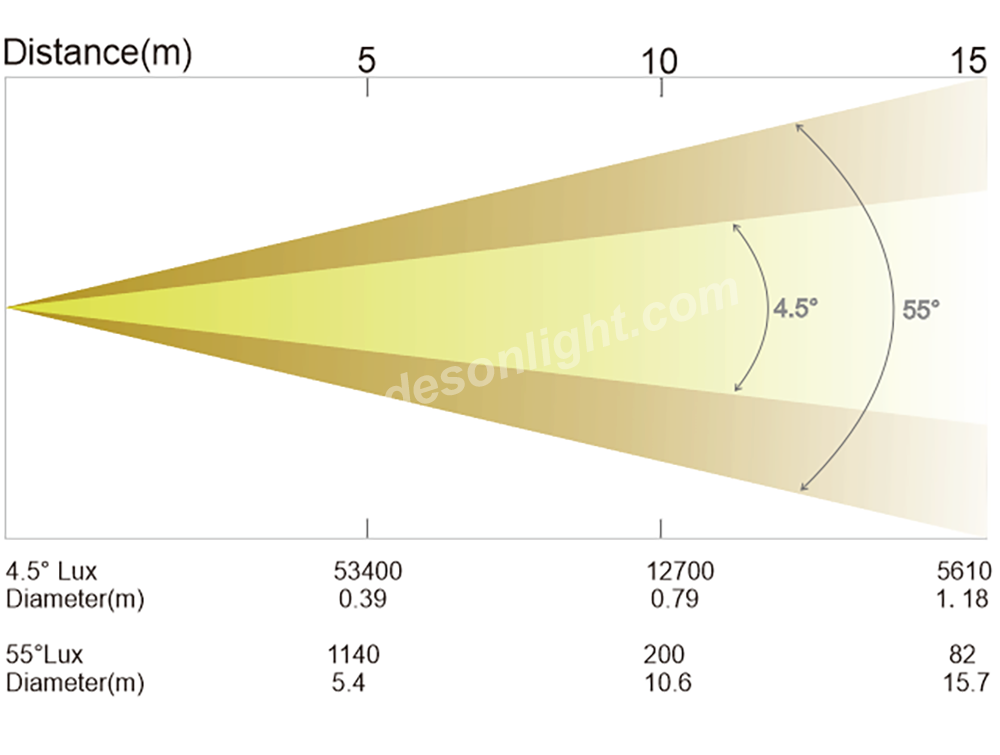

Zoom : 4.5°-55° linear zoom
Animation wheel: special dynamic flame or water effect, etc
Framing system full
field travel with the ability to create
different shapes Rotation of ±45°
Display
LCD display with battery operated for
fast addressing
15 second standby auto lock
Pan/ Tilt disengage (hold MENU and ENTER
button)
Software
Run time of LED engine and fixture
2 Control channel modes: 34/54 channels

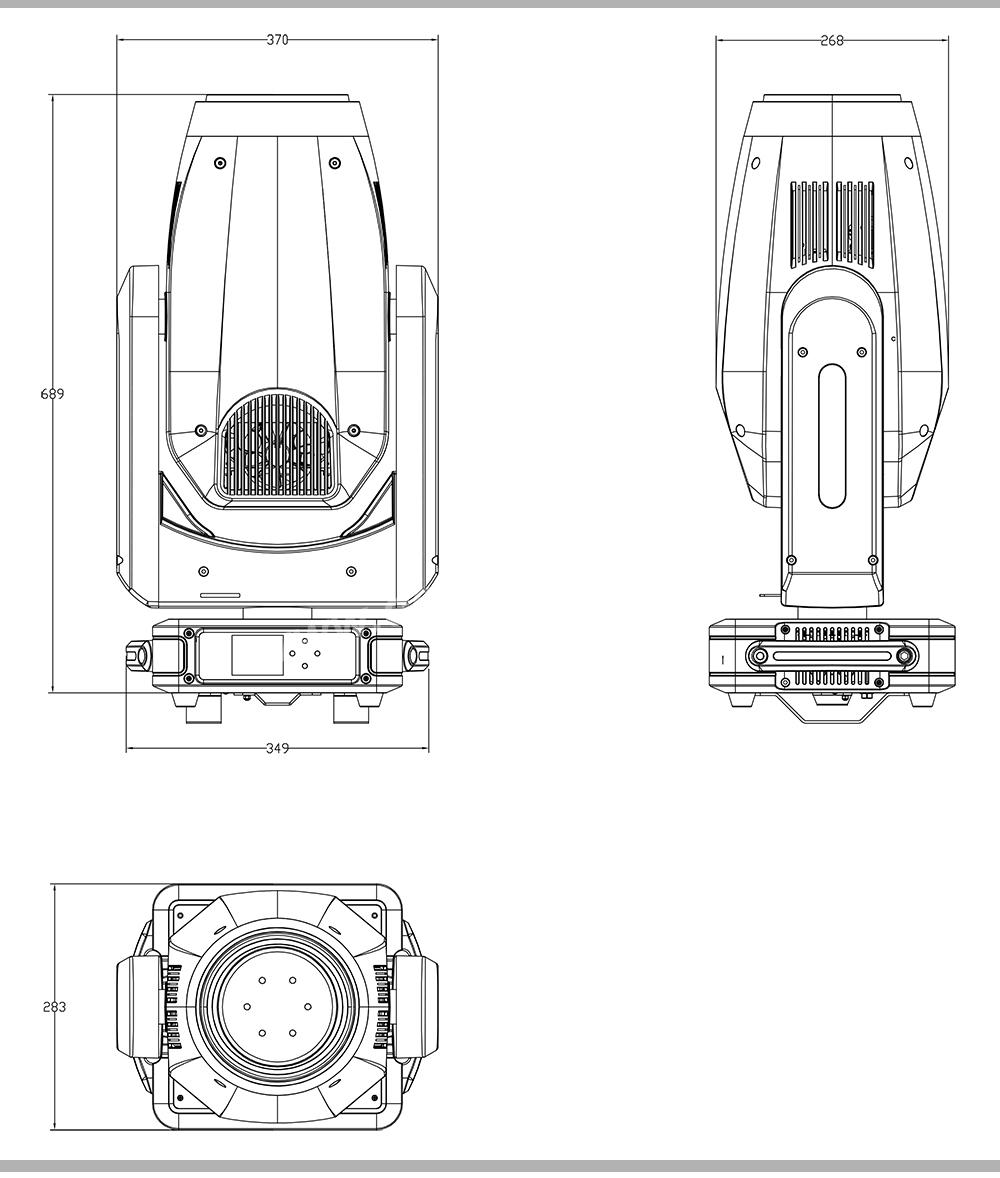

DIMENSIONS AND WEIGHT
Net Weight: 30kg
Gross Weight: 34kg
Dimension: 290x385x720mm
Packing Size: 830x450x370mm
Other Specification
Input signal isolation
Optional installed wireless receiver
Optional ArtNET control
Optics
Lamp: 480W White LED
CT: 8000K/6500K
Life: 20,000H
CRI: ≥74
Power
Max power consumption: 550W Pf≥0.98
Power supply: Electronic auto-ranging
Input voltage range: 100–240V, 50-60Hz
Movement
Pan movement: 540°/630°optional (16bit )
Tilt movement: 270° (16 bit)
Advanced motion system: auto repositioning,
fast, quiet and smooth
Colors
CMY color mixing
CTO linear
CT : 2700K~6500K
1 Color wheel: 7 dichroic filters +open
Gobos
1 Rotating gobo wheel: 7 interchangeable + open
1 Static gobo wheel: 8 + open
Features
Rotating prism : 5-facet prism
Focus : motorized focus
Shutter: electronic, variable from 1-25Hz or random
Dimming:0-100% linear dimming
Frost: 0-100% linear adjustment
Zoom : 4.5°-55° linear zoom
Animation wheel: special dynamic flame or water effect, etc
Framing system full
field travel with the ability to create
different shapes Rotation of ±45°
Display
LCD display with battery operated for
fast addressing
15 second standby auto lock
Pan/ Tilt disengage (hold MENU and ENTER
button)
Software
Run time of LED engine and fixture
2 Control channel modes: 34/54 channels
DIMENSIONS AND WEIGHT
Net Weight: 30kg
Gross Weight: 34kg
Dimension: 290x385x720mm
Packing Size: 830x450x370mm
Other Specification
Input signal isolation
Optional installed wireless receiver
Optional ArtNET control
RDM compatible
