Description

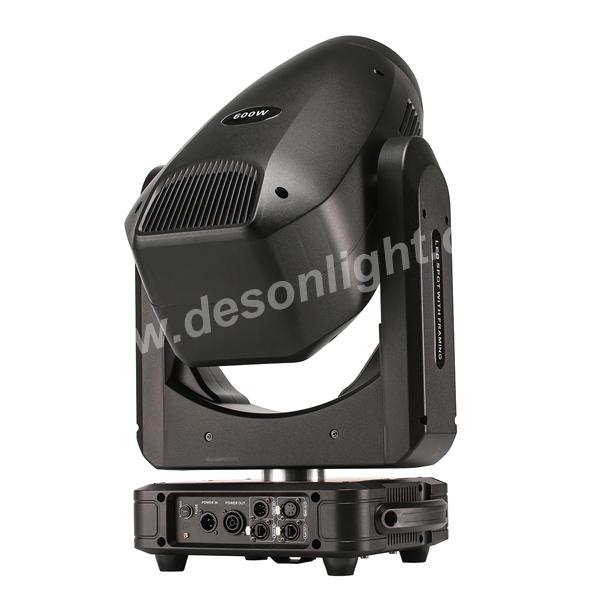

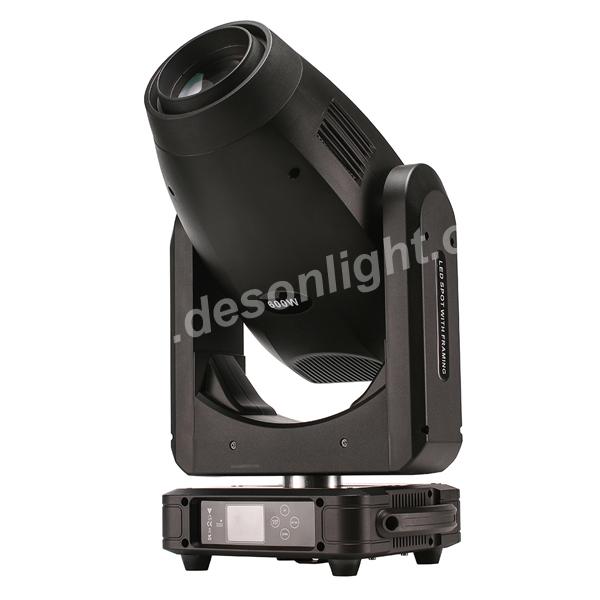

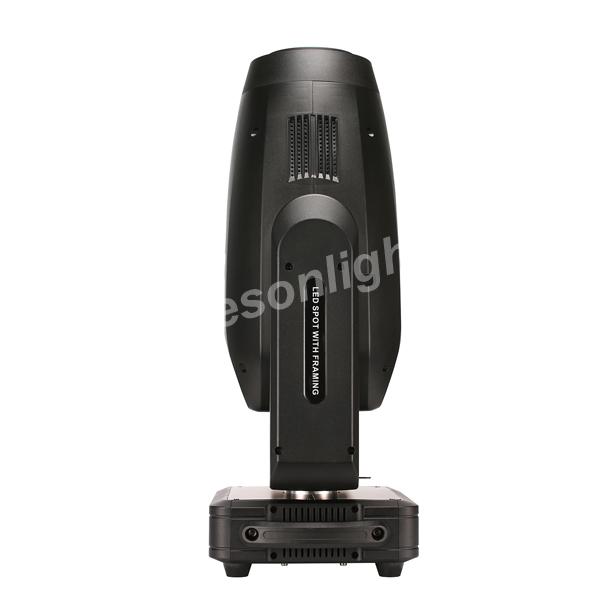

CMY 600w LED BSW framing Cutting moving head light LM-600
Optics
Lamp: 600W White LEDCT: 8000K/6500K
Life: 20,000H
CRI: ≥74

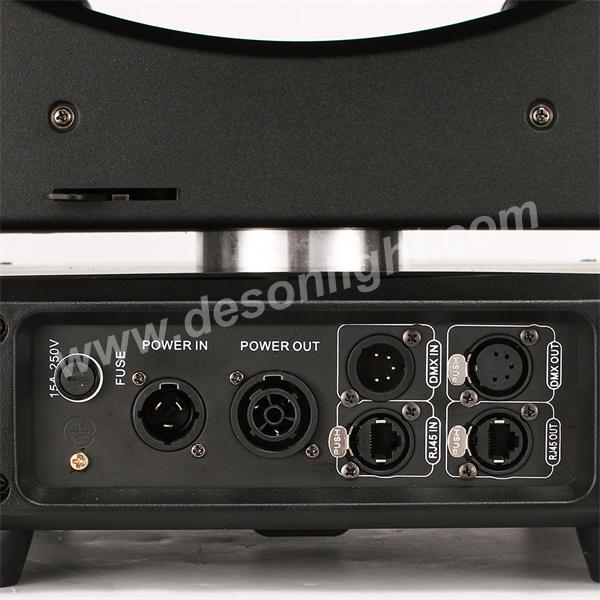

Power
Max power consumption: 850W Pf≥0.98
Power supply: Electronic auto-ranging
Input voltage range: 100–240V, 50-60Hz
Movement
Pan movement: 540°/630°optional (16bit )
Tilt movement: 270° (16 bit)
Advanced motion system: auto repositioning,fast, quiet and smooth
Colors
CMY color mixing
CTO linear
GL6: 2700K~8000K GL6H: 2700K~6500K
1 Color wheel: 7 dichroic filters +open

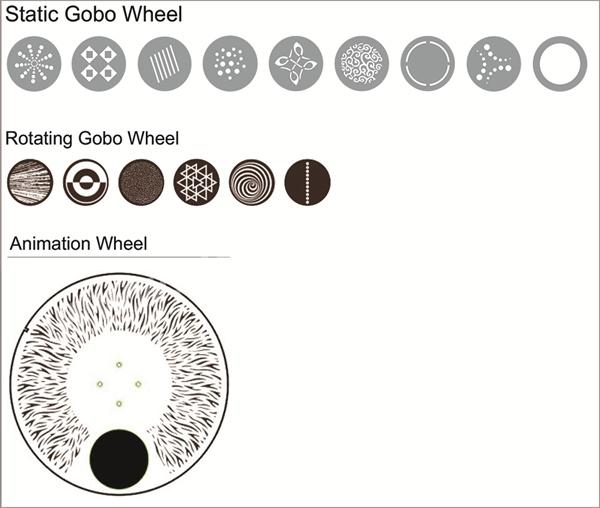

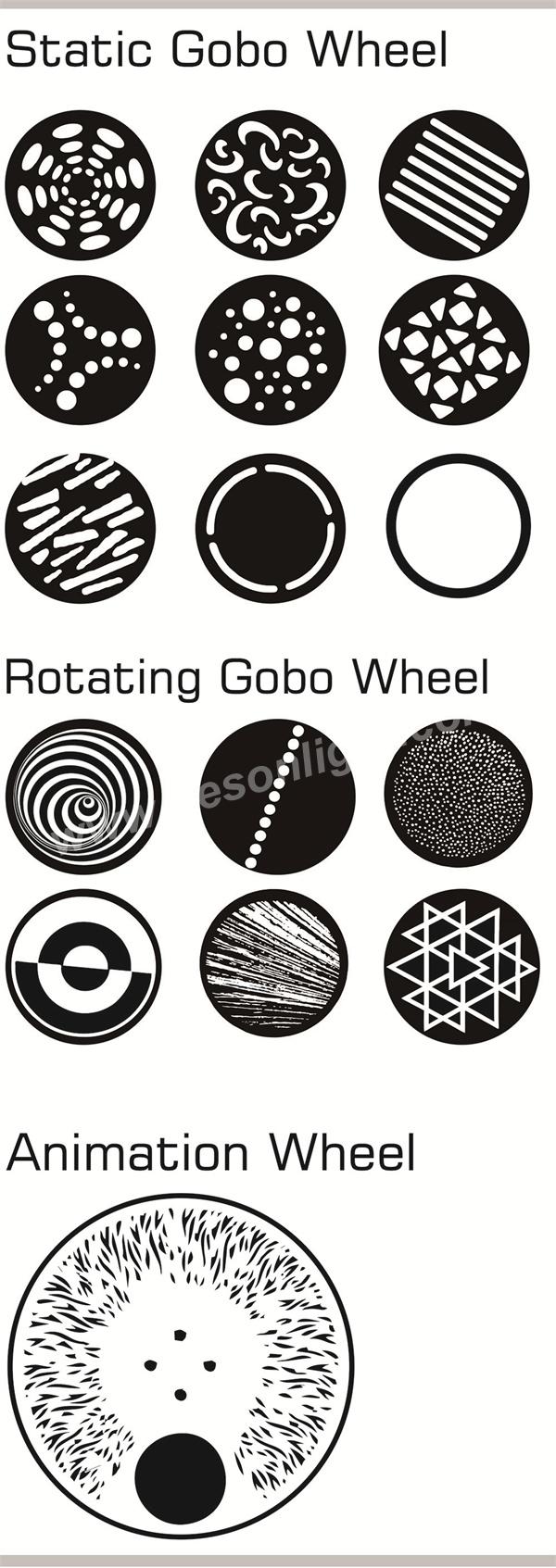

Gobos
1 Rotating gobo wheel: 6 interchangeable + open
1 Static gobo wheel: 7 + open
Features
Rotating prism : 5-facet prism
Focus : motorized focus
Shutter: electronic, variable from 1-25Hz or random
Dimming:0-100% linear dimming
Frost: 0-100% linear adjustment

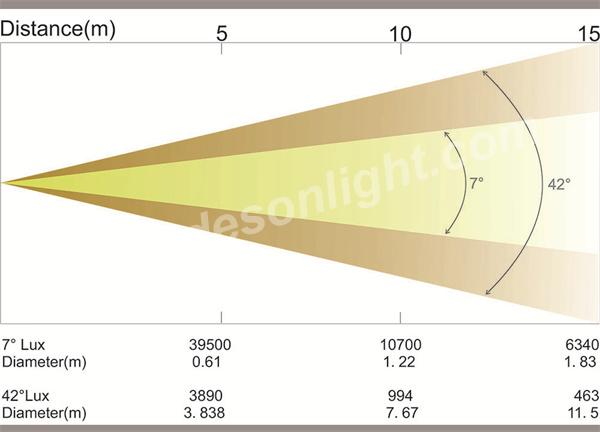

Zoom : 7°-42° linear zoom
Animation wheel: special dynamic flame or water effect, etc

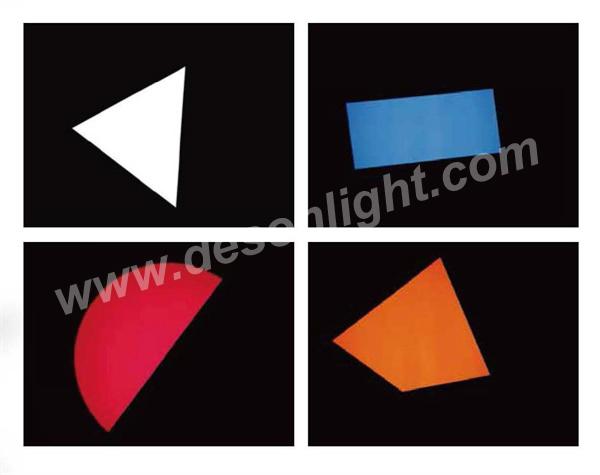

Framing System
4 fast and smooth framing shutters,
each shutter blade position and angle can be controlled individually
Movement is fast & smooth, with adjustable speed
Framing shutters can be precise motion with smooth movement
Each shutter blade can block out light completely,
the framing module can be rotated at ±45°

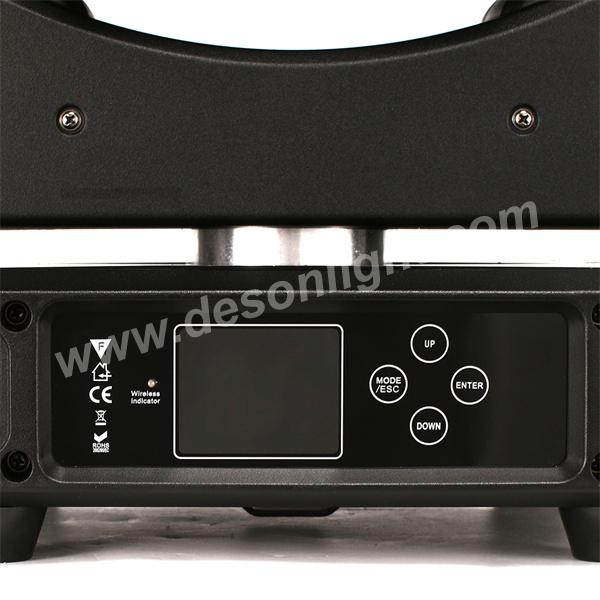

Display
LCD display with battery operated for
fast addressing
15 second standby auto lock
Pan/ Tilt disengage (hold MENU and ENTER button)
Software
7 built-in program ( optional)
Upgrades: fast and convenient using
uploaded over DMX
Remote reset DMX address, fixture reset,
sound control by DMX
Run time of LED engine and fixture
2 Control channel modes: 34/54 channels
Other Specification
Input signal isolation
Optional installed wireless receiver
Optional ArtNET control
RDM compatible
LM-600 is with a framing system designed to offer lighting designers unlimited creative possibilities without any compromise.
Fitted with an LED module using a high-output, monochromatic white light source calibrated at 6,500K, LM-600 delivers a light output of 12,000 lumens in a highly compact format.
The optics produce an extremely uniform flat beam with no hot spot.
The selection of gobos and colours was made in collaboration with lighting designers to meet the needs of the entertainment industry.
The LM-600’s compact ABS and metal housing features temperature controlled fan cooling to ensure reliable operation and extended LED life . It comes with an omega bracket for a variety of mounting options
