Description

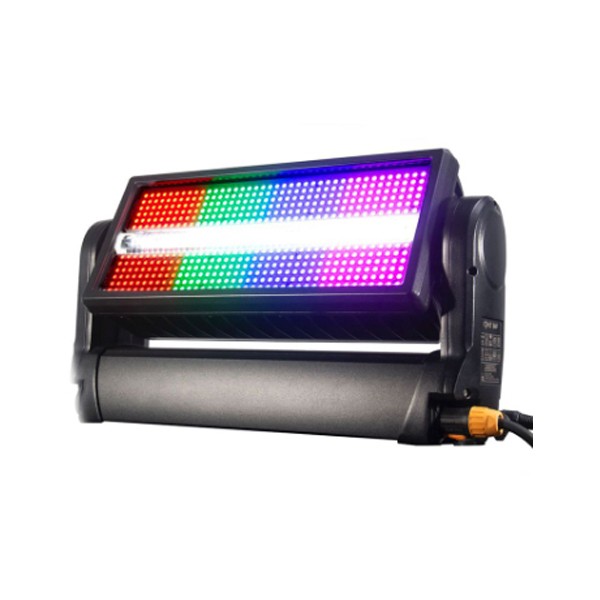

DMX 512 LED 1000W Outdoor Strobe Wash Moving Head Light LS-906
Strobe Panel LEDs
LED Type: 5050 0.5W RGB 3in1 LEDs
LED Count: 480
LED Colors: RGB
LED Segments: 8 (2 x 4)
Strobe Tube LEDs
LED Type: 3535 5W 6500K LEDs
LED Count: 144
LED Colors: Cool-White
LED Segments: 4
Movement
Resolution: 8-16 Bit
Tilt (Degrees): 185°
Control
Control Modes: 9CH / 14CH / 42CH
Display: Illuminated graphic LCD
Protocol: USITT DMX-512, RDM
RDM: Bidirectional communication
Wireless DMX: 2.4 GHz W-DMX™ (optional)
Cooling: Temperature controlled, overheating protection
Effects
Dimmer: 0-100% electronic
Shutter: electronic, max. 20 Hz
Internal Effects: LED Macro Effects
Connectors
Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out Power Input: Seetronic powerCON TRUE1 In/Out
Operating Condtions
Mains voltage: 100-240V AC / 50-60Hz
Power: 1000W
Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F Operating Position: any
Mounting Options
Standing: Rubber feet
Hanging: Omega-Bracket
Safety wire attachment: foldout eyelets
Shipping
Single fixture: cardboard (inner and outer cartons) Tourpack: 4-way Flight Case
Housing Colors
Standard colors: black
Dimensions & Weight
Length: 482 mm / 18.9 in
Width: 178 mm / 9.0 in
Height (head horizontal): 243 mm / 9.5 in
Weight
N.W: 10 kg
Strobe Panel LEDs
LED Type: 5050 0.5W RGB 3in1 LEDs
LED Count: 480
LED Colors: RGB
LED Segments: 8 (2 x 4)
Strobe Tube LEDs
LED Type: 3535 5W 6500K LEDs
LED Count: 144
LED Colors: Cool-White
LED Segments: 4
Movement
Resolution: 8-16 Bit
Tilt (Degrees): 185°
Control
Control Modes: 9CH / 14CH / 42CH
Display: Illuminated graphic LCD
Protocol: USITT DMX-512, RDM
RDM: Bidirectional communication
Wireless DMX: 2.4 GHz W-DMX™ (optional)
Cooling: Temperature controlled, overheating protection
Effects
Dimmer: 0-100% electronic
Shutter: electronic, max. 20 Hz
Internal Effects: LED Macro Effects
Connectors
Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out Power Input: Seetronic powerCON TRUE1 In/Out
Operating Condtions
Mains voltage: 100-240V AC / 50-60Hz
Power: 1000W
Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F Operating Position: any
Mounting Options
Standing: Rubber feet
Hanging: Omega-Bracket
Safety wire attachment: foldout eyelets
Shipping
Single fixture: cardboard (inner and outer cartons) Tourpack: 4-way Flight Case
Housing Colors
Standard colors: black
Dimensions & Weight
Length: 482 mm / 18.9 in
Width: 178 mm / 9.0 in
Height (head horizontal): 243 mm / 9.5 in
Weight
N.W: 10 kg
G.W: 12.5 kg
Shock your head and flash:
carton: Size 64*36*23,13.5kg.
4in1 case: size 90*53*44, weight: 65kg
