Description

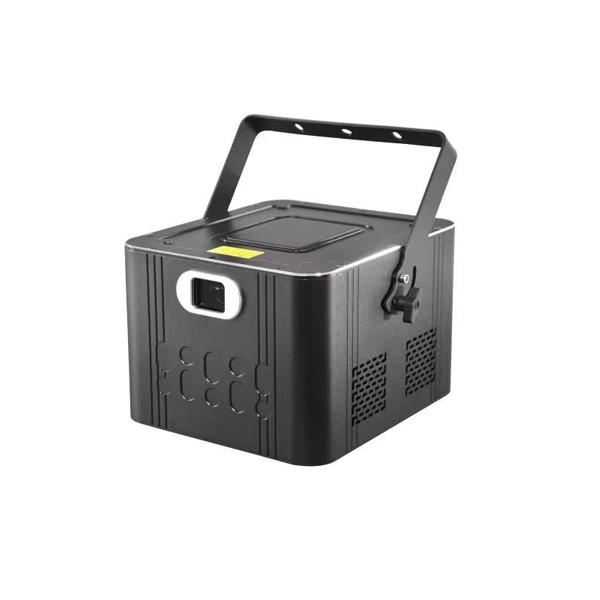

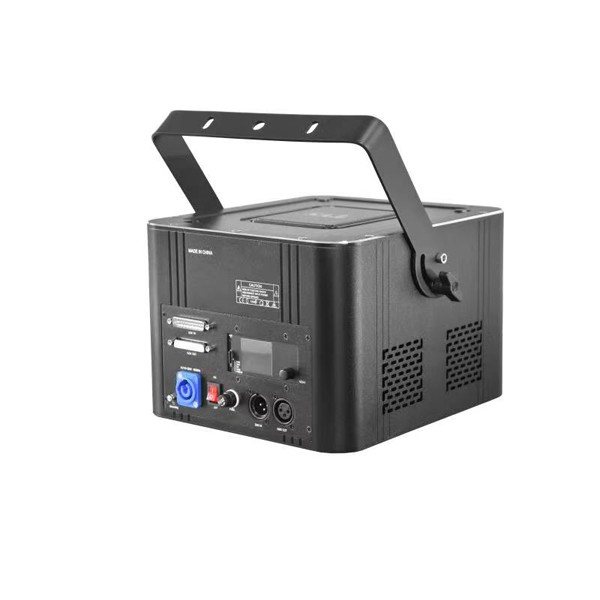

15Watts mini dmx512 15w ILDA Animation Laser beam light L-809
Laser power:
R red 4500mW (638nm)
G Green 3800MW (525nm)
B blue 6500mW (450nm)
Playing system: DMX512, voice control, automatic, ILDA, animation, you can select the laser show in the scene through DMX.
Display system: LCD display, can be transformed in Chinese and English freely
Imaging system: 30KPSS or 40KPSS high -speed scanning mirror optional, scanning angle ± 25 °, input signal ± 5V, linear distortion <2%.
Program effect: various beam, geometric figures, animation, broken pen effects, more than 200 types of beam animation effects
Programming: DMX512 can arrange various beams, animation programs, use control software to connect to the computer, and arrange more rich animation programs
Laser modulation: TTL
Beam extension angle: 6.5mm, <1.2mrad
The entire machine power: 60 ~ 85W (maximum 85W)
Control interface: DMX512 (18/25 channel), ILDA (standard computer software interface)
DMX special effects: color, frequent flash, line segments, highlights, horizontal movement, vertical movement, zoom, X flip, Y flip, center goes and reverses, gradually painted, X wave special effects, y wave special effects effect
Dimensions: 242*276*181mm
Weight: 6.78kg
