Description

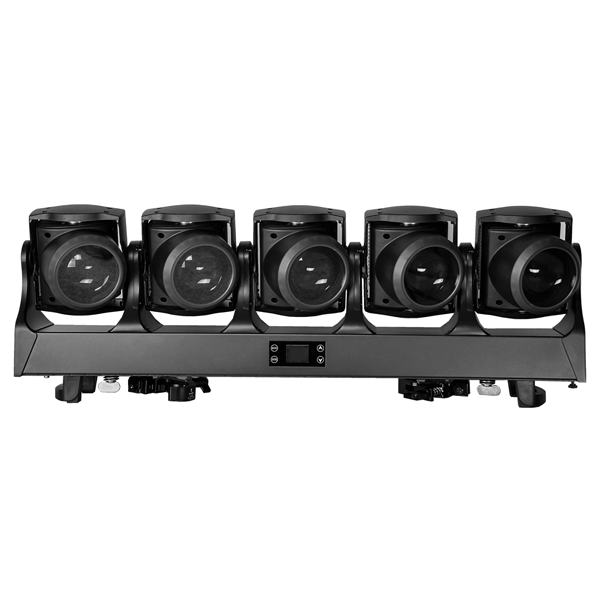

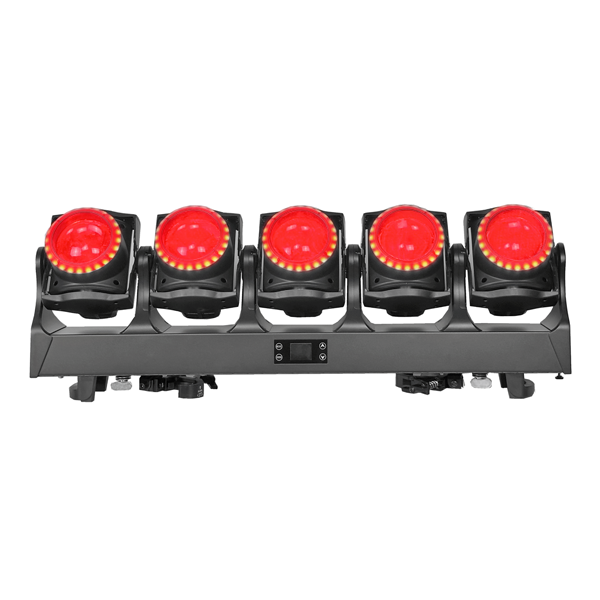

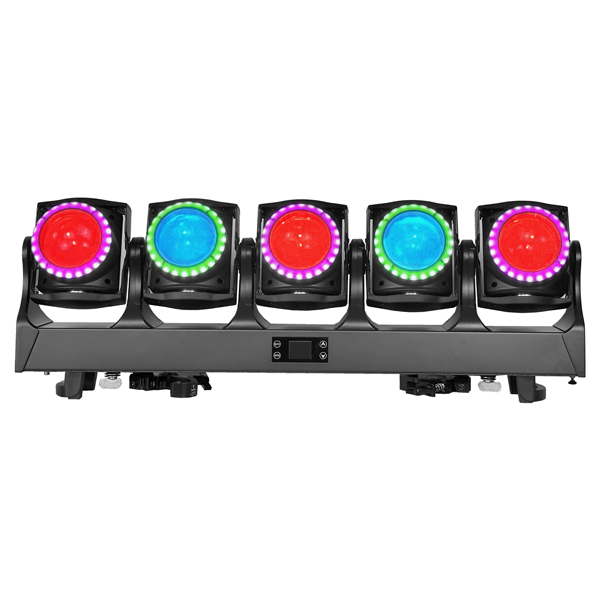

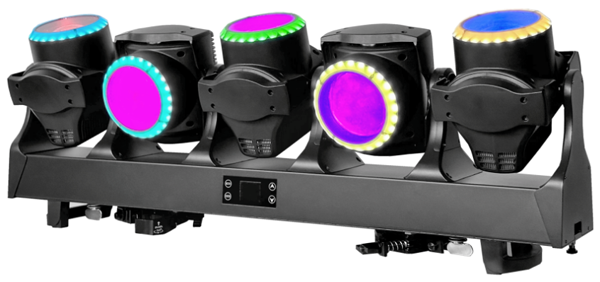

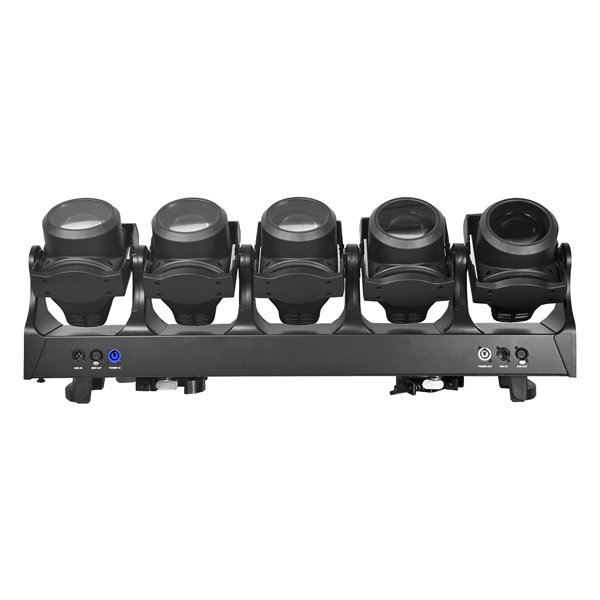

Aluminum Tornado 5x120W Zoom Beam Stage Wash Lights Moving Head Light Aperture RGBW LED LD-TB5
Light Source
Main Light: 5 x 120W LEDs
Outer Circle: 120 x 0.5W RGB LEDs
Total Lumen Output of Fixture: 13,000 lumens
Life Expectancy: 20,000 hours
Optical System
Beam Angles: 3°-30° Field Angles: 4°-35°
Control and Program
4 button touch control panel
Display: LCD display
Protocols: DMX512, RDM
Control Channels: 21CH/41CH /71CH/75CH/85CH/170CH
Firmware Upgrade: Upgrade via DMX link
Pan & Tilt
Pan Movement: 59° Tilt Movement: 221° Automatic Pan/Tilt position correction
Resolution: 16 bit
Other Effects
Outstanding strobe effects with variable speed
Variable light adjustment from 0-100% dimming
Outstanding color mixing effects
Outstanding color macro effects
Linear focusing structure
Electrical and Connectors
Input Voltage Range: 100-240V~ 50/60Hz
Power Consumption: 935W
Power In/Out: Waterproof power connector in/out (True1 type)
Data In/Out: 3-pin XLR
Fixture Specification
Fixture Size:1002*196*334mm
Net Weight: 26.6kg
Protection Rating: IP33
