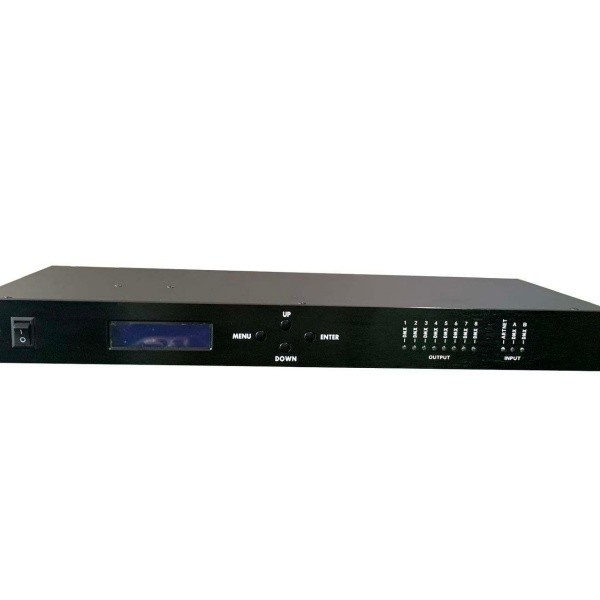

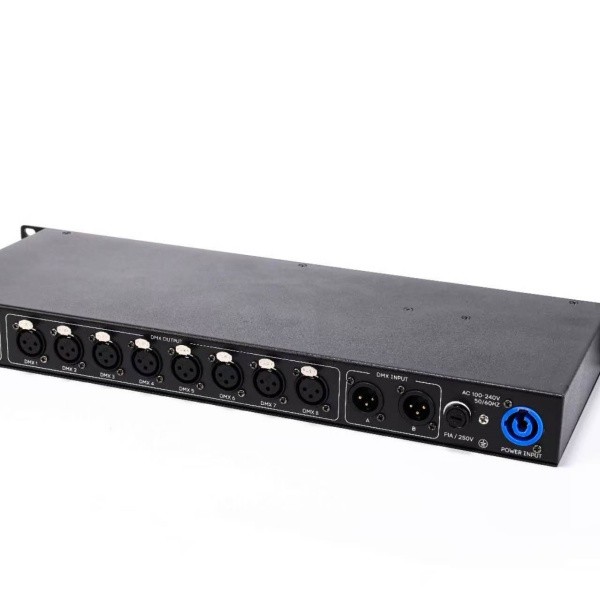

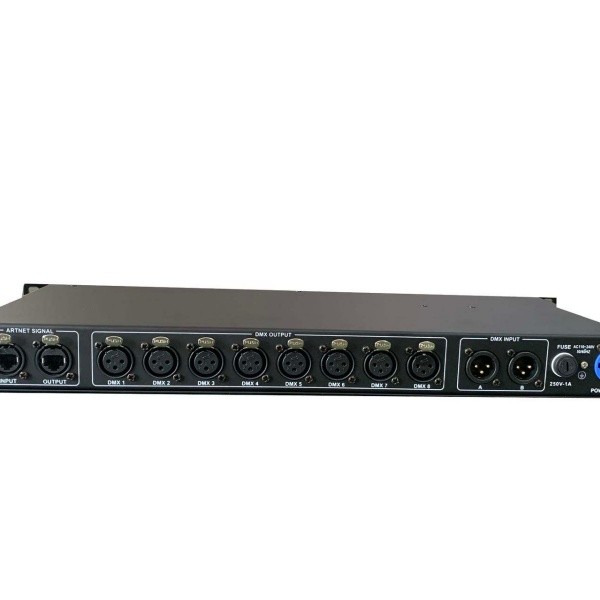

Artnet DMX 8 Way Network 8 Port console Expander
  1. Artnet DMX 8 Way Network 8 Port console Expander
  2. Artnet DMX 8 Way Network 8 Port console Expander
  3. Artnet DMX 8 Way Network 8 Port console Expander
  4. Artnet DMX 8 Way Network 8 Port console Expander
  5. Artnet DMX 8 Way Network 8 Port console Expander

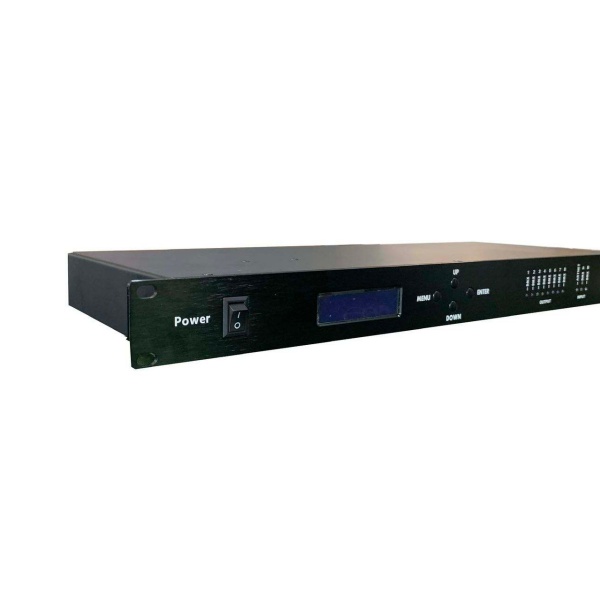

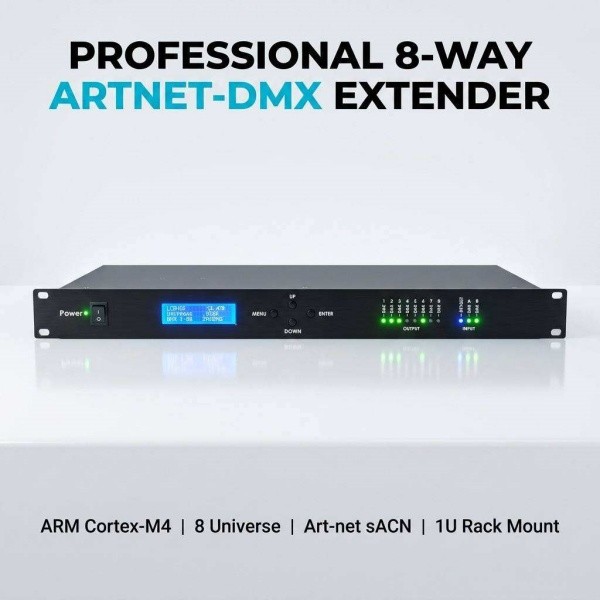

Artnet DMX 8 Way Network 8 Port console Expander

Product Item:LC-8ARTNET

Send Inquiry Send Email



PREVIOUS:Economical Dmx Led Lift Ball System Controlled Led Kinetic Ball Lights
NEXT:850W LED Beam Spot Wash 3in1 CMY DMX512 Rotating Gobo Pattern moving head Light

Description

Artnet DMX 8 Way Network Expander for Stage Lighting System Artnet DMX Controller 8 Port console LC-8ARTNET

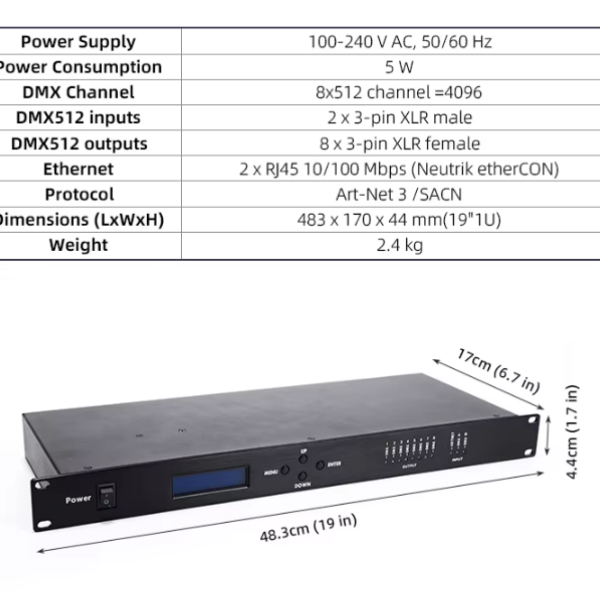

 Technical Specifications:
· Network Protocol: Art-Net, TCP/IP
· Signal Channels: 8 DMX512 input/output ports
· Operating Voltage: AC 100V–240V, 47/60Hz
· Gross Weight: 2.08 kg | Net Weight: 2.3 kg
· Features:
1. Proprietary software—developed in-house, not a clone.
2. Powered by an advanced ARM Cortex-M4 CPU.
3. Each output channel features independent opto-isolation (2000V DC isolation).
4. Compatible with all consoles supporting the Art-Net protocol (e.g., Avolites Pearl Expert, Tiger Touch, MA Lighting, Hog, etc.).
5. Capable of converting standard DMX512 signals into Art-Net network signals.

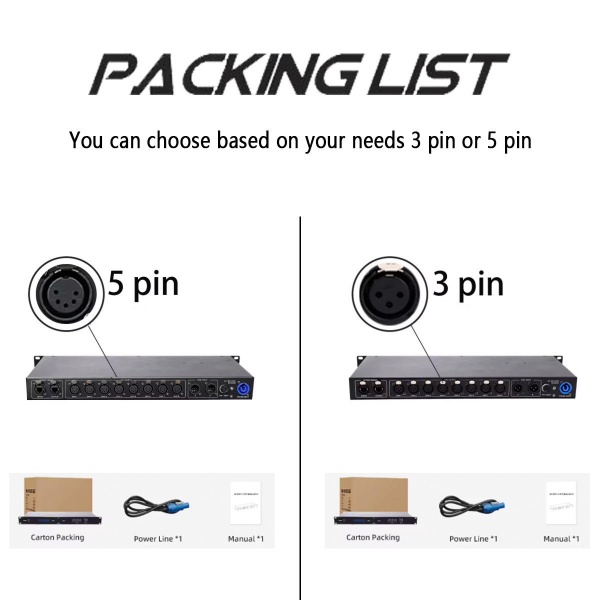

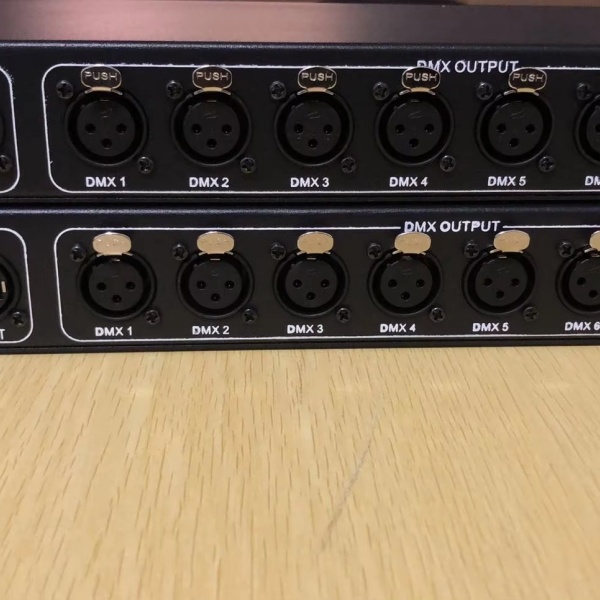

6. Equipped with genuine Neutrik 3-pin XLR connectors (5-pin options available).
7. Firmware can be updated via USB flash drive or over the network.
8. System parameters can be configured via the LCD screen or the network interface.
9. Brushed aluminum alloy enclosure; designed for standard 1U 19-inch rack mounting.
