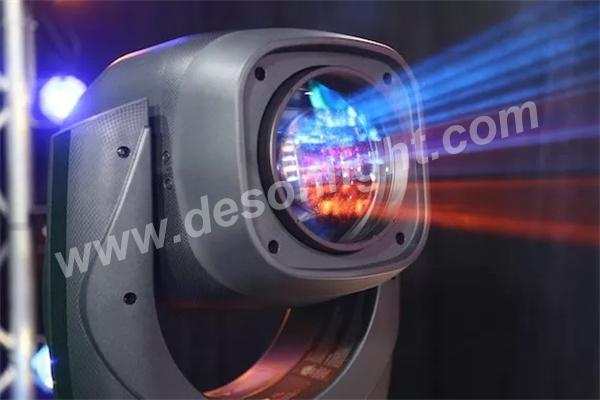

Claypaky 470W 20R CMY CTO Mythos Beam Spot Wash 3in1 Hybrid Moving Head Light
  1. Claypaky 470W 20R CMY CTO Mythos Beam Spot Wash 3in1 Hybrid Moving Head Light

Claypaky 470W 20R CMY CTO Mythos Beam Spot Wash 3in1 Hybrid Moving Head Light

Product Item:M-470

Send Inquiry Send Email PDF



PREVIOUS:36x3W RGB led curtain beam wash Auxiliary Light
NEXT:Customized silent high-end moving head air box

Description

Claypaky Sirius HRI 470w 20R CMY CTO CTB Clay Paky Mythos Beam Spot Wash 3 in 1 Moving Head Light M-470
Total Power:670W

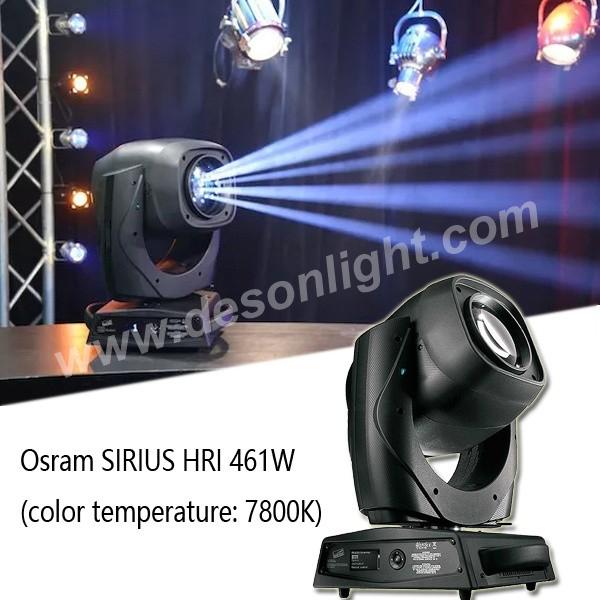

Light source: Osram SIRIUS HRI 461W S (color temperature: 7800K)
Beam Angle:0.3°-2.5°
DMX Channel:30/34CH
Coloring:CMY non-polar color mixing
Control Protocol:DMX512, Art-net
Display:128*64 pixel LCD display

Electronic focusing for a perfectly sharp light beam along its entire length
Zoom ranging from 4° to 31° for fixed gobos sharp focusing
Zoom range from 6.7° to 50° for rotating gobos sharp focusing
BEAM mode with 2.5° aperture and “pipe” effect
Beam Angle(in total): 2.5-50°
Operational Modes: DMX512,Stand Alone, Master/Slave

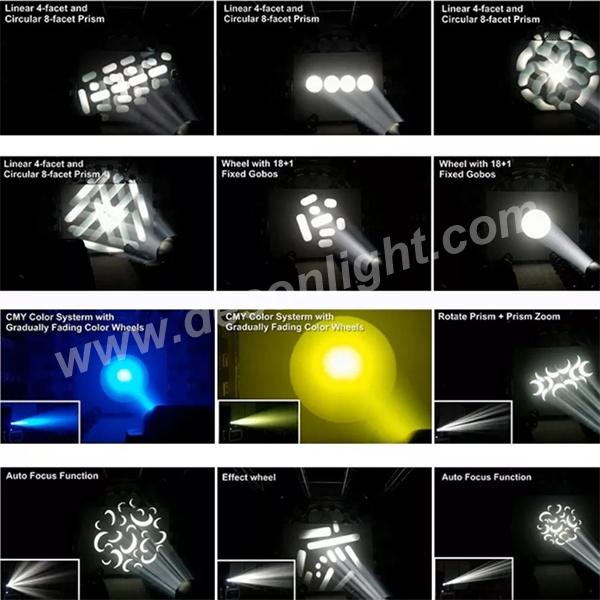

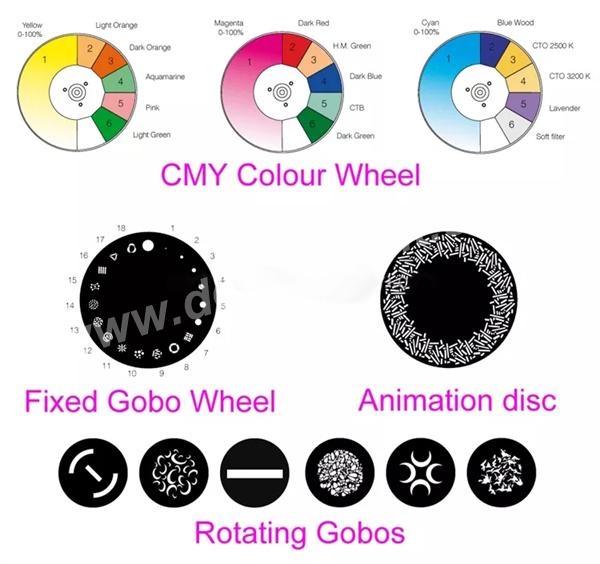

Animation wheel: Advanced visual effect disc (animation disc)
Fixed Gobo wheel: 18 static gobos + open
Rotating Gobo wheel : 6 HQ dichroic, indexable and interchangeable rotating gobos + open
Color wheel: 15 special color filters on three wheel

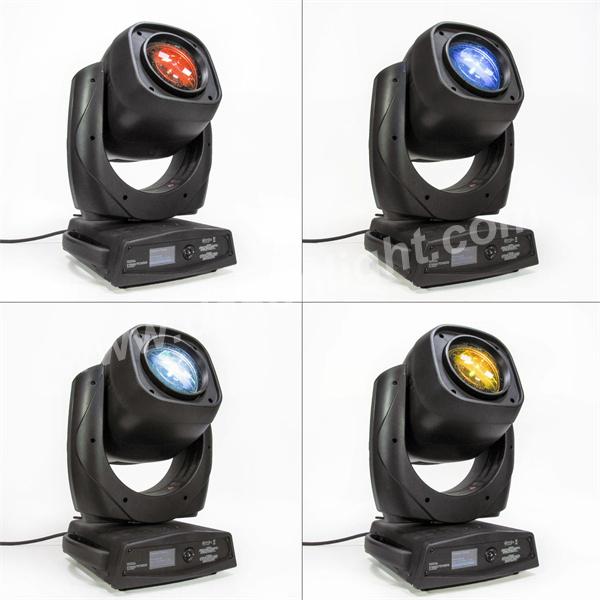

Colors: CMY color mixing with gradually fading color wheels,can mix any colors as you want
2 CTO filters (3200 K and 2500 K) + 1 CTB filter
Display battery: Long life self-charging buffer battery
Double Prisms: 8-facet prism + linear 4-facet prism
Colour temperature: 8,000 K
DMX Connection: 3-pin OR 5-pin
Strobe: Electronic 0-20KHz
Dimming: Electronic 0-100%
Pan/Tilt: 540/270 degree(16bit)
Display: LCD backlit Display
Power connection: Locking PowerCon in
Power Draw: 700W Max
Voltage Input: AC 100-240V, 50-60Hz
Weight: 32kg
Net weight: 32kg

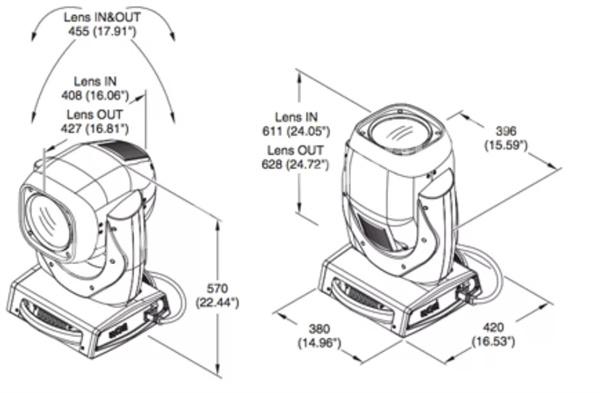

Lighting size: 46*40*63cm

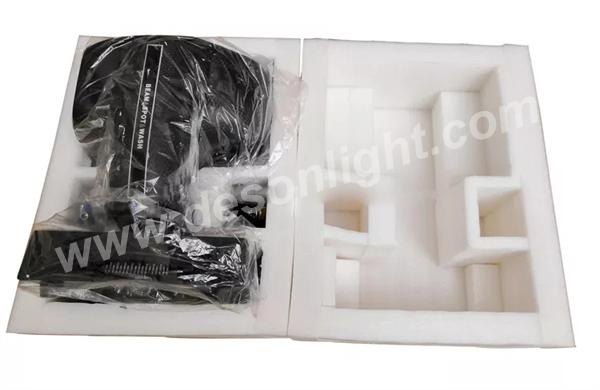

Gross weight: 38kg (1 carton per 1)
59kg (1 air box per 1)
108kg (1 air box per 2)
Packing size: 72*57*53cm (1 carton per 1)
67*47*80cm (1 air box per 1)
98*55*79cm (1 air box per 2)
