Description

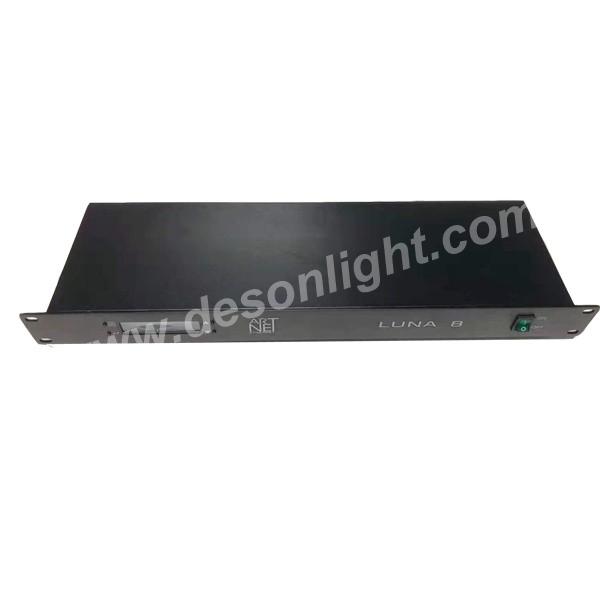

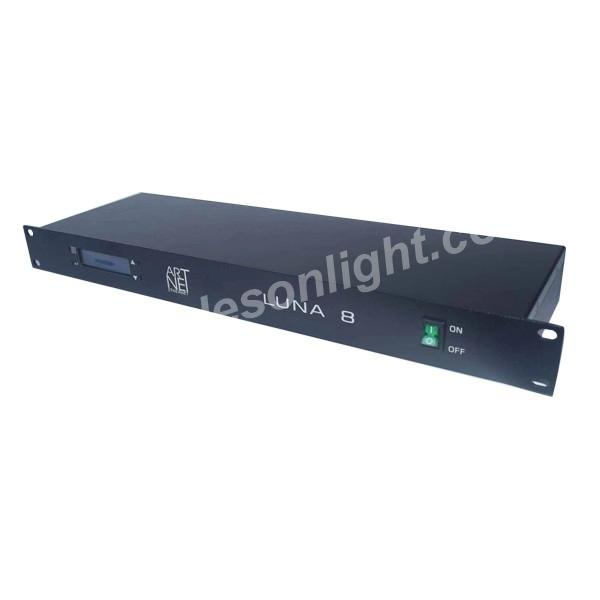

MA tiger console 8-channel DMX extender ArtNet simulator network controller LUNA 8
● LAN<─>DMX two-way transmission, following the V1.4 Art-Net 3 protocol
● It can be set to server mode (input DMX) or node mode (output DMX)
● 4096 channels (8 DMX lines, DMX512 /1990 standard, 44Hz refresh rate
● 32-bit ARM M4, built-in high-speed network chip 10/100M adaptive network switch port 2 can be cascaded
● IP and subnet mask, port order, domain, etc. can be modified by yourself
● Photoelectric isolation drive signal output, built-in TVS protection circuit
● Support sound and light synchronization software, support MADRIX software
● Compatible and support software with ART-NET function, and can be used as an extender for physical consoles such as MA and Tiger
● It is intuitive and convenient to use computer software to control lamps and lanterns, and there are many kinds of software
● Fast programming, and music synchronization control via MIDI signal
● Support external DMX signal of physical console to computer 3D software simulation (software with Art-Net input function)
(Such as: WYSIWYG, EasyView 3D, Lighting Studio, Arkaos, Resolume, etc.)
● With LCD liquid crystal display panel, you can directly change the parameters of IP, port sorting, etc., and also support the software modification of the official website
● With SPI point light source signal output (such as: WS2801, WS2811, 2812, 6903, 16703 signal format)
● A single unit can be connected to 2720 RGB point light sources (4 outputs, that is, 680 points per channel X4), the port number can be set, and it can be independent of DMX
● Use MEAN WELL high-stability power supply, all-aluminum chassis, 1U size

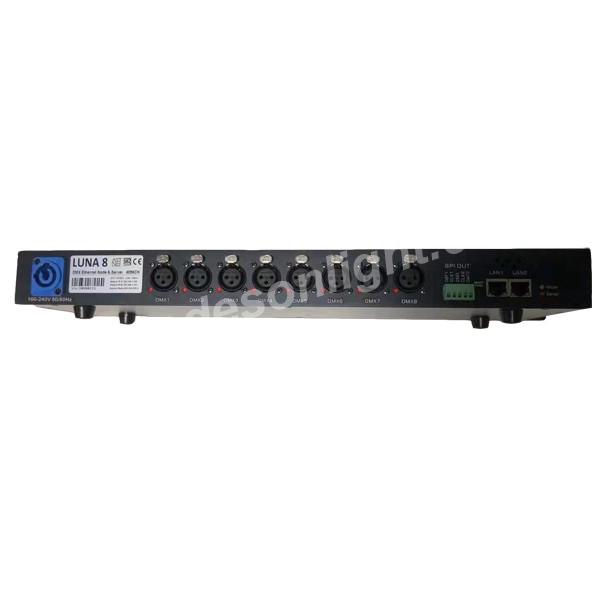

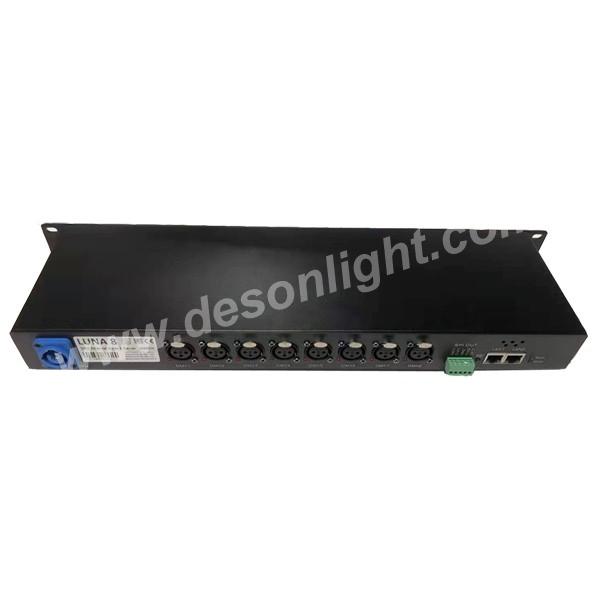

● DMX signal output connector: XLR-D3F x 8
● Net weight: 1.4kg, gross weight: 2.6kg (including power cord and 8 XLR connectors)
● Product size: 48.2 x 13.6 x 4.4 (cm)
Packing size: 56 x 21 x 11 (cm)
