Description

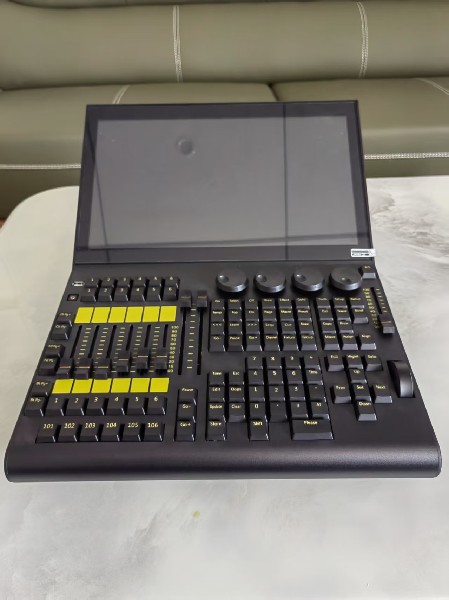

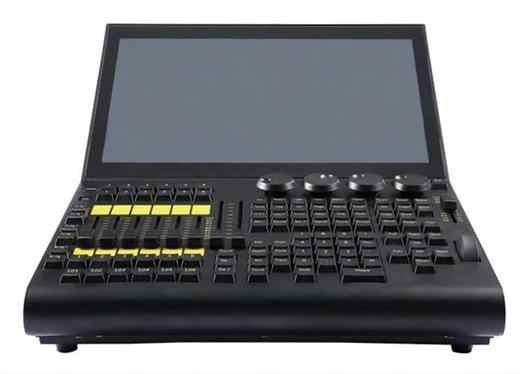

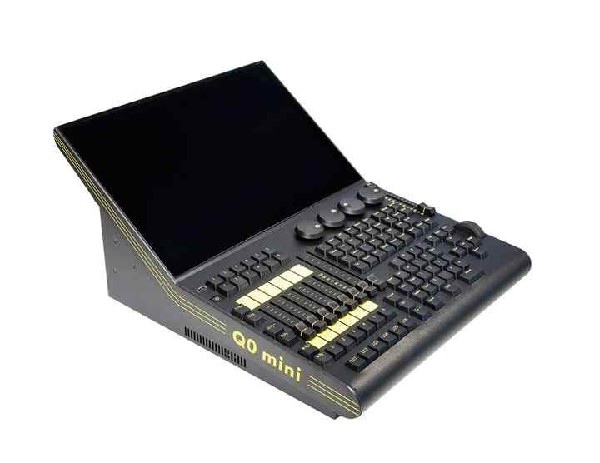

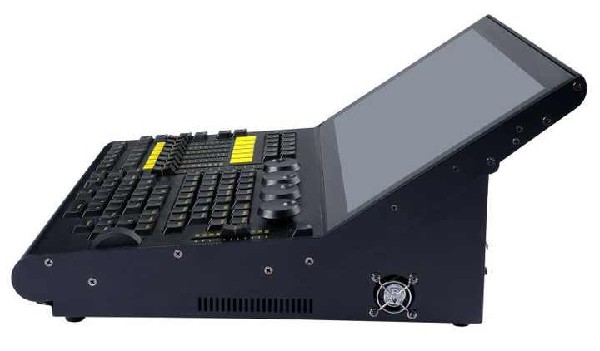

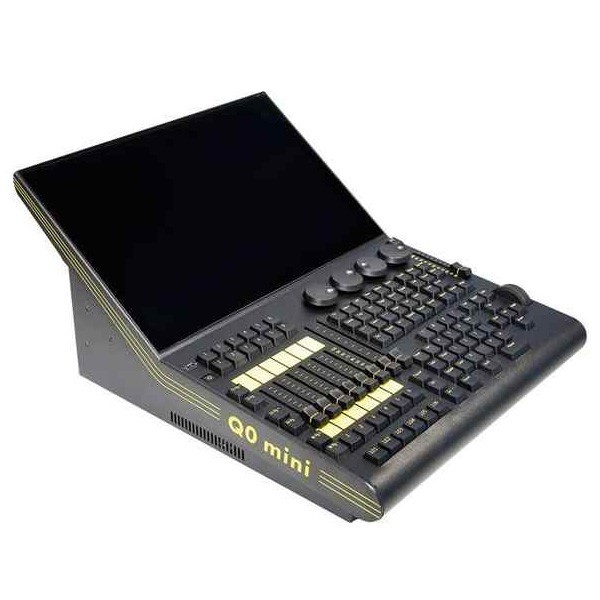

Grand MA2 Mini Q0 Stage 3D Effect DMX512 Stage Lighting Controller LC-Q0
SPECIFICATION:
2 DMX outputs,1 DMX INPUT(or output)
1 internal TFT wide mode touchscreens (15.6" WXGA)
1 external TFT screens can be connected (UXGA, touchscreens accepted)
6 manual executor fader,6 executor button
4 encoders with push function,1 dimmer roller,2 A/B fader(100mm),1 master fader

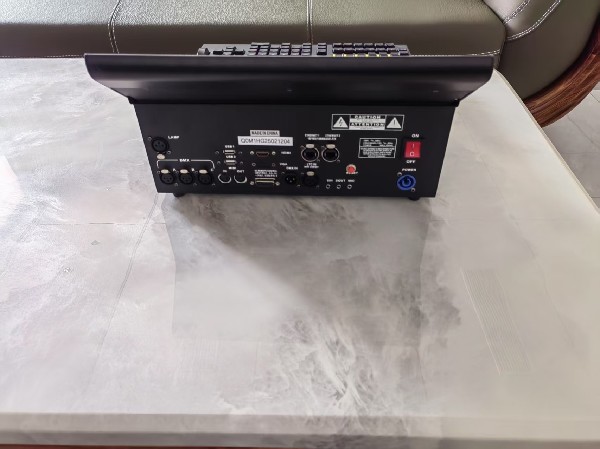

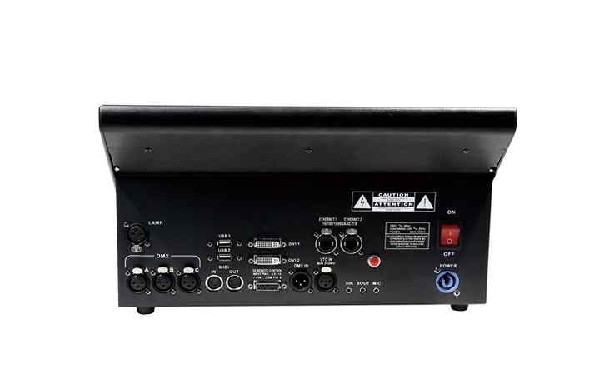

2etherCON connectors, support for MA NET,ARTNET Signal
3USB ports,1 DVI/OUTPUT(Extra touch screen),External wireless keyboard& mouse
MIDI IN/OUT ,LTC/SMPTE TIME CODE,MIC IN,SOUND INPUT/OUTPUT,
With UPS
Individually backlight silent (clickless) keys
4th intel I5 CPU,120G SSD,8G RAM
WIN7 64 BIT system inside
Support Stage 3D effect simulation,Real-time simulation of the scene
POWER:100-250AC,50/60HZ,,200VA

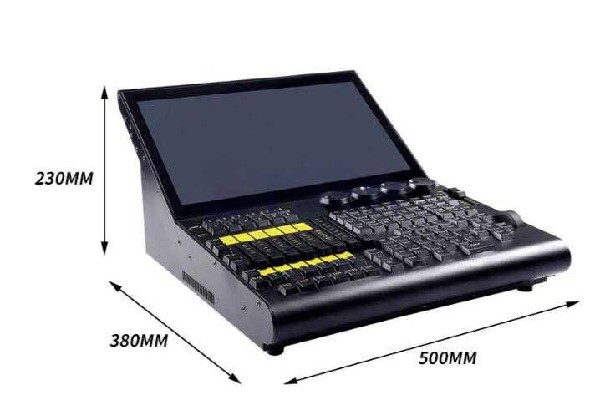

Controller Dimensions: 50*38*23CM,

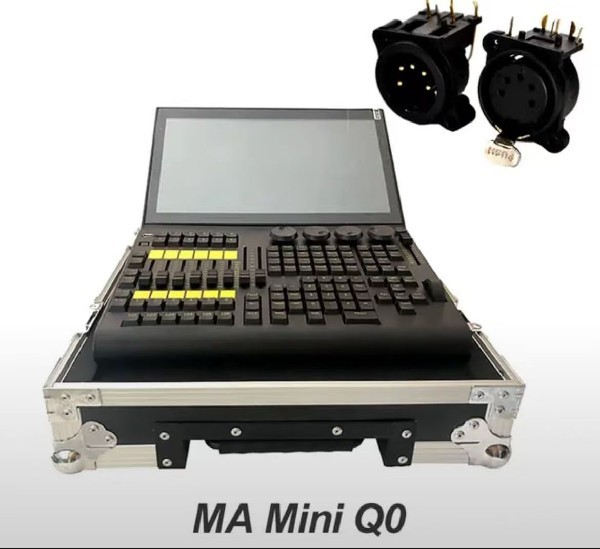

flight case dimensions:56*52*38CM
NW:9.5kg, GW:26kg
