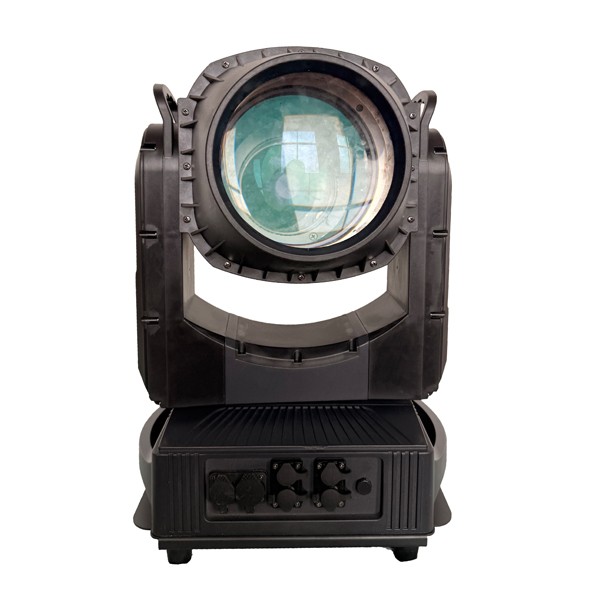

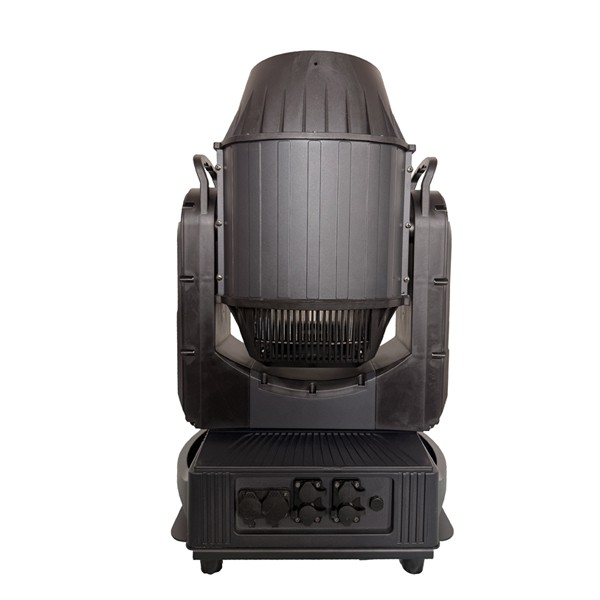

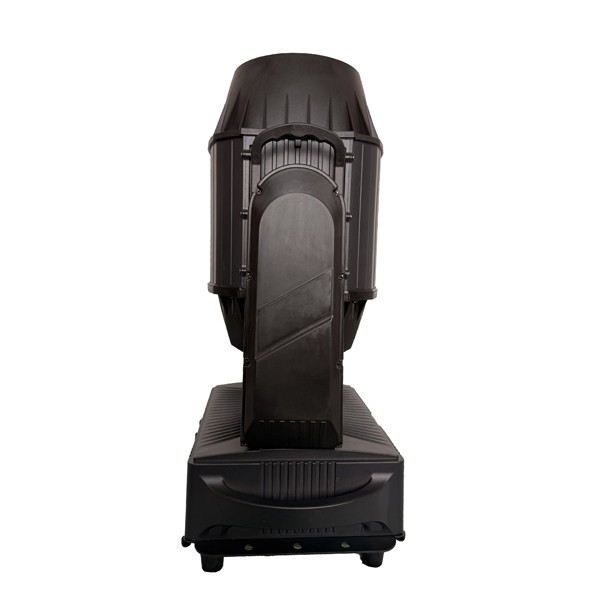

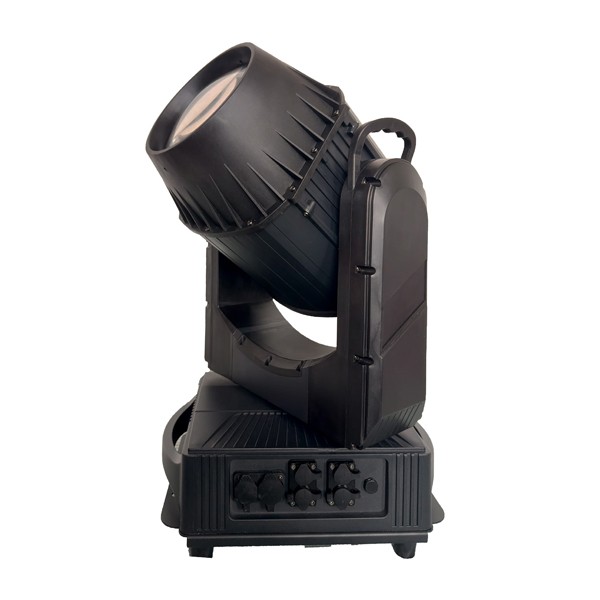

Outdoor waterproof ADJ Vizi IP66 580W LED Beam Moving Head Light LM-580B
Electrical parameters:
Voltage: 100V~240V AC, 50/60Hz
Power: 580W @ 220V
Power factor: PF>0.9
Light source specification:
Light source:400W high brightness Module LED
Color temperature:6500K-7000K
Life time:50000 hours
colour:
1 color wheel: 14 colors + white,half-color rainbow effect

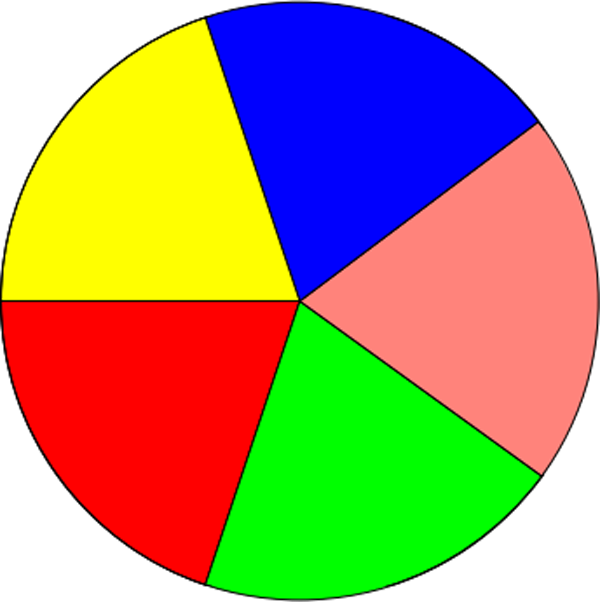

2.Independent multi-color wheell

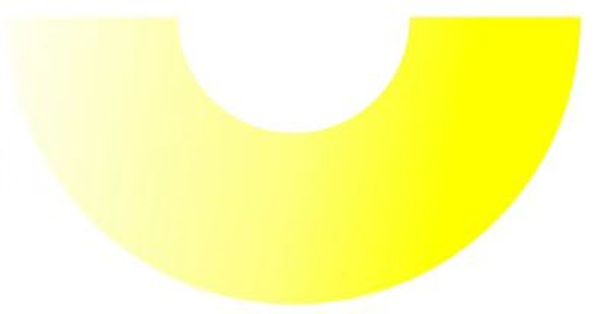

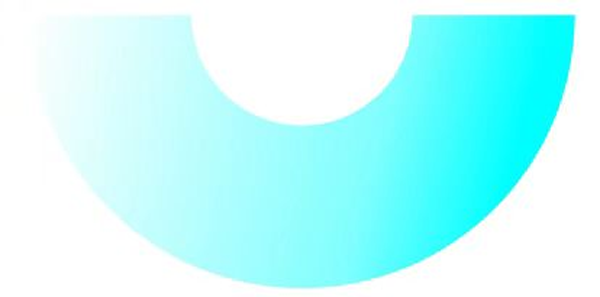

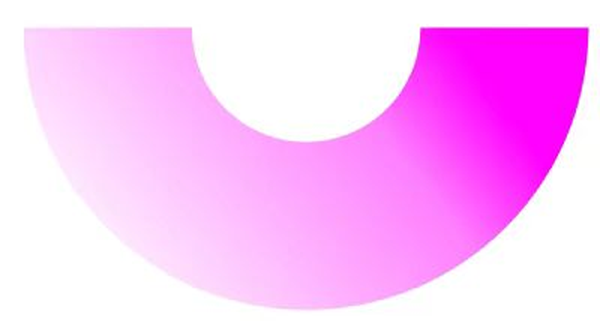

2.Linear CMY function, color can be adjusted;
Can be mixed to make the color richer.

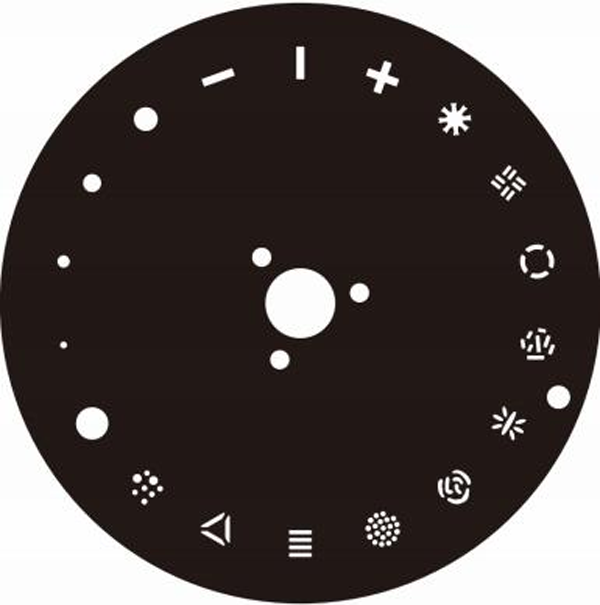

Gobo wheel:
1.1 fixed gobo wheel:13 gobos + white+4 beam
Prism:
2pcs prism, dual-direction rotation
Focus:
DMX linear focus adjustment, super smooth focus adjustment.
Strobe/Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming
Frost:
Independent frost lens, softer light
Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540°
vertical: 270°

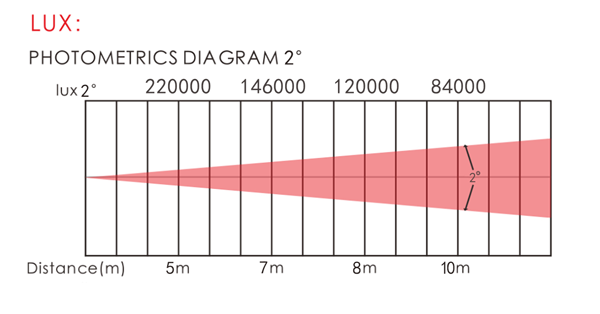

Beam Angle:2°
Control mode:
DMX512 signal
20/24CH channel mode
Other functions:
Horizontal and vertical speed adjustable
Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime
Modular structure for easy maintenance
Color screen with Chinese and English menus.
Displays DMX values for each channel.
The screen automatically rotates according to the lighting fixture's hanging direction.
Features an automatic error reporting function.
Protection level:
Protection grade: IP66
Net weight: 22.0kg
Gross weight: 26.0kg

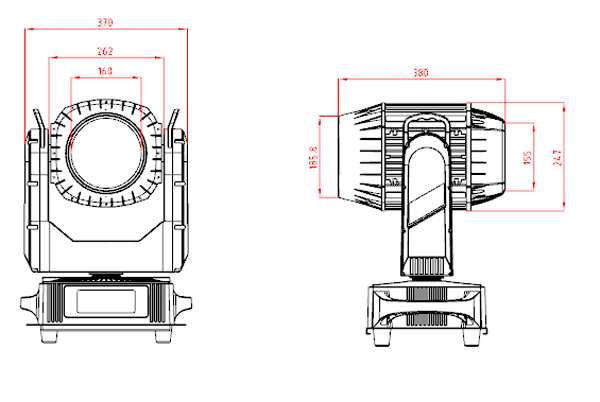

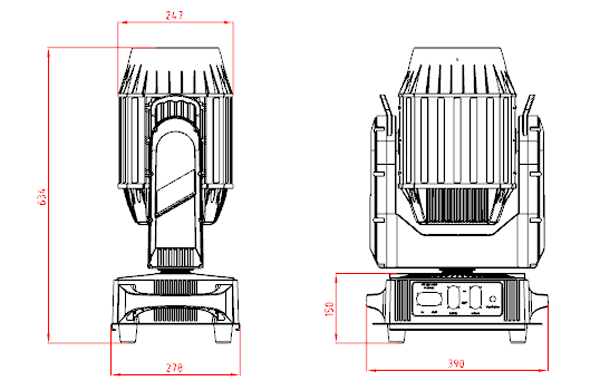

packing size: (mm)520(L)*350(W)*860(H)
Working temperature:
Maximum ambient temperature 50°C
