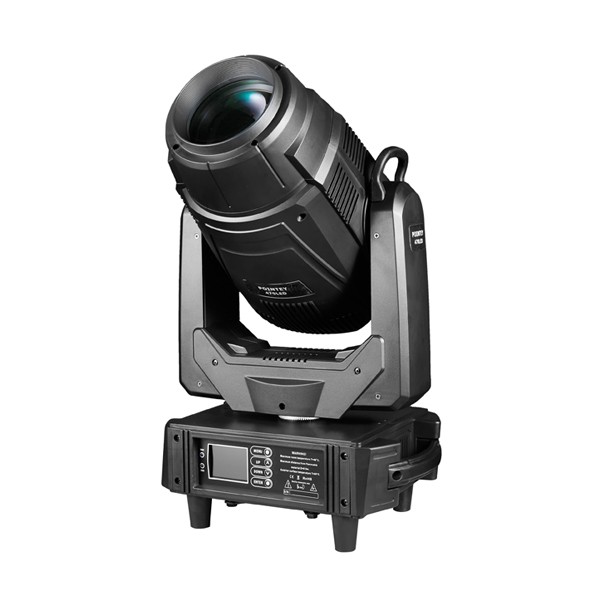

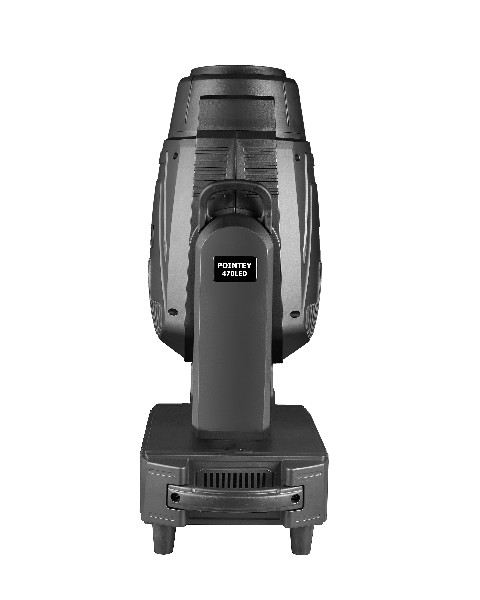

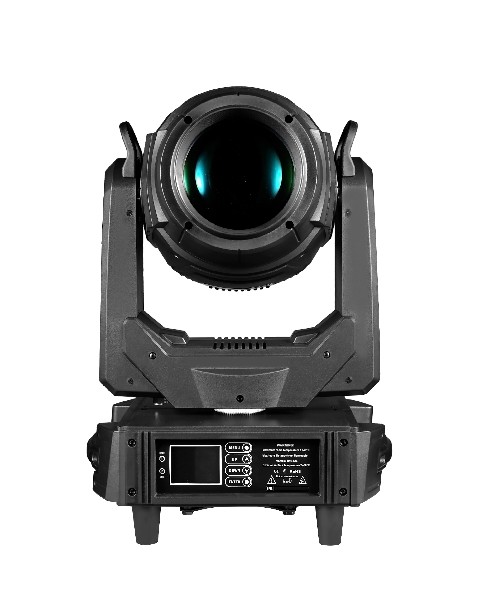

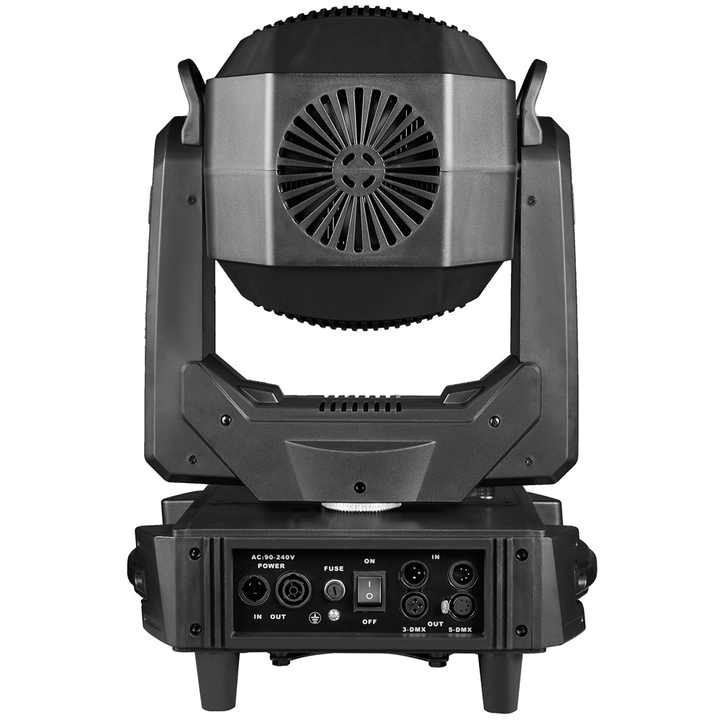

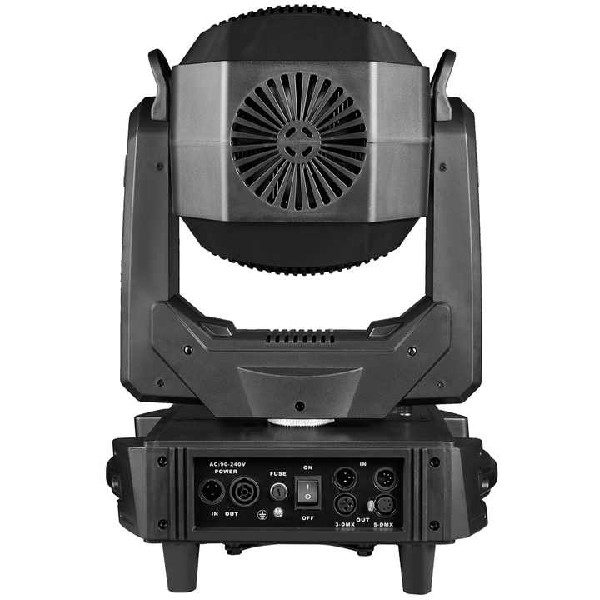

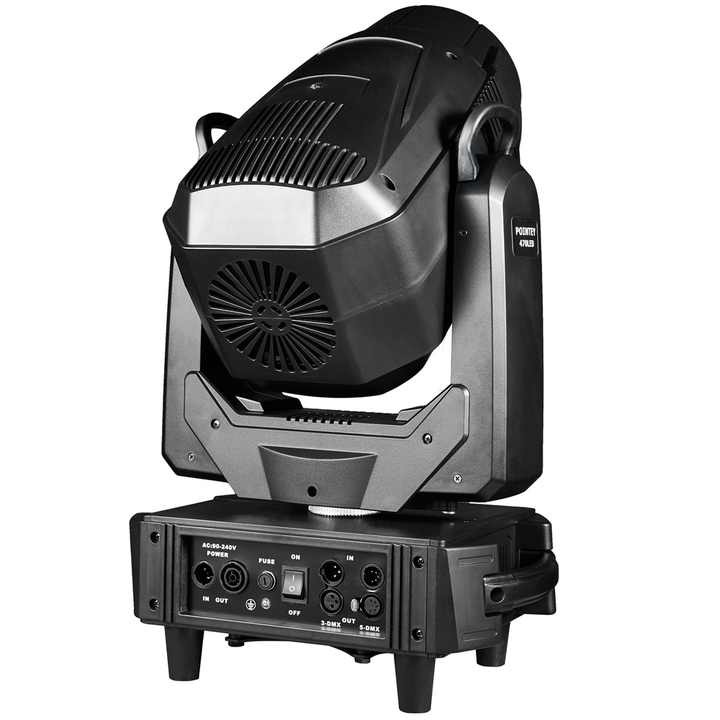

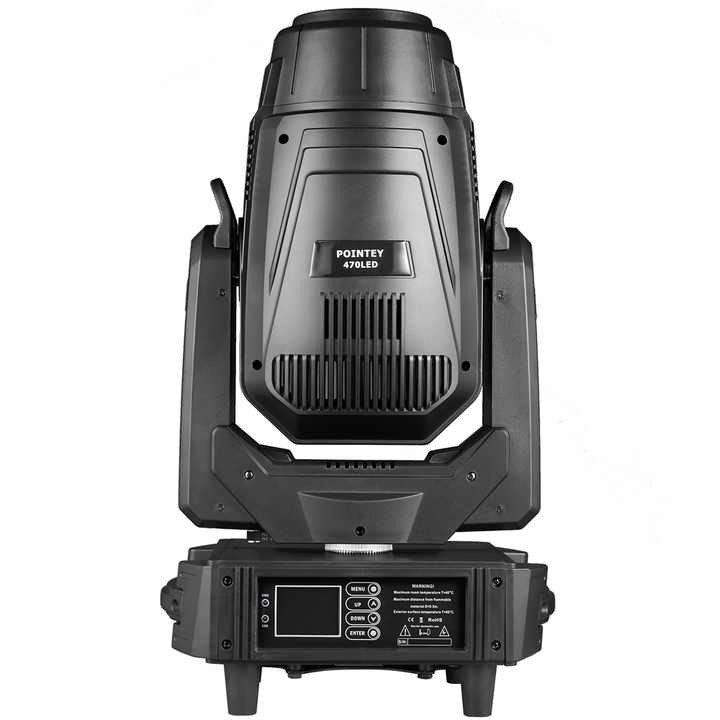

POINTEY 470W Mega Pointe Led Beam Spot Wash 3in1 CMY Hybrid Moving Head Light LM-544
Electrical parameters:
Voltage: 100V~240V AC, 50/60Hz
Power: 500W @ 220V
Power factor: PF>0.9
Light source:400W high brightness Module LED
Color temperature:7500K-7500K
Life time:50000 hours
colour:
1 color wheel: 13 colors + white
2.With C M Y function, color can be adjusted;
Can be mixed to make the color richer.

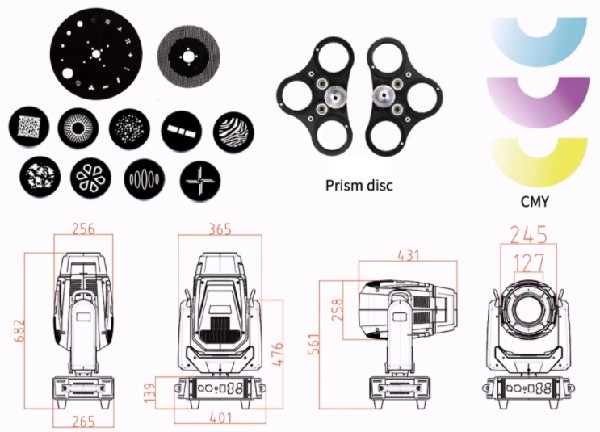

Gobo wheel:
1. 1 rotating gobo wheel: 9 gobos + white
The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate
2. 1 fixed gobo wheel:10 gobos + white+4 beam
Prism:
6pcs prism
Focus:
DMX linear focus adjustment, super smooth focus adjustment.
Strobe/Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming
Frost:
Independent frost lens, softer light
Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540°
vertical: 270°

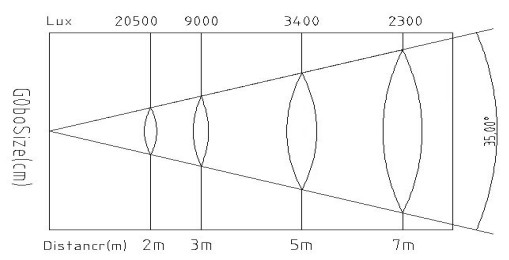

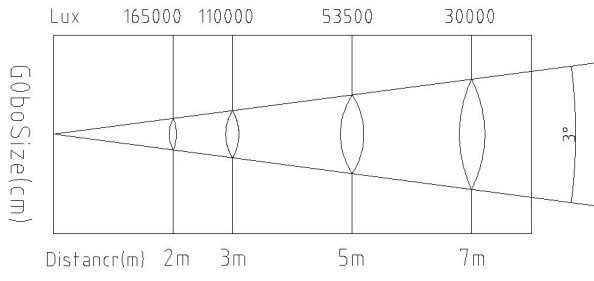

Beam Angle:3-35°
Working temperature:
Maximum ambient temperature 50°C
Control mode:
DMX512 signal
39/34CH channel mode
Other functions:
Horizontal and vertical speed adjustable
Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime
Modular structure for easy maintenance
Protection grade: IP20
product size: 400*260*682 mm
Net weight: 24.25kg
packing size: 500(L)*345(W)*835(H)mm
Gross weight: 29.5kg
