Description

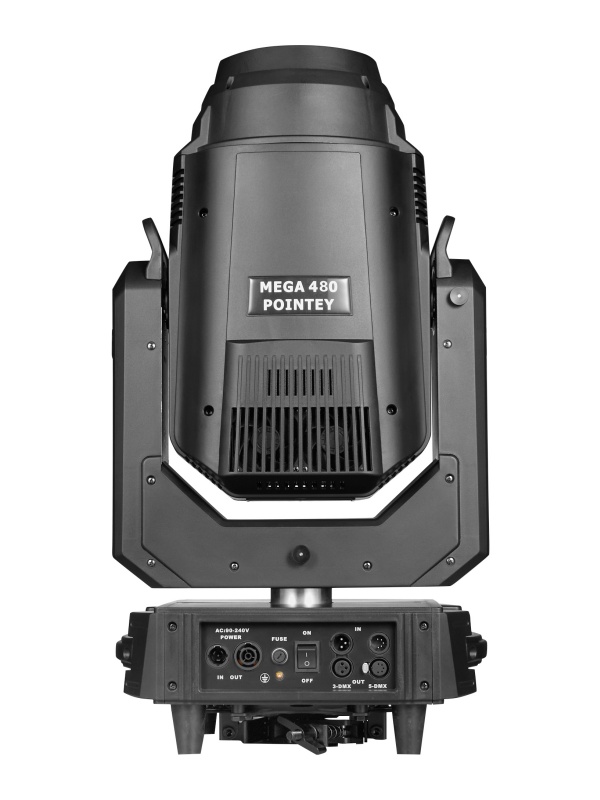

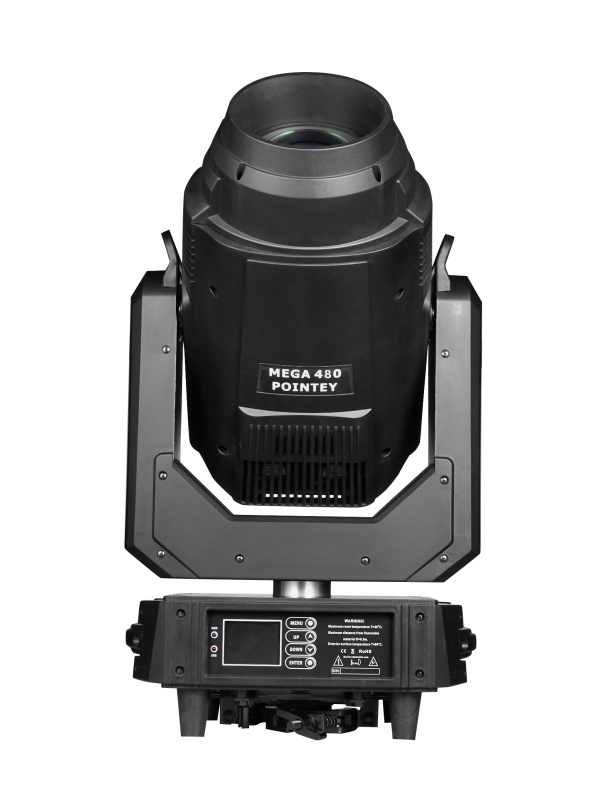

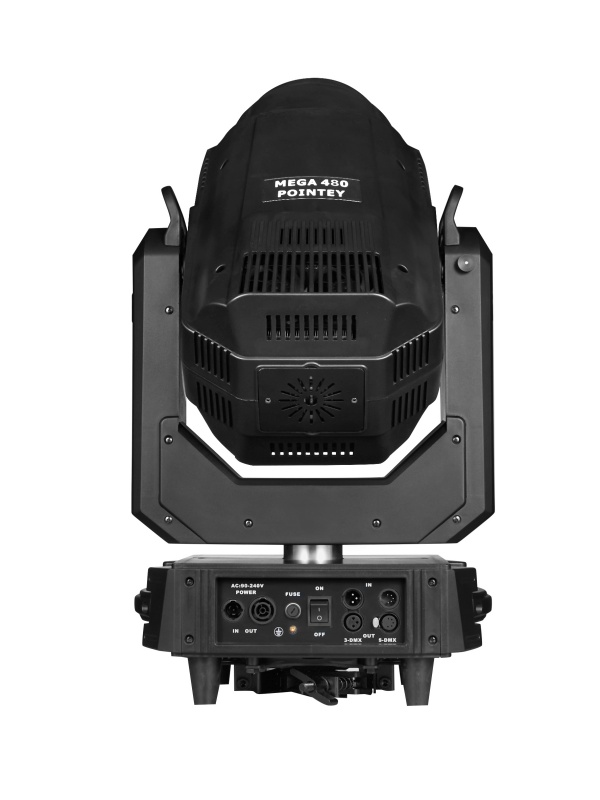

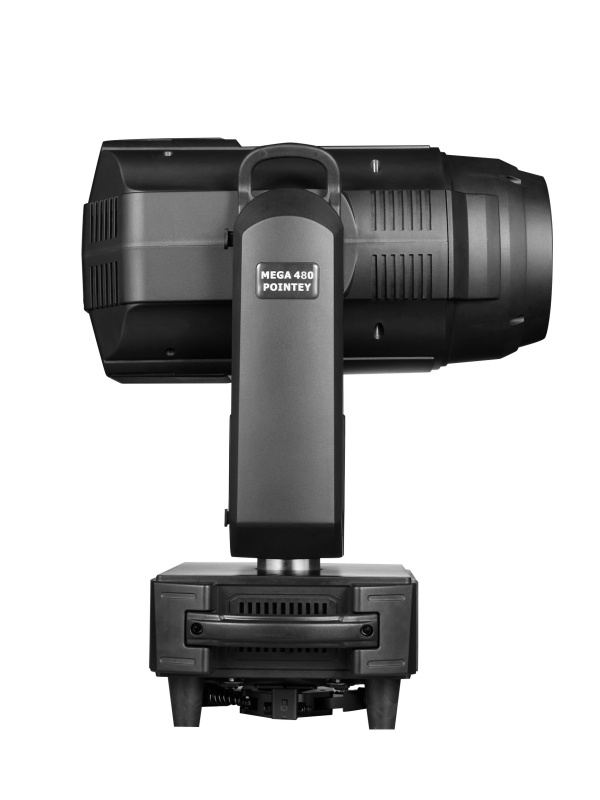

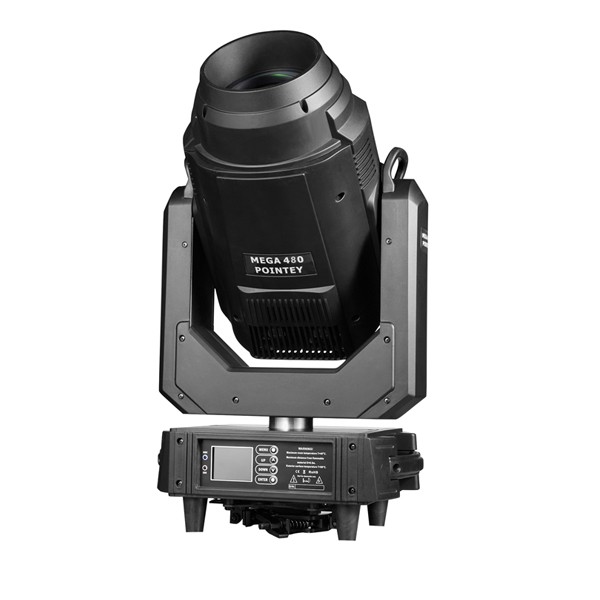

POINTEY MEGA Philips 480W Moving Head Light LM-545
Electrical parameters:
Voltage: 100V~240V AC, 50/60Hz
Power: 580W @ 220V
Light source specification:
Light source:Philips 480W bulb
Color temperature:8000K
Life time:2000H
colour:
1 color wheel: 13 colors + white

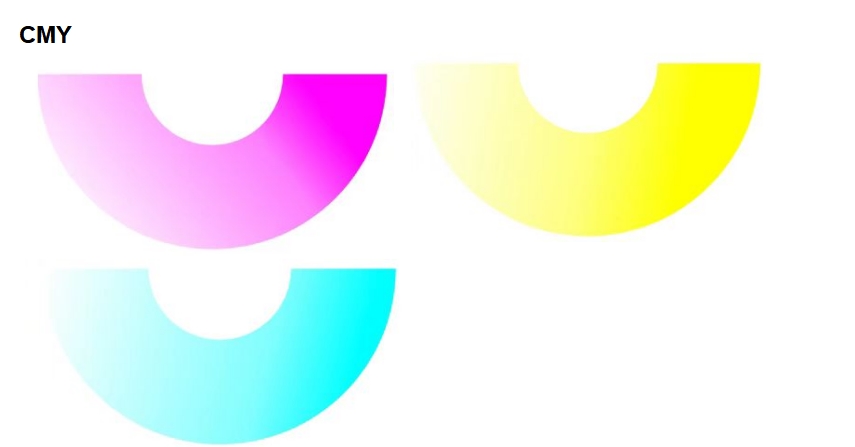

2.With C M Y function, color can be adjusted;
Can be mixed to make the color richer.

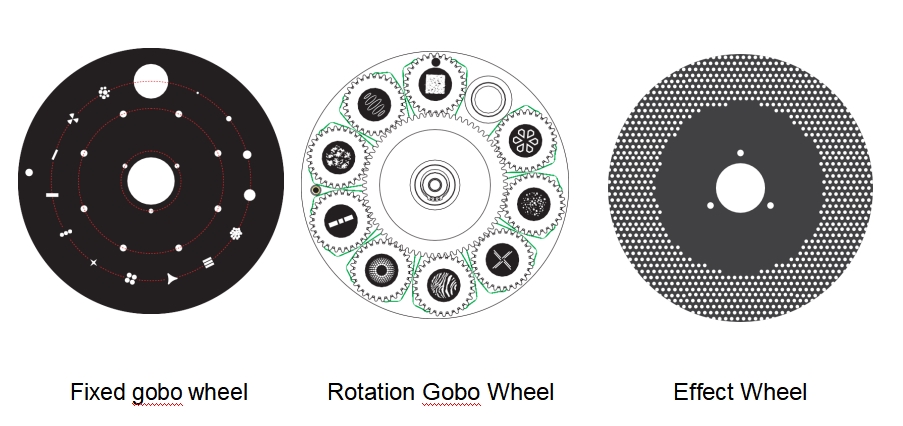

Gobo wheel:
1.1 rotating gobo wheel: 9 gobos + white
The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate
2.1 fixed gobo wheel:10 gobos + white+4 beam
Prism:
6pcs prism
Focus:
DMX linear focus adjustment, super smooth focus adjustment.
Strobe/Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming
Frost:
Independent frost lens, softer light
Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540°
vertical: 270°
Beam Angle:3-35°
Control mode:DMX512 signal 39/34CH channel mode
Other functions:
Horizontal and vertical speed adjustable
Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime
Modular structure for easy maintenance
Protection level:
Protection grade: IP20
Working temperature:
Maximum ambient temperature 50°C
packing size: 53*39*93cm
Electrical parameters:
Voltage: 100V~240V AC, 50/60Hz
Power: 580W @ 220V
Light source specification:
Light source:Philips 480W bulb
Color temperature:8000K
Life time:2000H
colour:
1 color wheel: 13 colors + white
2.With C M Y function, color can be adjusted;
Can be mixed to make the color richer.
Gobo wheel:
1.1 rotating gobo wheel: 9 gobos + white
The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate
2.1 fixed gobo wheel:10 gobos + white+4 beam
Prism:
6pcs prism
Focus:
DMX linear focus adjustment, super smooth focus adjustment.
Strobe/Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming
Frost:
Independent frost lens, softer light
Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540°
vertical: 270°
Beam Angle:3-35°
Control mode:DMX512 signal 39/34CH channel mode
Other functions:
Horizontal and vertical speed adjustable
Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime
Modular structure for easy maintenance
Protection level:
Protection grade: IP20
Working temperature:
Maximum ambient temperature 50°C
packing size: 53*39*93cm
Gross weight: 29.5KG
