Description

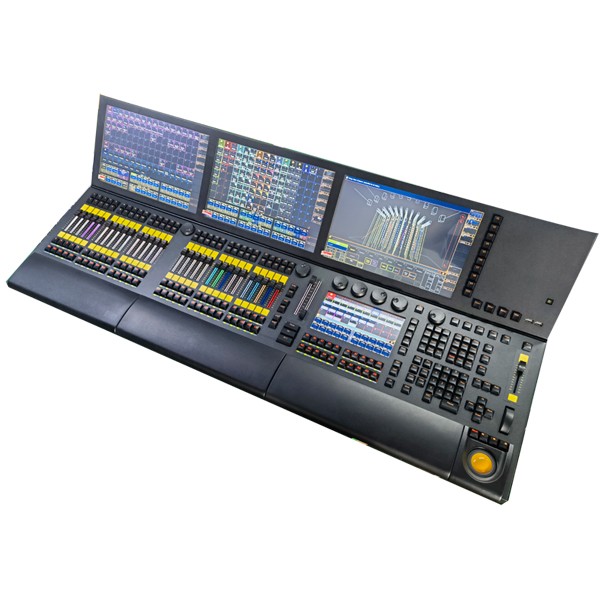

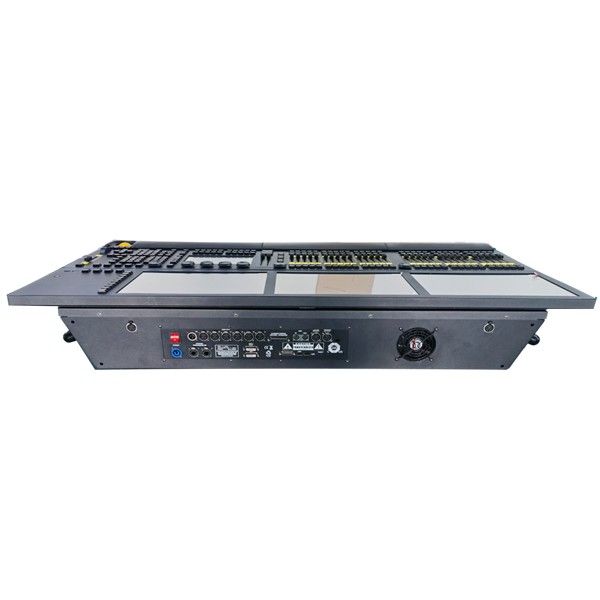

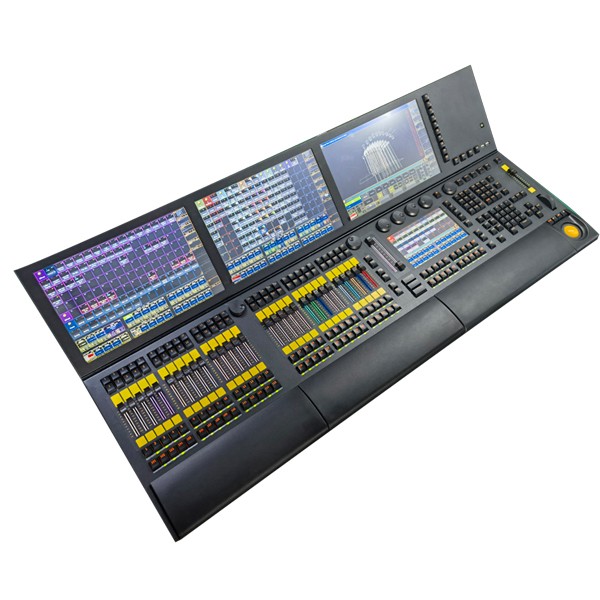

RGB ELECTRIC FADER MA2 FULL SET DMX Controller LC-8029
Linux system platform RGB backlight touch sensing electric push rod
Linux operating system, version upgrade arbitrarily
3 15.4 -inch full -view full -angle industrial touch screen, electric adjustment visual angle
1 9 -inch touch screen, built -in independent graphics card, can connect 2 touch screens outside
Industrial main board, i5CPU, 8G memory, 128G solid state hard disk
6 DMX output ports, 1 composite input port (which can be set as output)
Connection with NPU can support up to 65536 channel parameters
30 RGB backlight touch sensing electric push rod
2 RGB backlight A/B electric push rod
80 execution program buttons
1 general control electric push rod, 1 light wheel
1 controllable XY shaft high -precision imported trajectory ball
7 high -precision wear -resistant optical encoders (with PUSH function)
2 Gigabit network ports, support MA Net, Artnet and other signals
5 USB interfaces, 2 worklight interfaces
MIDI input output interface and LTC/SMPTE timed code
Support multiple online backups, support mobile phone and iPad control
Built -in 2 drawers, built -in adjustable yellow backlight mechanical keyboard
Wide pressure power supply 100V-240V, built-in uninterrupted power supply (UPS)
Support RDM function
【size】
136*90*37cm
【weight】
Linux system platform RGB backlight touch sensing electric push rod
Linux operating system, version upgrade arbitrarily
3 15.4 -inch full -view full -angle industrial touch screen, electric adjustment visual angle
1 9 -inch touch screen, built -in independent graphics card, can connect 2 touch screens outside
Industrial main board, i5CPU, 8G memory, 128G solid state hard disk
6 DMX output ports, 1 composite input port (which can be set as output)
Connection with NPU can support up to 65536 channel parameters
30 RGB backlight touch sensing electric push rod
2 RGB backlight A/B electric push rod
80 execution program buttons
1 general control electric push rod, 1 light wheel
1 controllable XY shaft high -precision imported trajectory ball
7 high -precision wear -resistant optical encoders (with PUSH function)
2 Gigabit network ports, support MA Net, Artnet and other signals
5 USB interfaces, 2 worklight interfaces
MIDI input output interface and LTC/SMPTE timed code
Support multiple online backups, support mobile phone and iPad control
Built -in 2 drawers, built -in adjustable yellow backlight mechanical keyboard
Wide pressure power supply 100V-240V, built-in uninterrupted power supply (UPS)
Support RDM function
【size】
136*90*37cm
【weight】
Gross weight: 98kg
