Description

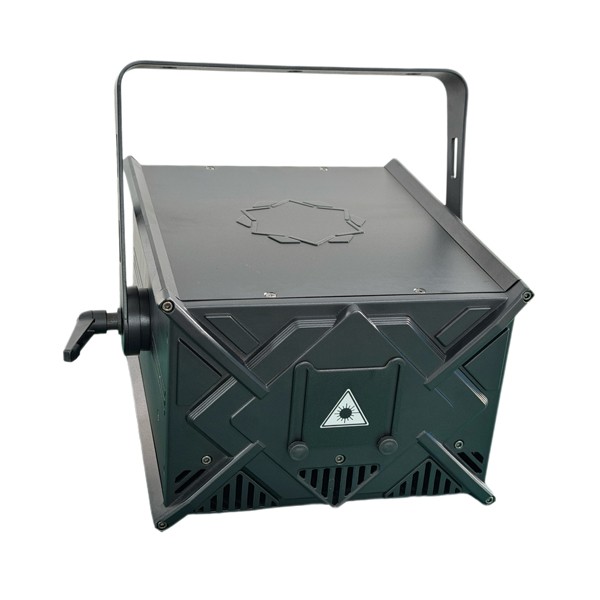

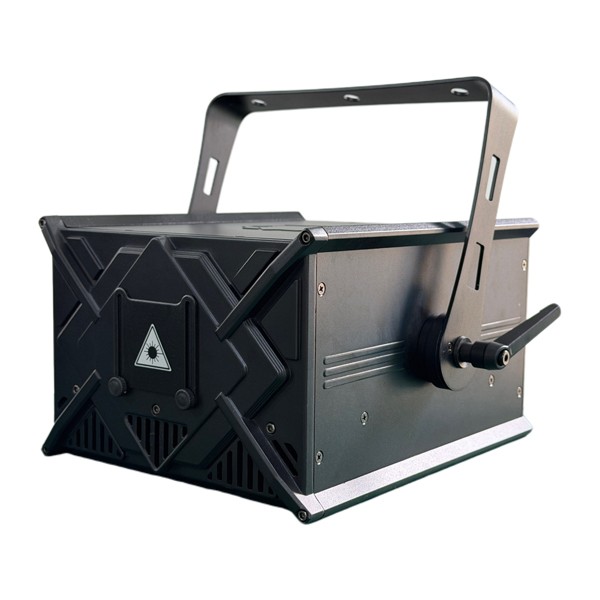

10 Watt 15W 20W RGB Full Color Laser beam light L-819
Light source：
brand: Nichia (imported from Japan)
Light source ratio power: 8w-10W-15W-20W
R: 3W @ 638nm G: 3W @ 520nm B: 4W @ 450nm
Power supply voltage: 110-240v; 50/60 Hz
Laser color: full color Divergence angle: < 1.5 mrad
Modulation: Analog modulation/TTL
modulationBeam angle: Max 50 °
Galvanometer speed: 25Kkps
Galvanometer frame rate: 30-120 frame rate adjustable speed
Control: DMX512, voice control, self-propelled, computer ILDA interface
Laser Show: Text/Pattern/Animation/Beam/LOGO/LandmarkDMX
special effects: single pattern, which can be used to break pen, strobe, rotate, move, tumble, split picture, gradually draw, change color, change size and other functions.
Function: It can be controlled by pangolin QSFB3/FB4 or laser software such as fire
The ilda control adopts automatic electronic transfer switch, with scanning system error protection and laser shutdown protection
Heat dissipation: air-cooled
Lens reflectivity: > 99%
Working temperature:-20-45 degrees;
Control options: ILDA standard/voice control/self-propelled/DMX512/master-slave
10W single-pack carton dimensions: 37x30x28cm
Total weight: 6.5 kg
10W double-pack carton dimensions: 38.5x31.5x59.5cm
Total weight: 13.5 kg
Custom mold bare unit dimensions: 31x25x17cm
Light source：
brand: Nichia (imported from Japan)
Light source ratio power: 8w-10W-15W-20W
R: 3W @ 638nm G: 3W @ 520nm B: 4W @ 450nm
Power supply voltage: 110-240v; 50/60 Hz
Laser color: full color Divergence angle: < 1.5 mrad
Modulation: Analog modulation/TTL
modulationBeam angle: Max 50 °
Galvanometer speed: 25Kkps
Galvanometer frame rate: 30-120 frame rate adjustable speed

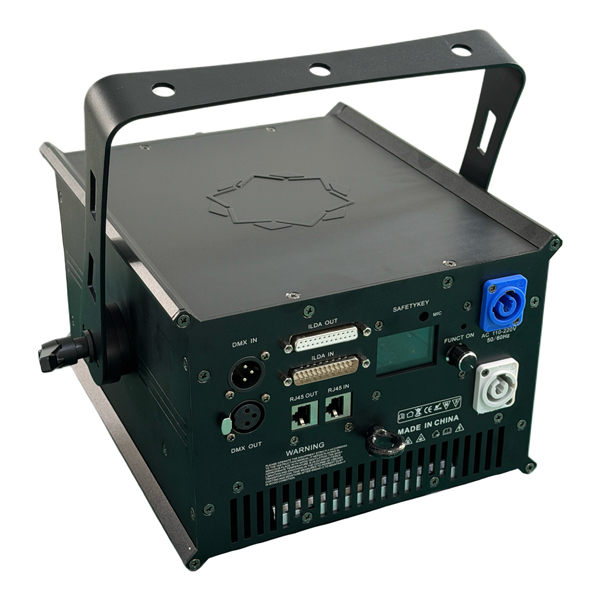

Control: DMX512, voice control, self-propelled, computer ILDA interface
Laser Show: Text/Pattern/Animation/Beam/LOGO/LandmarkDMX
special effects: single pattern, which can be used to break pen, strobe, rotate, move, tumble, split picture, gradually draw, change color, change size and other functions.
Function: It can be controlled by pangolin QSFB3/FB4 or laser software such as fire
The ilda control adopts automatic electronic transfer switch, with scanning system error protection and laser shutdown protection
Heat dissipation: air-cooled
Lens reflectivity: > 99%
Working temperature:-20-45 degrees;
Control options: ILDA standard/voice control/self-propelled/DMX512/master-slave
10W single-pack carton dimensions: 37x30x28cm
Total weight: 6.5 kg
10W double-pack carton dimensions: 38.5x31.5x59.5cm
Total weight: 13.5 kg
Custom mold bare unit dimensions: 31x25x17cm
Net weight: 5.5 kg
