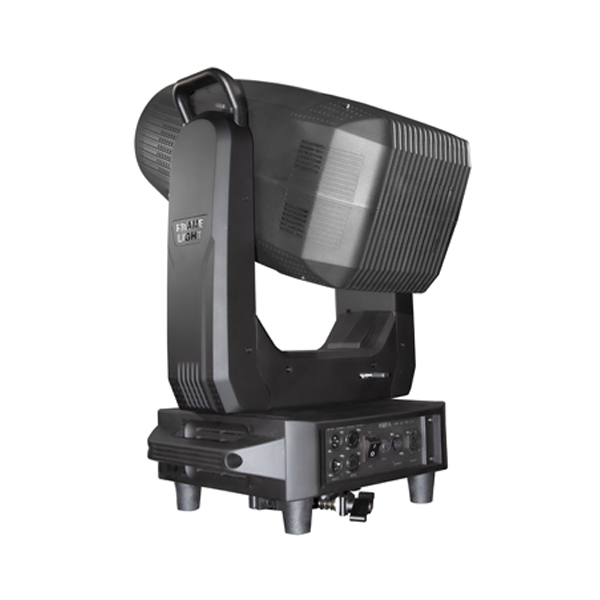

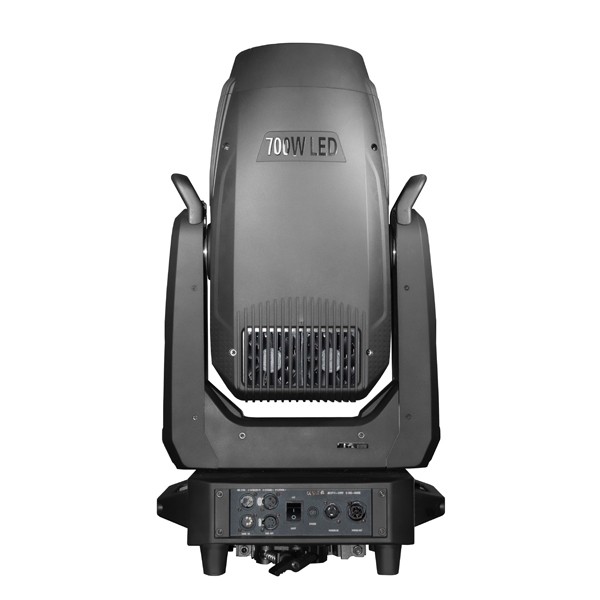

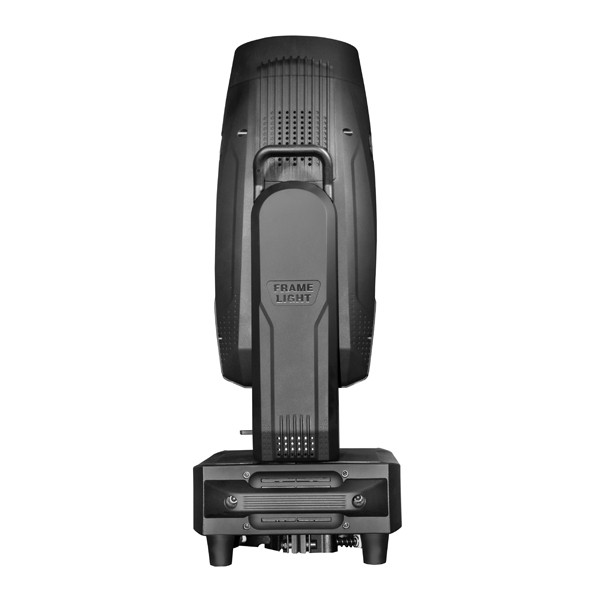

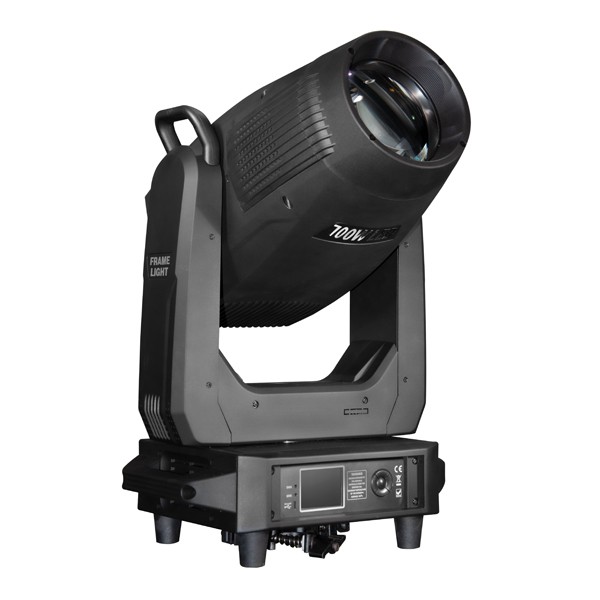

Mini700W LED BSWF PROFILE Moving Head stage light LM-700MINI
Product Description
Input voltage:Ac100-240V,50/60Hz
Rated power:950V
Light source: 652w LED module
LED life: 20,000 hours2
Color temperature:6500k
Caliber 138mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>70, high CRI mode Ra>90
Signal interface: three pin XLR (five pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channelmode:34CHs-38CHs-55CHs
Display system: 2,8 inch touch LCD display, Chinese and English display,180-degree

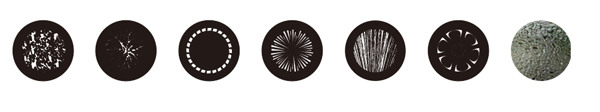

Rotating Gobo wheel:7plug in gobos +open
rotation

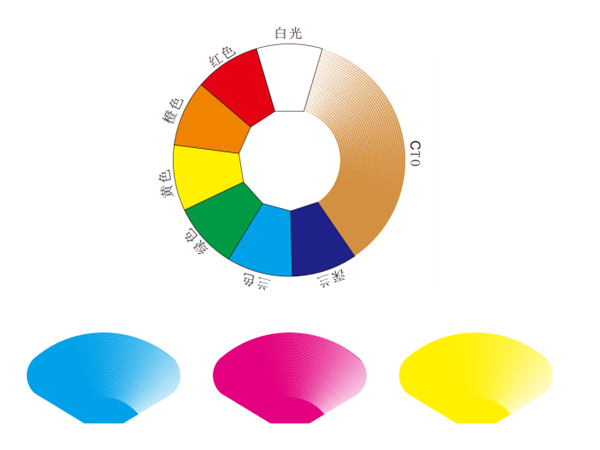

Fixed color 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2500K-6500K linear adjustment
Prisms: Rotating 4 faced prism

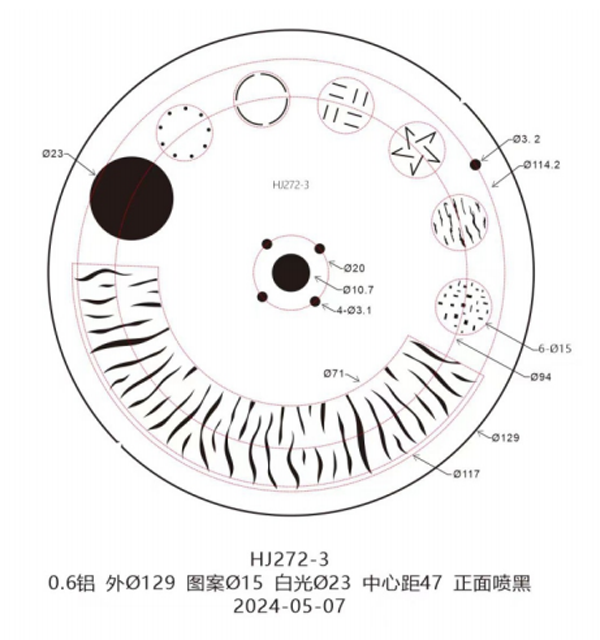

Fixed Gobo wheel: 6 fixed gobos+open position ，outer diameter 22.9mm, effective diameter
14mm
Framing system:4 Individually positioned Shutter Blades, each
piece can be closed separately and can be rotated+/_90
Frost system:0-100% linear atomization
Iris system:6%-100% smooth adjustment
Beam Aperture: 4.8°-50°fast motorized linear zoom
Dimming system:0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random
strobe and pulse strobe can be selected
Pan: 540"(16 bit precision scanning)
Tilt: 270"(16 bit precision scanning)
Protection rate:lP20
Working environment:0-45degree

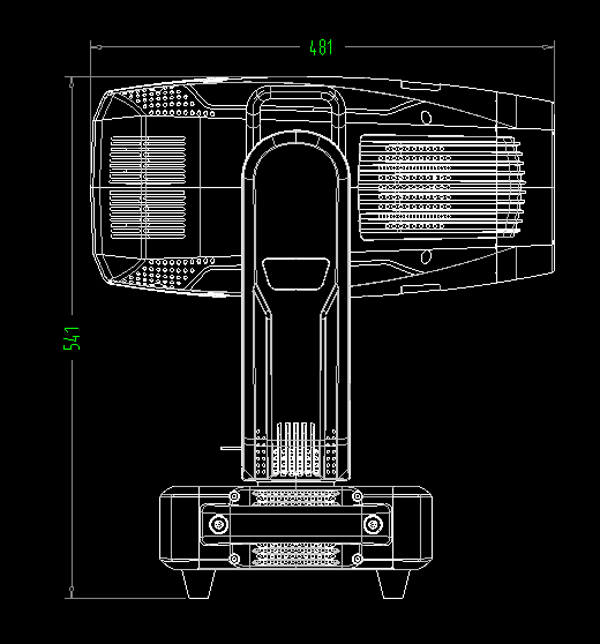

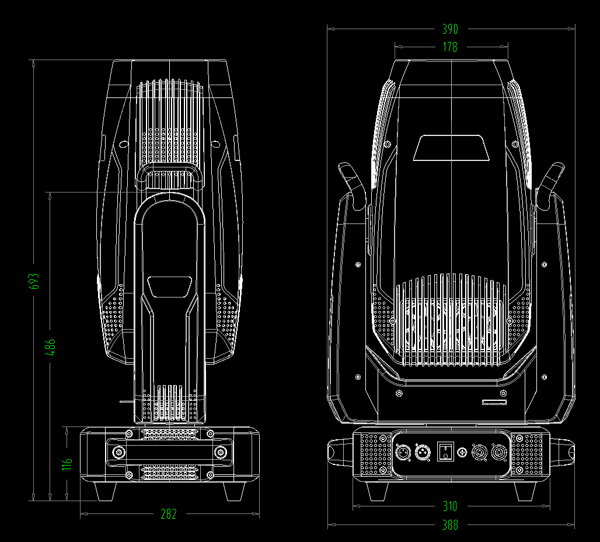

Product Size: 693*388*481mm
Product net weight:28KG
Packing dimensions: 795*360*505mm
Product Description
Input voltage:Ac100-240V,50/60Hz
Rated power:950V
Light source: 652w LED module
LED life: 20,000 hours2
Color temperature:6500k
Caliber 138mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>70, high CRI mode Ra>90
Signal interface: three pin XLR (five pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channelmode:34CHs-38CHs-55CHs
Display system: 2,8 inch touch LCD display, Chinese and English display,180-degree
Rotating Gobo wheel:7plug in gobos +open
rotation
Fixed color 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2500K-6500K linear adjustment
Prisms: Rotating 4 faced prism
Fixed Gobo wheel: 6 fixed gobos+open position ，outer diameter 22.9mm, effective diameter
14mm
Framing system:4 Individually positioned Shutter Blades, each
piece can be closed separately and can be rotated+/_90
Frost system:0-100% linear atomization
Iris system:6%-100% smooth adjustment
Beam Aperture: 4.8°-50°fast motorized linear zoom
Dimming system:0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random
strobe and pulse strobe can be selected
Pan: 540"(16 bit precision scanning)
Tilt: 270"(16 bit precision scanning)
Protection rate:lP20
Working environment:0-45degree
Product Size: 693*388*481mm
Product net weight:28KG
Packing dimensions: 795*360*505mm
Gross weight: 32 KG
