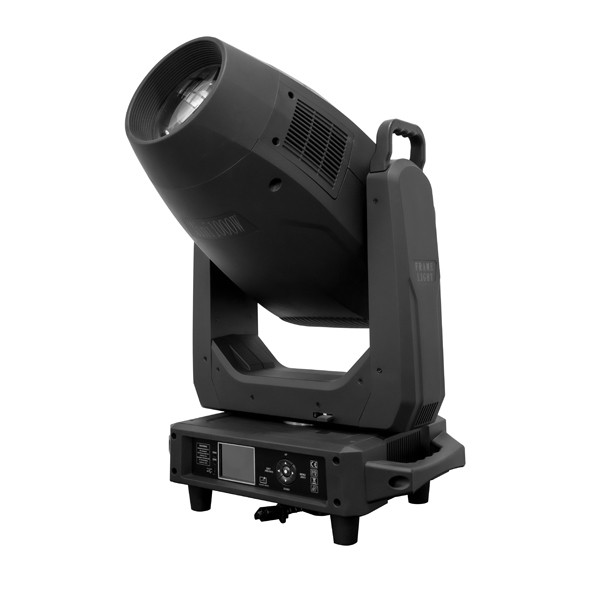

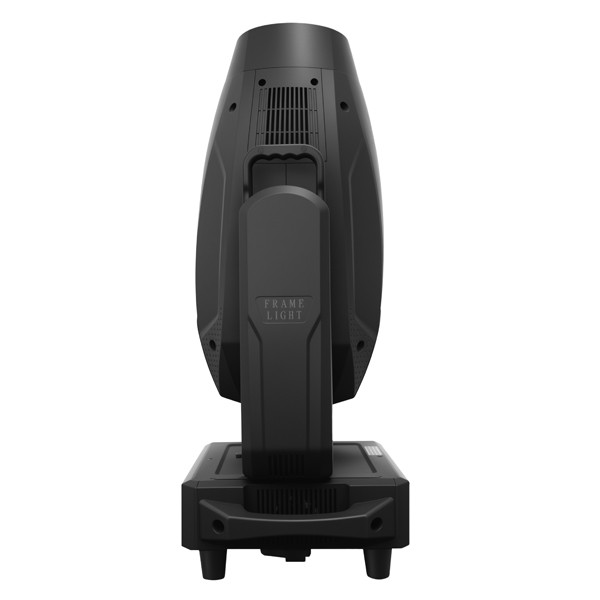

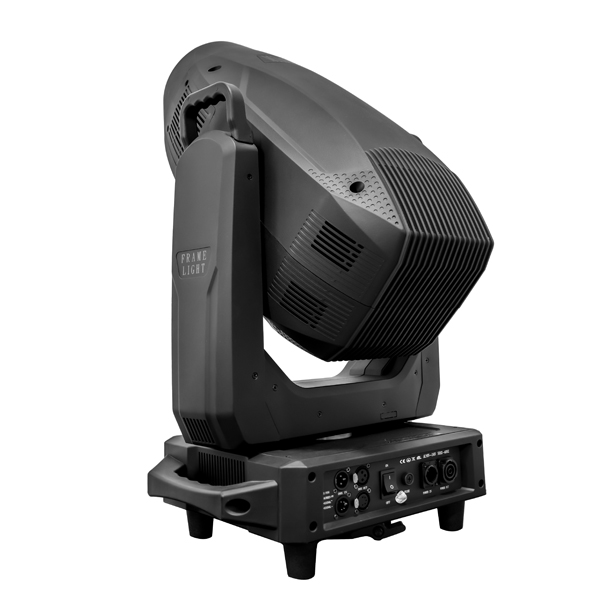

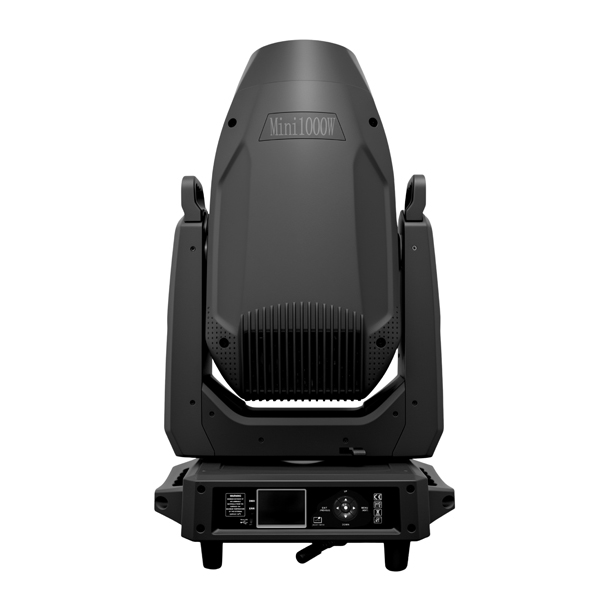

Mini 1000W LED BSWF Moving head profile light LM-1000MINI
Product Introduction
Input voltage: AC100-240V, 50/60Hz
Rated power: 1150W
Light source: 800W LED module
LED life: 20,000 hours2
Color temperature: 7000K
Caliber: 130mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>70, high CRI mode Ra>90
Luminous flux:24000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CH、42CH、60CH、41CHSame channel as Martin profile（choosable）
Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation

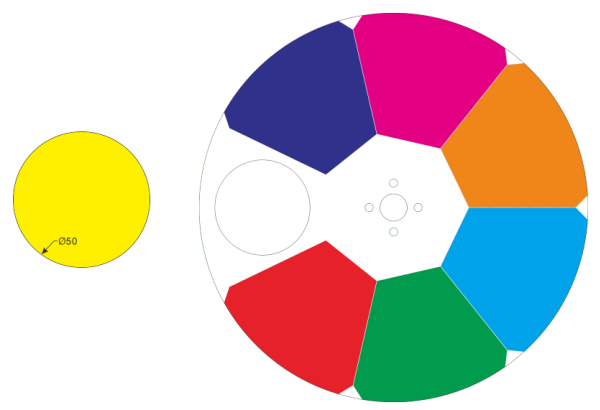

Fixed color: 6 colors + open position

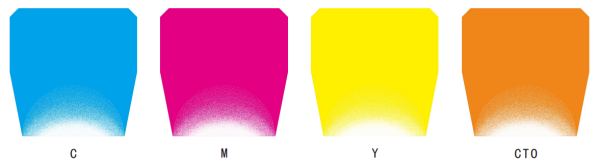

Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2500K-7000K linear adjustment
Prisms: Rotating 4-faced prism+6-faced linear prism, two prisms can be overlaid

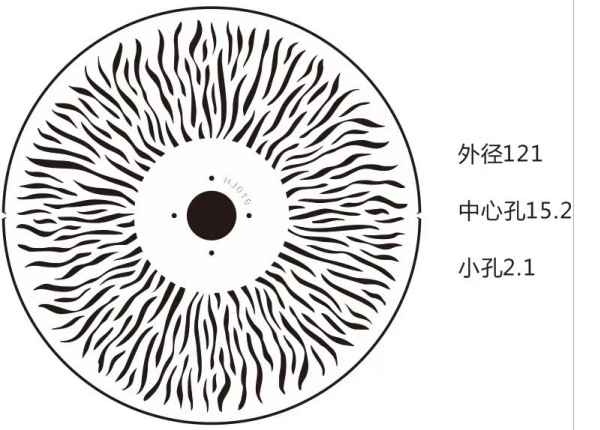

Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling
Rotating Gobo whee
water, etc. Fixed Gobo wheel: 7 plug-in fixed gobos with an outer
Rotating gobo Wheel: 8 gobos (pluggable), (Inner 16mm, outer 25.4mm, thick 1.0mm)
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed
separately and can be rotated +/- 120° Frost system: 0~100% linear atomization
Iris system: 6%~100% smooth adjustment
Beam Aperture: 5°~50° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse
strobe can be selected
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function Protection rate: IP20
Working environment: 0-45℃

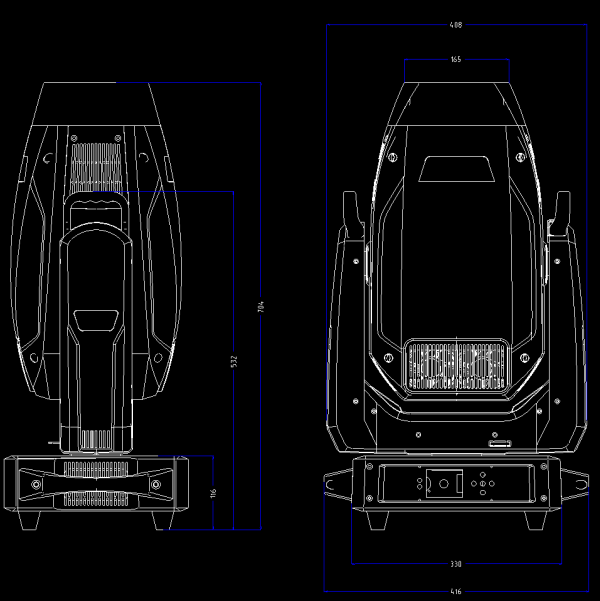

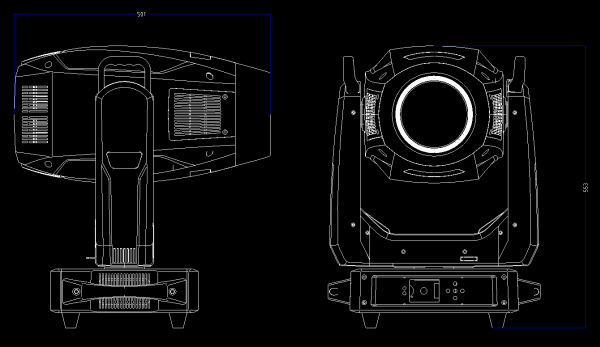

Product size: 703*416*501mm

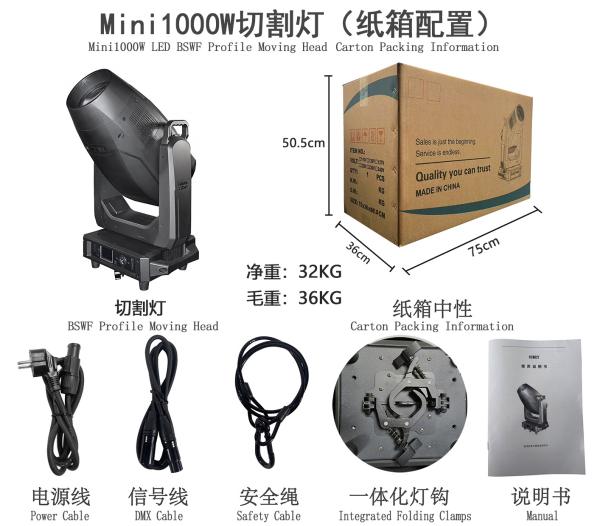

Carton size: 750*360*505mm
Product net weight: 32KG
Product gross weight: 36KG
