Description

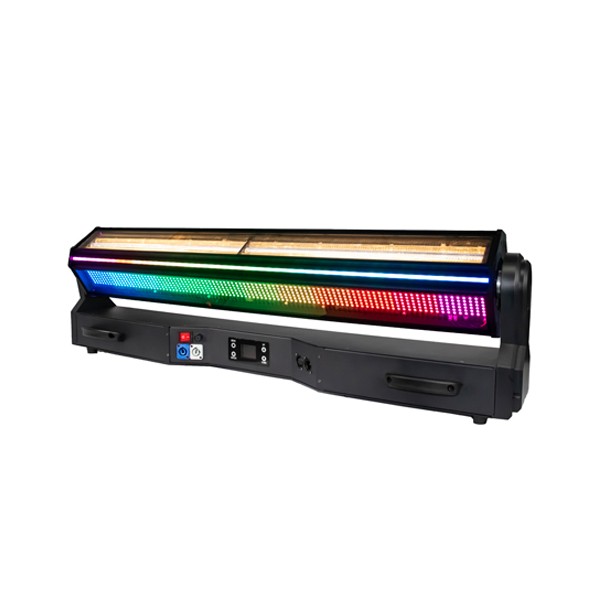

RGBW Swing Bar Effect led moving head Light Golden Dragon Beam Auxiliary Light LM-546
Voltage: AC100~240V 50/60HZ
Power: Light Source:
Beam Golden Yellow: 12*5w;
Beam Auxiliary Light RGB: 48*3*0.2w;
Beam Arrw White: 24*7*0.2w;
Strobe Daylight White: 24*16*0.2w;
Strobe WarmWhite: 48*16*0.2w;
Vintage Warm White: 5*25W;
Vintage RGB Auxiliary Light: 5*(3 34 48)*0.2w;
RGB Wash: 24*32*0.2w;
RGB Light Strip: 4*56*0.3W
ovement: Y16bit; Y-axis 540° Continuous Rotation
Control Mode: DMX512, Auto, Sound Active, Master/Slave, with M function.
Channels: 23CH, 34CH, 80CH, 251CH
Dimming 16bit 0~100% Linear Dimming
Beam Face: 12pcs 5W Golden Yellow Beams; paired with 24-segment RGB chasers on oth sides; 24-segment arrow shuttling in the middle
Strobe Face: 24-segment White Strobe Bars; paired with 24-segment WWhite Strobe Bars on both sides
Vintage Face: 5pcs 25W Vintage Bulbs; Three independent RGB light rings like a custom dynamic light wheel
Wash Face: 24-segment RGB Wash, rich chaser effects
Light Strip: RGB chaser light strips installed at four ends, flowing light line effect
Working Teperature: -25°~ 45°
Strobe Frequency: 1~30HZ
Appearance: Metal, Black
Connectio: DMX512 In/Out / Power In/Out.
IP Rating: IP20
Dimensions: 1050*21*303MM(41.3" x8.4" x11.9")
Weight: 16kg
Product Dimensions: 105*21.4*30.3CM
Net Weight: 16.7KG
