Description

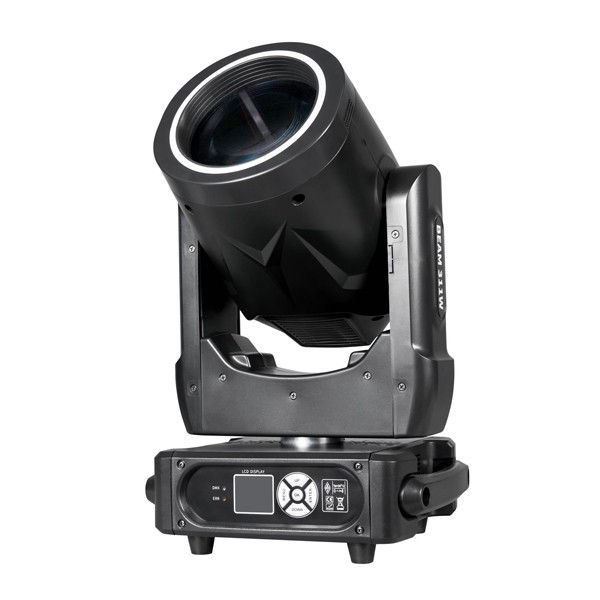

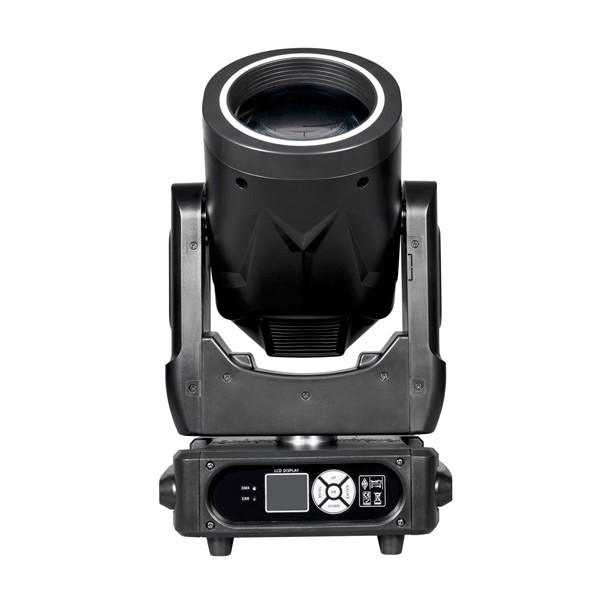

LED Moving Head Beam Lights 311W with ring and powercon in/out LM-311
Technical Specifications:
Total Power: 450W;
Bubble: Customized CR-311W bulb, with electronic or manual on/off control;
Ballast Input: Electronic ballast (380V);
Power Input: AC110-240V, 50/60Hz;
Color Wheel: 14 colors + white light;
Fixed Pattern Wheel: 14 fixed patterns + beam;
Effects: Pattern flow effect, pattern vibration effect, pattern arbitrary angle positioning, pattern clockwise and counterclockwise rotation;
Dual Prism: 8-prism and 8+16+24-prism, both reversible, with seven colors, and can be stacked;
Strobe: Independent strobe channel, 1-10 times/second, built-in macro function;
Dimming: Independent dimming channel; 0-100 linear precision dimming;
Spot angle: 2-3 degrees;
Atomization: Independent linear atomization;
X/Y axis movement: Two-phase high-precision motor, 540° X-axis, 280° Y-axis;
Automatic error correction function: Independent X/Y axis speed adjustment, rotary fine-tuning function, quiet operation, and fast speed;
X/Y axis resolution: 8/16 bit;
Control and programming: 16 or 22 standard DMX512 channels;
Display: Color screen display;

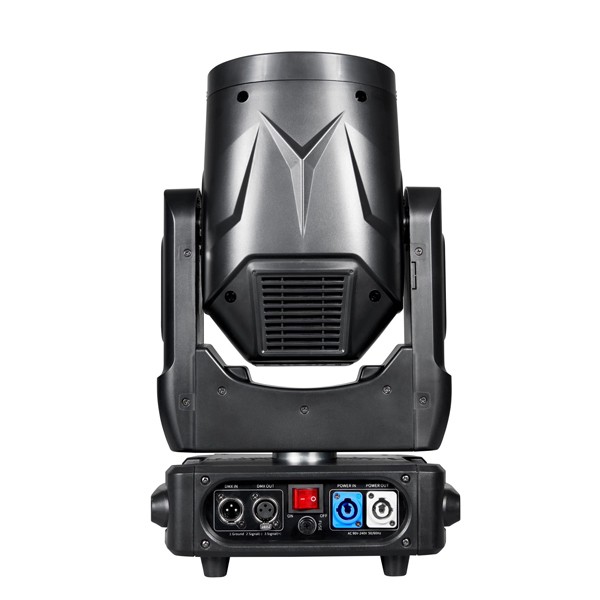

Signal: 3-pin or 5-pin XLR connector signal input and output;
Net weight: 11.65Kg,
Weight including packaging: 12.5 kg

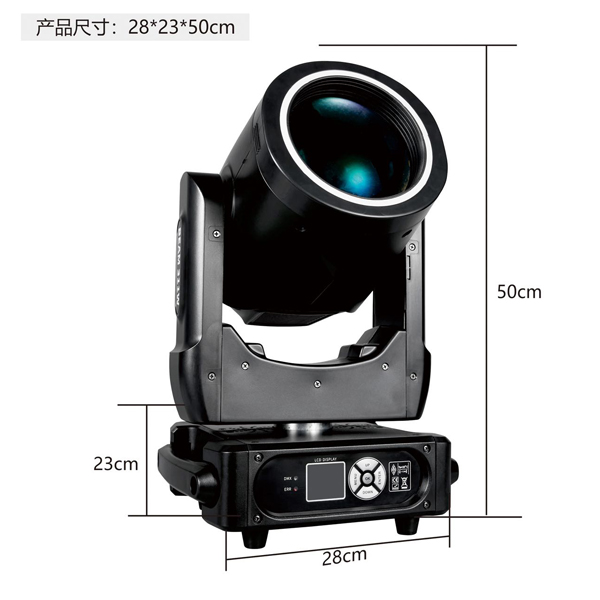

Product dimensions: 28x23x50cm
Technical Specifications:
Total Power: 450W;
Bubble: Customized CR-311W bulb, with electronic or manual on/off control;
Ballast Input: Electronic ballast (380V);
Power Input: AC110-240V, 50/60Hz;
Color Wheel: 14 colors + white light;
Fixed Pattern Wheel: 14 fixed patterns + beam;
Effects: Pattern flow effect, pattern vibration effect, pattern arbitrary angle positioning, pattern clockwise and counterclockwise rotation;
Dual Prism: 8-prism and 8+16+24-prism, both reversible, with seven colors, and can be stacked;
Strobe: Independent strobe channel, 1-10 times/second, built-in macro function;
Dimming: Independent dimming channel; 0-100 linear precision dimming;
Spot angle: 2-3 degrees;
Atomization: Independent linear atomization;
X/Y axis movement: Two-phase high-precision motor, 540° X-axis, 280° Y-axis;
Automatic error correction function: Independent X/Y axis speed adjustment, rotary fine-tuning function, quiet operation, and fast speed;
X/Y axis resolution: 8/16 bit;
Control and programming: 16 or 22 standard DMX512 channels;
Display: Color screen display;
Signal: 3-pin or 5-pin XLR connector signal input and output;
Net weight: 11.65Kg,
Weight including packaging: 12.5 kg
Product dimensions: 28x23x50cm
Packaging dimensions: 50*34*36cm
