Description

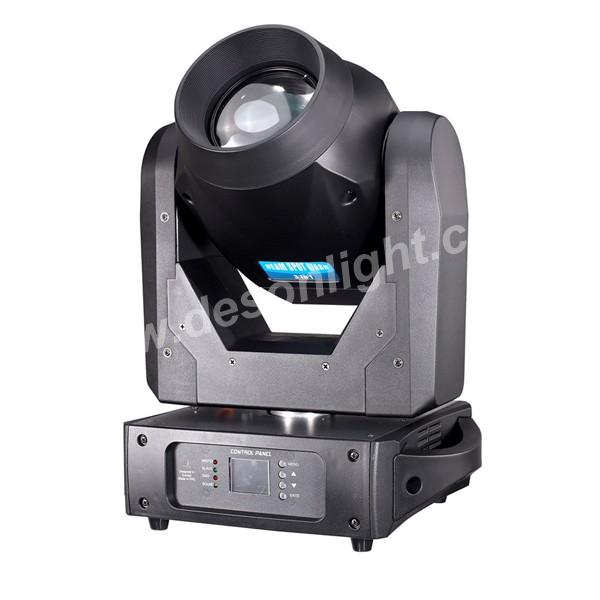

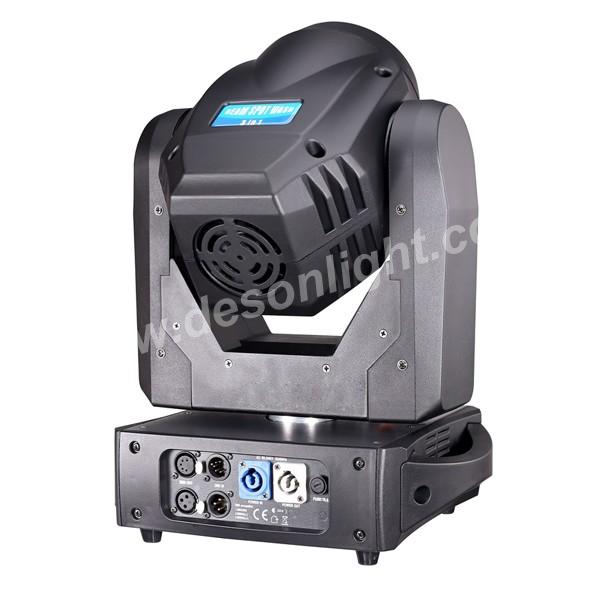

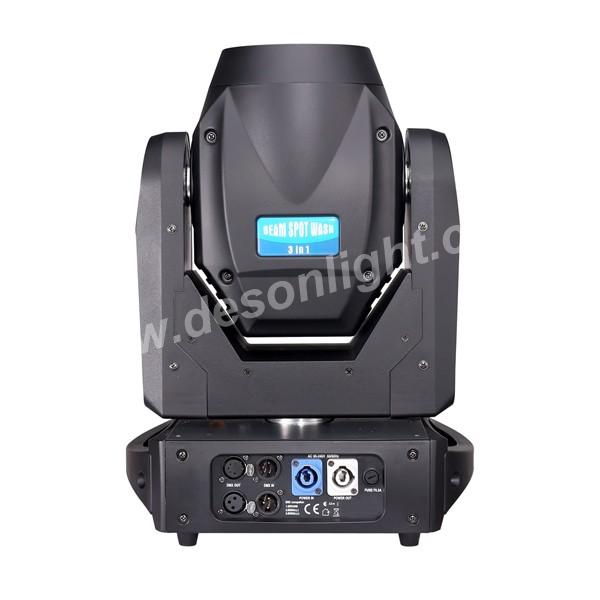

230W LED 3 IN 1 SPOT,BEAM,WASH MOVING HEAD LM-230BSW
Light Source: 1 x 230W LED

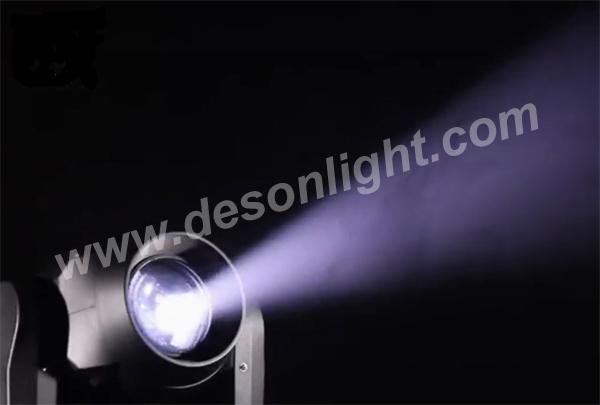

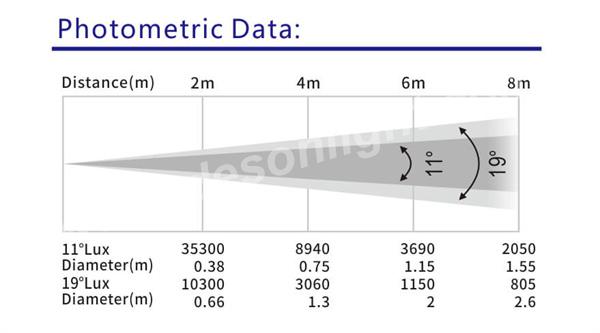

Beam Angle: 11° (on full open)
2°/4°/6°/8°/10° (with beam reducer)
3°/6°/9°/12°/15°/19° (with zoom lens)
Spot Angle: Fix Gobo: 10°→15°(with zoom lens)
Rotating Gobo: 10°→17°(with zoom lens)
Wash Angle: 15°~28°
Control
DMX Channel: 17/20 channels
Control Mode: DMX,Master/Slave,Sound Active
Firmware Upgrade: Update via DMX link
Pan/Tilt
Pan/Tilt: 540°/ 270°
Pan/Tilt Resolution: 16 bit
Construction
Display: LCD display
Data In/Out: 3-pin&5-pin XLR
Power in/out: PowerCon
Protection Rating: IP20
Features
Motorized focus

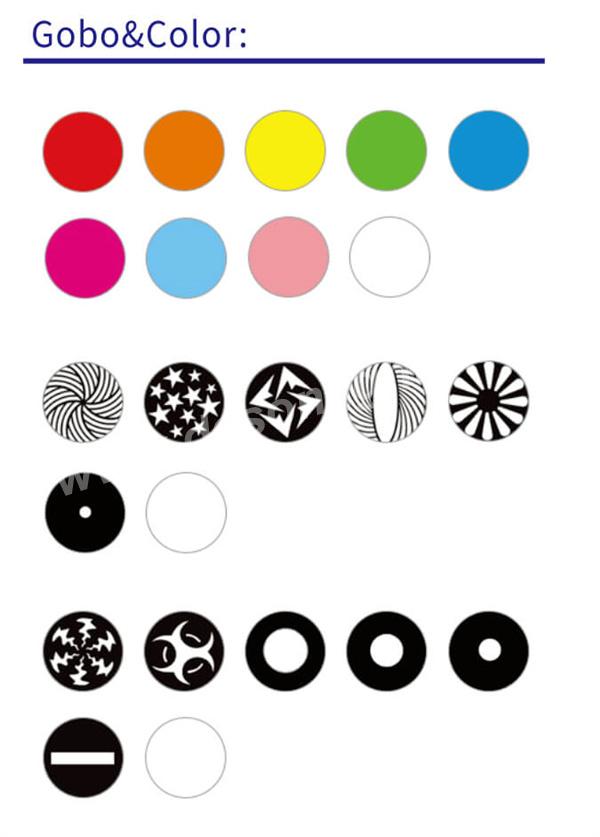

Color Wheel: 8 fixed colors plus white with rainbow effect
Gobo Wheel: 1 static gobo wheel with 7 gobos plus open
1 rotating gobo wheel with 6 gobos plus open
Gobo’s outside diameter: 21mm
Gobo’s image diameter: 17mm
3 facets prism rotating in both direction
Outstanding color macro effect
0~100% smooth dimming
Independent frost effect
Various strobe speeds
Integrated three features: beam, spot, and wash
SPEC.
Electrical and Physical
Power Voltage: AC 100~240V, 50/60Hz
Power Consumption: 250W
Dimensions: 312x255x453mm
Weight: 12.2Kg
