Description

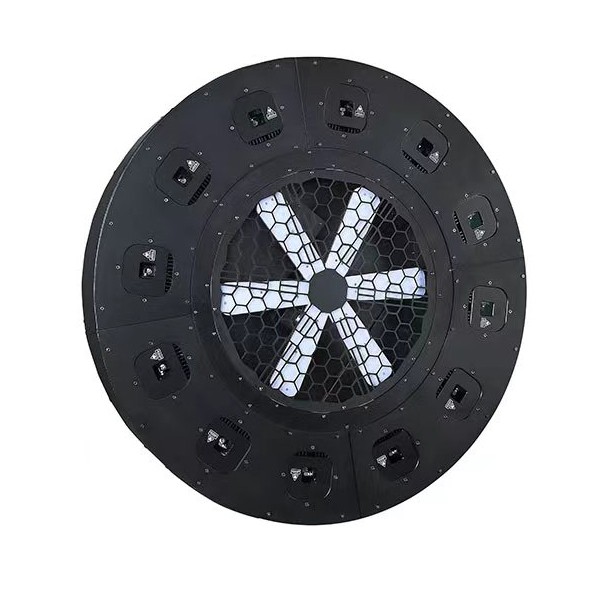

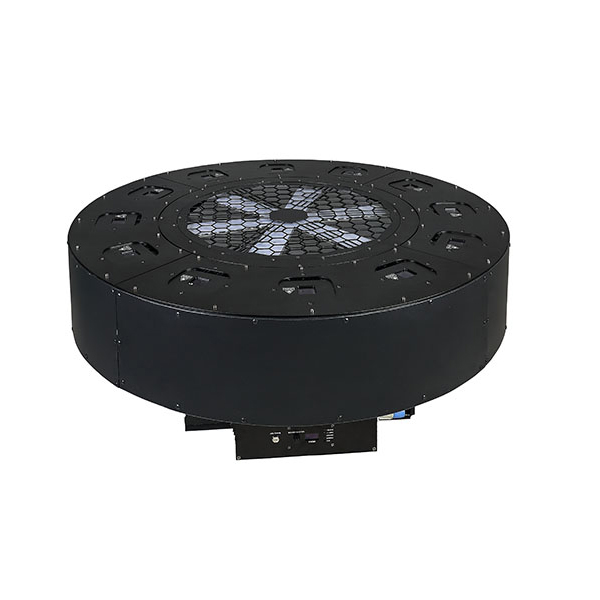

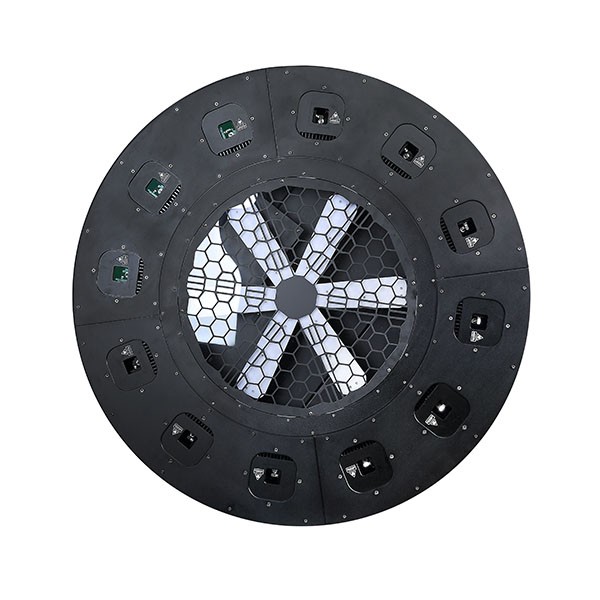

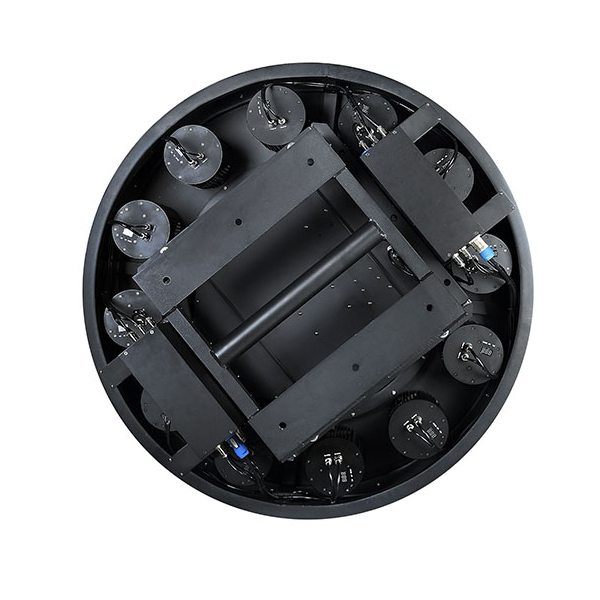

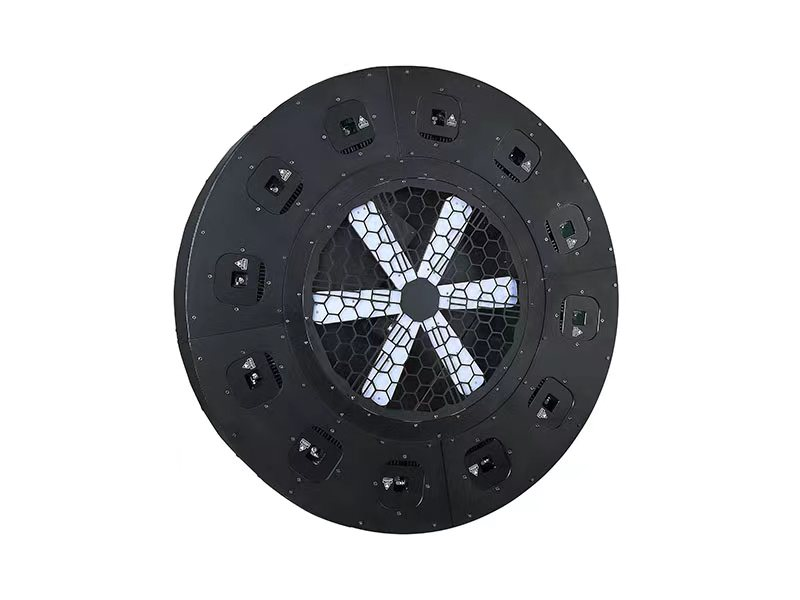

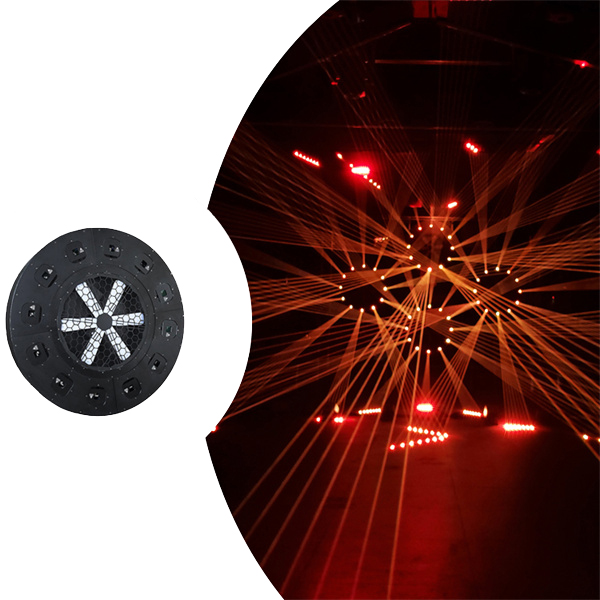

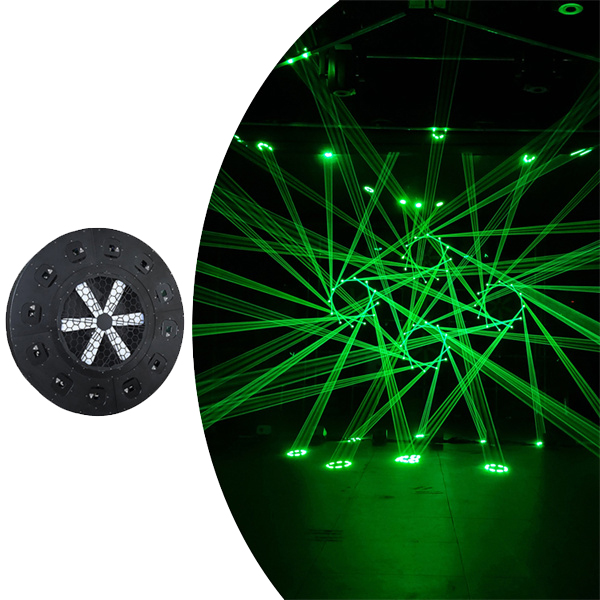

24W / 36W 12heads circle laser RGB Full color with Fan matrix light L-810
Description
1. Well-designed circular structure, multiple light on the circle can be combined to do various effects such as running lights, strobe and other effects.
2. The combination of laser and popular fan light, the sharpness of laser light,and the softness of LED.
The fan light module can be removed and replaced by other light

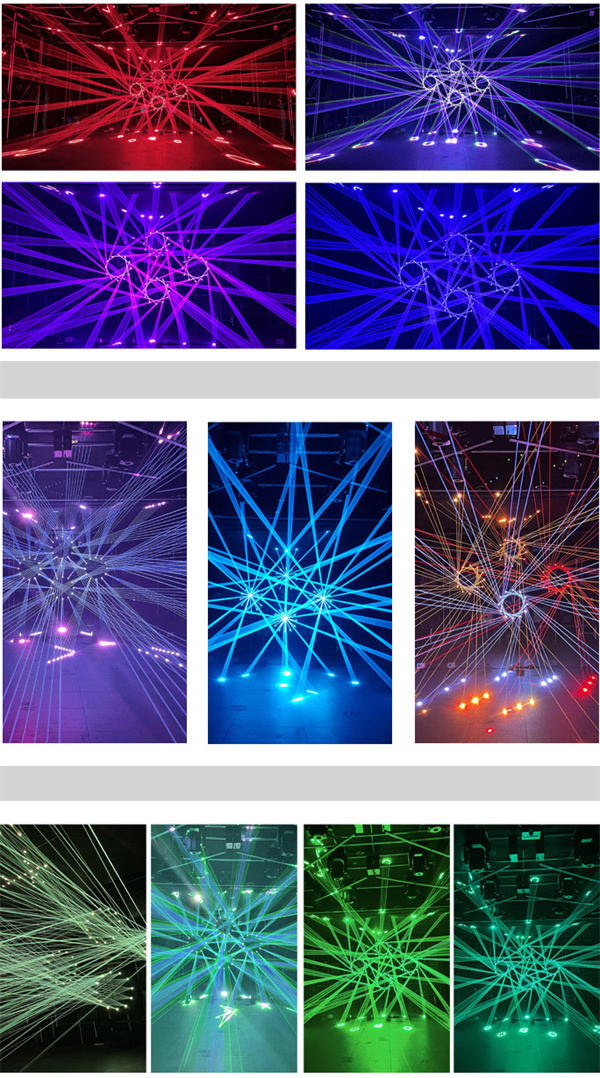

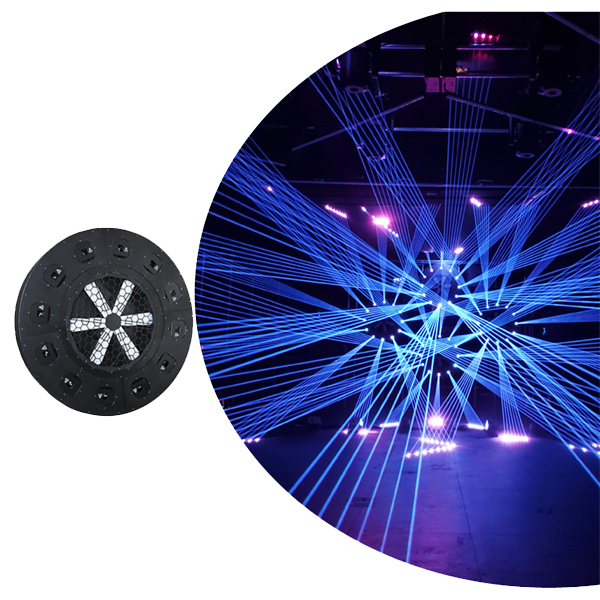

Effects
Specification
Rated voltage:100V-240V 50/60 Hz ≤400W
Divergence: 3*6.5mm：1.5mrad
Scanning system:
36W +25kpps,
24W +20Kpps,
optical anglemax±25°
Channel:27CH/241CH/313CH;38CH/252CH/324CH
Control mode: automatic/ DMX512/ master-slave
Control Interface:3 Pin DMX512,art-net
Control technology:
①RDM data bidirectional transmission
②temperature control system
Temperature:dry, less dust, 0~35℃(environmental temperature),will reduce theattenuation of the diode and extend the life of the light.
Application: indoor small medium events.

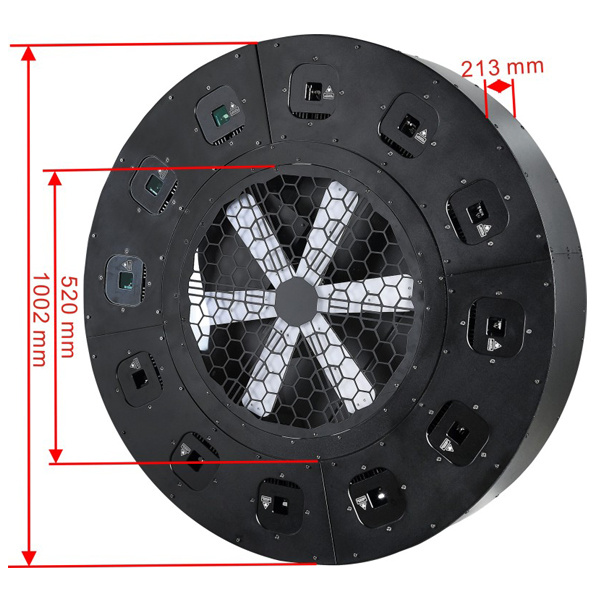

Flight case:109*109*63cm
N.W/G.W:55kg/105kg
| Pic | Item name | Laser power |
|
36W laser matrix (12 heads) | W3000( R700mW + G800mW + B1.5W) x 12pcs |
| 24W laser matrix (12 heads) | W2000( R500mW + G400mW + B1.2W) x 12pcs | |
|
36W laser matrix (12 heads) + LED fan light | W3000( R700mW + G800mW + B1.5W) x 12pcs + LED |
| 24W laser matrix (12 heads) + LED fan light | W2000( R500mW + G400mW + B1.2W) x 12pcs + LED |
