Description

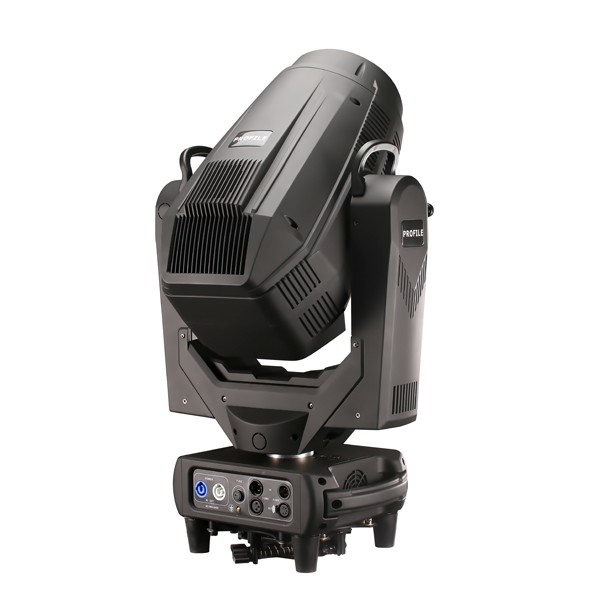

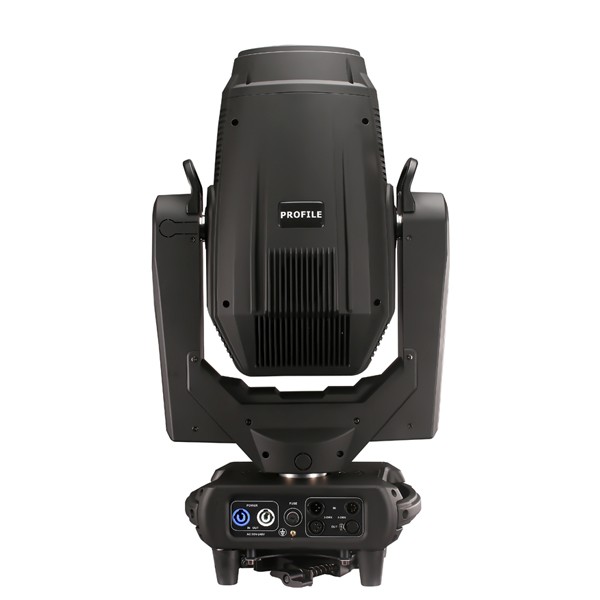

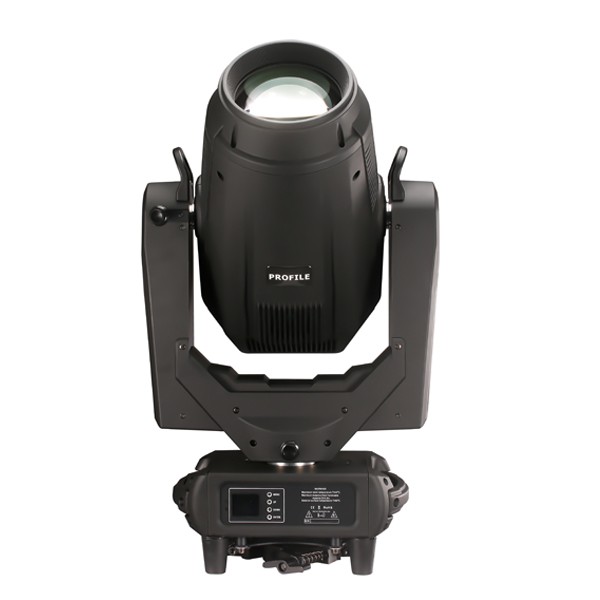

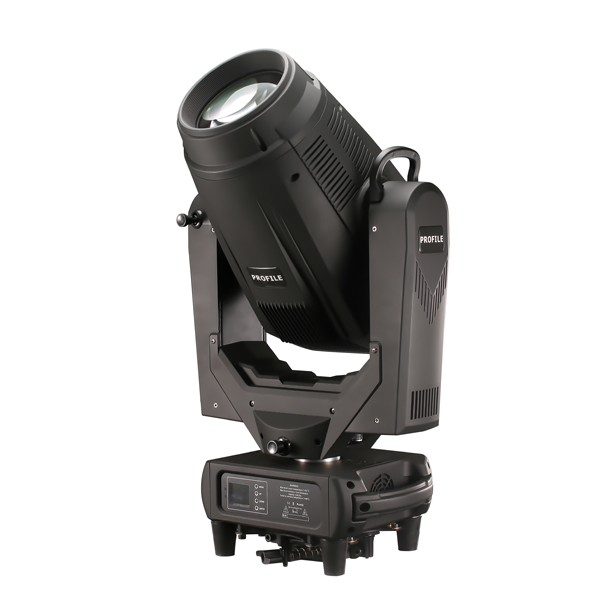

550W CMY Framing LED Moving Head Light LM-527
Electrical parameters:
Voltage: 100V~240V AC, 50/60Hz
Power: 700W @ 220V
Power factor: PF>0.9
Light source specification:
Light source:600W high brightness Module LED (in order to protect the led lifetime, the real power adjust to 550W)
Color temperature:7500K-8000K
Life time:50000 hours
colour:
1 color wheel: 8 colors + white
2.With C M Y function, color can be adjusted;
Can be mixed to make the color richer.
Gobo wheel:
1. 1 rotating gobo wheel: 7 gobos + white
The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate
2. 1 fixed gobo wheel:11 gobos + white
3. 1 Profile wheel: can cut out any geometric pattern to make the effect more dazzling
Prism:
Two prism wheel, can be rotated in both directions
Focus:
DMX linear focus adjustment, super smooth focus adjustment.
Strobe/Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming
Frost:
Independent frost lens, softer light
Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540°
vertical: 270°
Beam Angle:
4-40°
DMX linear amplification, the beam angle can be freely switched from 4 to 40 degrees
Control mode:
DMX512 signal, 3-pin + 5-pin
33CH channel mode
Other functions:
Horizontal and vertical speed adjustable
Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime
Modular structure for easy maintenance
Housing material/protection level:
High temperature/UV light resistant engineering plastic
Protection grade: IP20
weight:
Net weight: 26kg
Gross weight: 27kg
packing size: (mm)
510(L)*370(W)*800(H)
Working temperature:
Maximum ambient temperature 50°C
