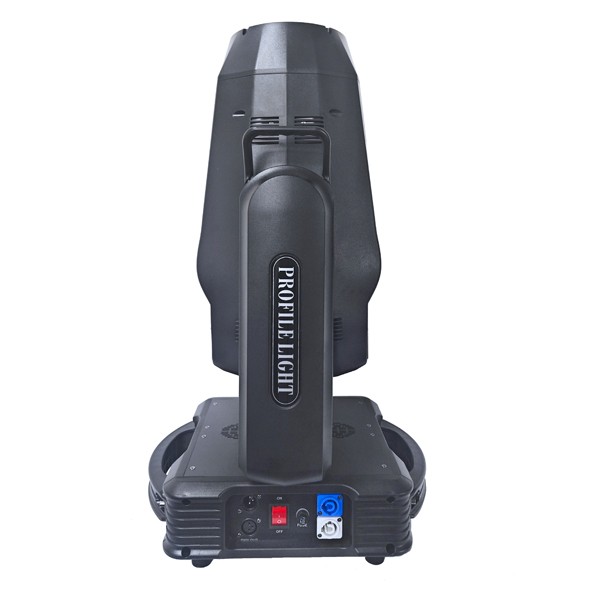

800W LED Full-Function Cutting moving head light LM-E800
Input Voltage/Frequency: AC100V-240V, 50/60Hz
Rated Power: 1200W
Light Source: One high-brightness, high-power 800W white LED.
Light Source Lifespan: 20,000 hours.
Beam Uniformity: 90%.
Beam Angle: 3°-40°, variable focus lens, linear magnification/reduction function.
Control Channels: 35 international standard DMX512 channels
Operating Modes: Voice-activated, Auto-running, Master-Slave, DMX512.
Color Cartridge: Composed of 5 colors + white light, with CTO and CRI.
Independent CMY System.
With flowing effect.
Fixed Pattern Cartridge: 6 fixed pattern pieces with pattern jitter function.
Rotating Pattern Cartridge: 7 pluggable rotating pattern pieces with white light, with pattern jitter and arbitrary pattern positioning functions.
Cut Plate: A controllable beam cutting system consisting of 8 cutting blades. The entire system can rotate 150°, allowing for precise control of the cut plates to create beams of any shape.
Prism: One prism and one octagonal prism. Prisms can rotate bidirectionally, can be stacked, and have adjustable speed.
Focus: DMX linear high-definition focus, with sharpness adjustment from 2 meters to infinity.
Fog: Built-in fogging lens for adjustable softening effects.
Strobe: 1-25 times/second ultra-high-speed strobe effect, with selectable random and pulsed strobe.
Dimming: 0-100% linear dimming.
Aperture: 5%~100% smooth adjustment.
Horizontal/Vertical: 540° horizontal, 270° vertical, 16-bit precision scanning, automatic return-to-center correction.
Display:LCD touchscreen display.
Software:Built-in programs available.
The control panel allows for functions such as changing the DMX address code, machine reset, and switching voice control modes.
Other functions: RDM function.
Intelligent energy saving; the LED light source will automatically turn off when the lights are off (dimmer fully off).
Product dimensions: 77.5*40.5*28.5cm
Net weight: 25.1kg
Gross weight: 28kg
Packaging dimensions: 79.5*36.5*50.5cm
2in1 case package: 90*50*88cm (including wheels) for cutting lights
2in1 case empty weight: 34kg;
Weight with lights: 85kg
Pattern size: Outer diameter 22.8mm,
Pattern 14mm
