Description

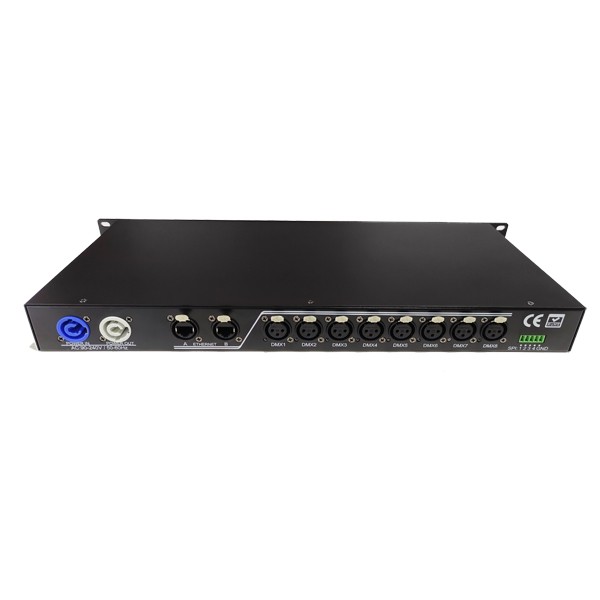

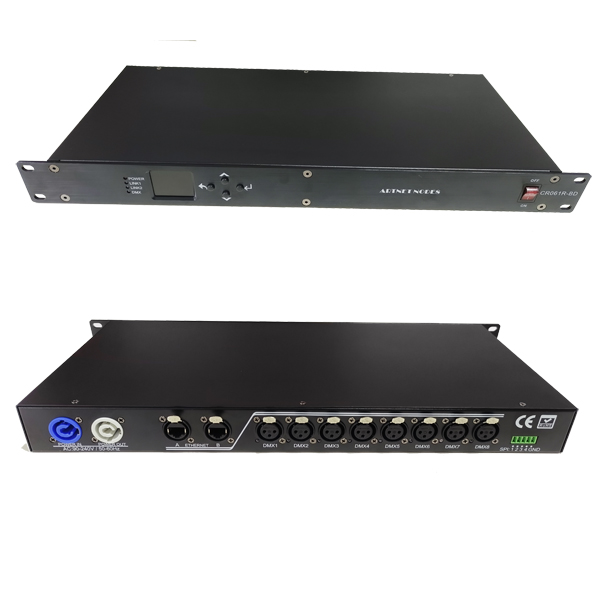

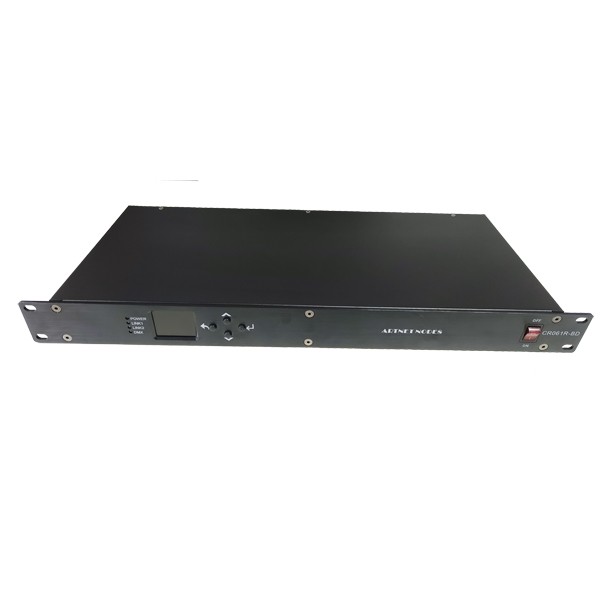

Art-Net to DMX512/RDM 8-Port Expander D-CR061R-BD

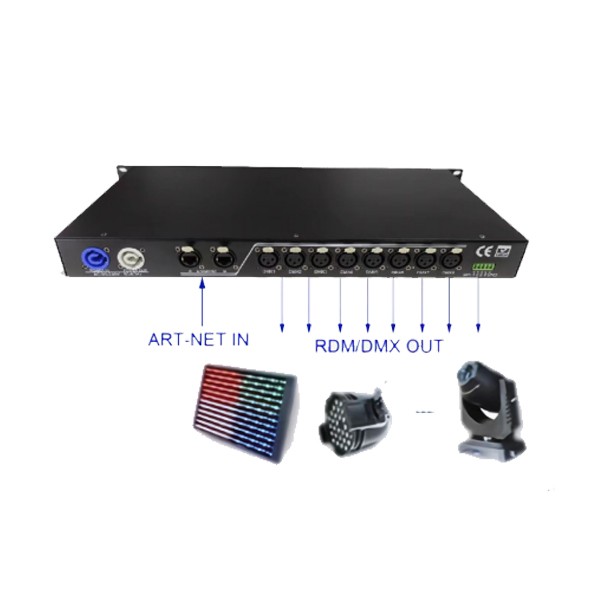

This device provides Art-Net to DMX512 conversion capabilities with RDM functionality. All eight DMX output ports support the RDM (Remote Device Management) protocol, enabling easy configuration and management of RDM/DMX-compatible lighting fixtures. Powered by a high-speed ARM processor and compliant with standard Art-Net protocols, the unit features RJ45 network interfaces alongside standard DMX512 input and output ports. It offers high protocol compatibility, real-time performance, and reliable operation.
The unit comes factory-configured with the IP address 2.x.x.x and subnet mask 255.0.0.0; it is generally ready for immediate use (plug-and-play) without modification. Custom network configurations can be set via the device's built-in menu.
Standards Support
1. Art-Net standard protocol support
2. DMX512 standard protocol support
3. RDM (Remote Device Management) standard protocol support
Ethernet Interface (Standard RJ45)
1. 10/100 Mbps speed
2. Ethernet interface
3. DHCP automatic addressing / Manual address configuration
DMX512/RDM Ports
1. 8 output ports
2. Total expansion of 4096 channels
3. RDM remote management for lighting fixtures
Rated Operating Range
1. Rated voltage: AC 100V–240V
2. Rated frequency: 50Hz–60Hz
