Description

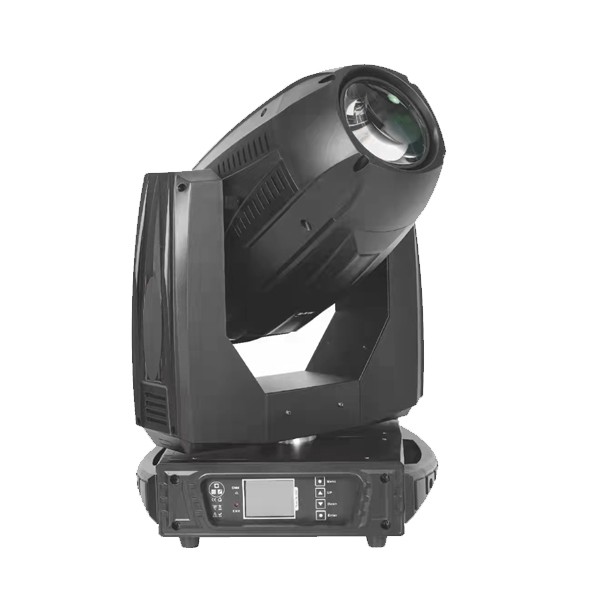

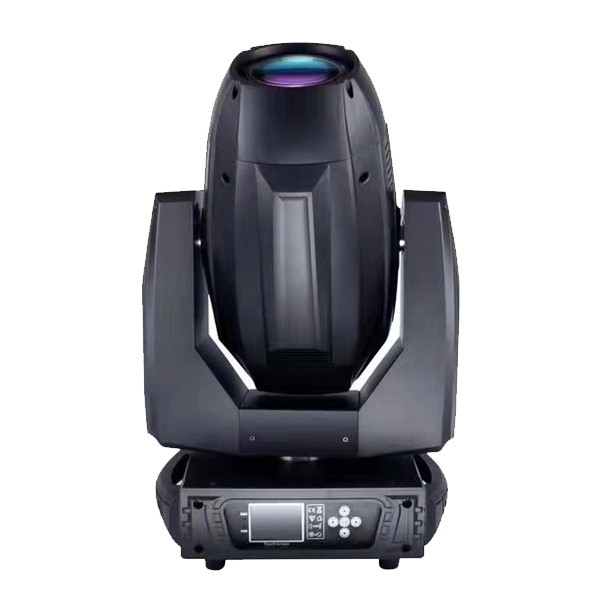

380W 3in1 moving head beam wash spot light M-3803in1
Light source: 380 R18
Lamp life: 1500H
Color temperature: 8000K
Beam angle: 1°-3° in beam mode,
In pattern mode: 2.5°-33°
Input power: AC100-240V, 50/60Hz
Power consumption: 500W
Control signal: DMX-512 (1990)
Control channel: 17/24 channel mode
Scanning angle: horizontal scanning angle 540°, resolution 16Bit, can automatically correct positioning Vertical scanning angle 270°, resolution 16Bit, can automatically correct positioning
Linear dimming: mechanical linear dimming 0-100%
Color wheel: 1 fixed color wheel (13 color chips + white light), linear color conversion, half color effect, and bidirectional rotating rainbow effect
Static gobos: 1 fixed gobo wheel with 17 gobos + white light, variable speed jitter/two-way flow effect
Dynamic gobo: 1 rotating gobo wheel with 12 optional plug-in gobos + white light
Prism: 11 kinds of prism effects can be produced, consisting of 2 rotating prism disks, prism disk 1: 1 16 prism, 1 linear 6 prism, 1 atomized; Prism disk 2: 1 32 prism, 1 straight line 6 prisms, 1 double prism (6 prisms + 1 2 prisms)
Focus: Linear fast focus function
Zoom: Linear fast zoom function
Strobe: 0.3-25 times/second strobe switching
Atomization: 0-100% linear atomization
Ambient temperature: -10℃—40℃
Protection class: IP20
product size: 24x24x38cm
Gross weight: 22KG
