Description

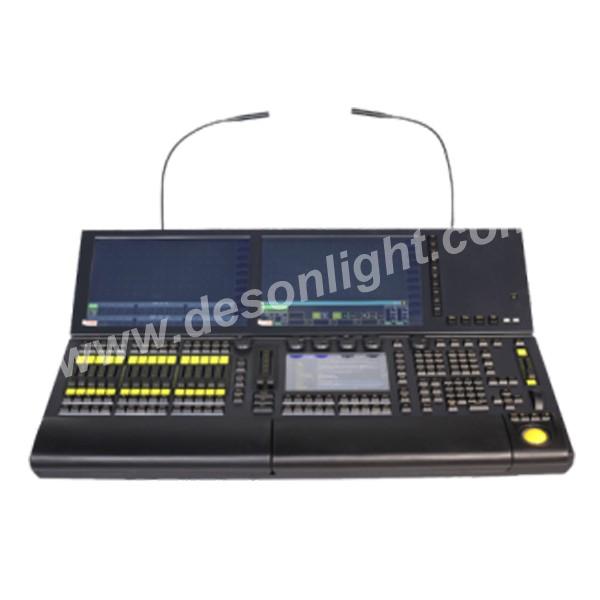

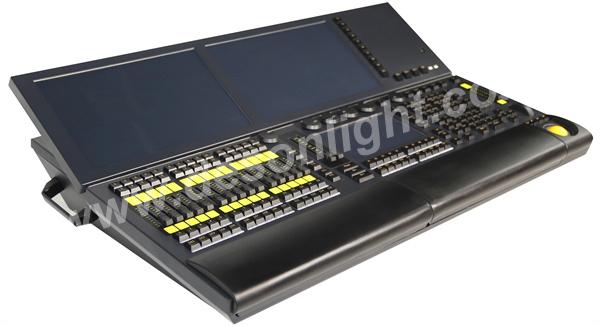

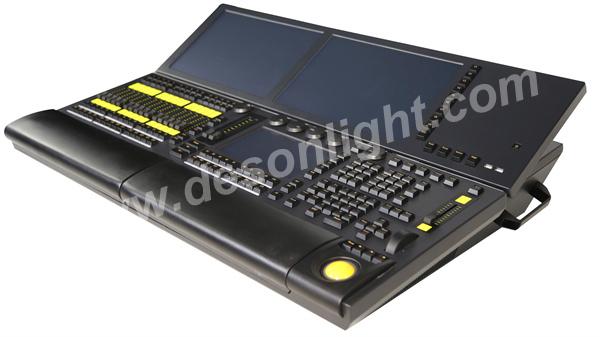

DMX Grand MA 2 MA2 dual screen Controller (electric fader) LC-MA2D
Linux operating system.
Built-in two 15.4-inch touch screens, electric lift, and one 9-inch touch screen.
Powerful i5CPU, 8G memory, built-in 120G solid state drive.
Built-in 2 Geforce graphics cards.

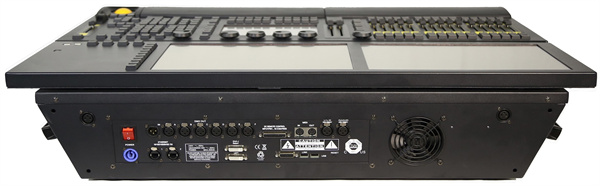

6 DMX output ports, 1 composite DMX input port (can be set as output).
Connecting with NPU can support up to 65536 channels.
15 high-precision electric playback faders, 50 program execution buttons.
1 master control push rod, 1 dimming wheel.
1 controllable XY axis high-precision imported trackball.
2 A/B field electric putters.
6 imported industrial grade wear-resistant encoders (with Push function).
2 Gigabit Ethernet ports, support MA NET, ARTNET and other signals.
5 USB ports.
2 work light interfaces.
MIDI input and output interface.
Built-in 1 drawer, built-in yellow backlit mechanical keyboard (backlight brightness adjustable).
Wide voltage industrial power supply 100V-240V 50/60Hz.
Built-in high-power UPS.
Support RDM function.
[Size] Packing size: 101*89*34cm, bare metal size: 94*66*21cm,
Linux operating system.
Built-in two 15.4-inch touch screens, electric lift, and one 9-inch touch screen.
Powerful i5CPU, 8G memory, built-in 120G solid state drive.
Built-in 2 Geforce graphics cards.
6 DMX output ports, 1 composite DMX input port (can be set as output).
Connecting with NPU can support up to 65536 channels.
15 high-precision electric playback faders, 50 program execution buttons.
1 master control push rod, 1 dimming wheel.
1 controllable XY axis high-precision imported trackball.
2 A/B field electric putters.
6 imported industrial grade wear-resistant encoders (with Push function).
2 Gigabit Ethernet ports, support MA NET, ARTNET and other signals.
5 USB ports.
2 work light interfaces.
MIDI input and output interface.
Built-in 1 drawer, built-in yellow backlit mechanical keyboard (backlight brightness adjustable).
Wide voltage industrial power supply 100V-240V 50/60Hz.
Built-in high-power UPS.
Support RDM function.
[Size] Packing size: 101*89*34cm, bare metal size: 94*66*21cm,
【Weight】Gross weight: 83kg, net weight: 45kg
