Description

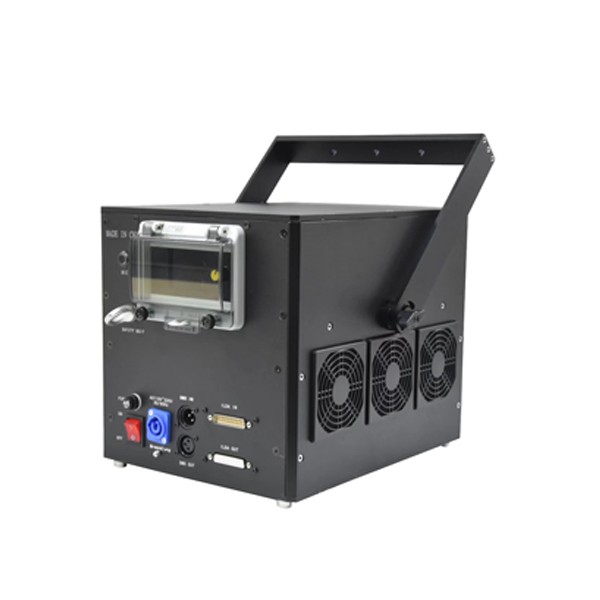

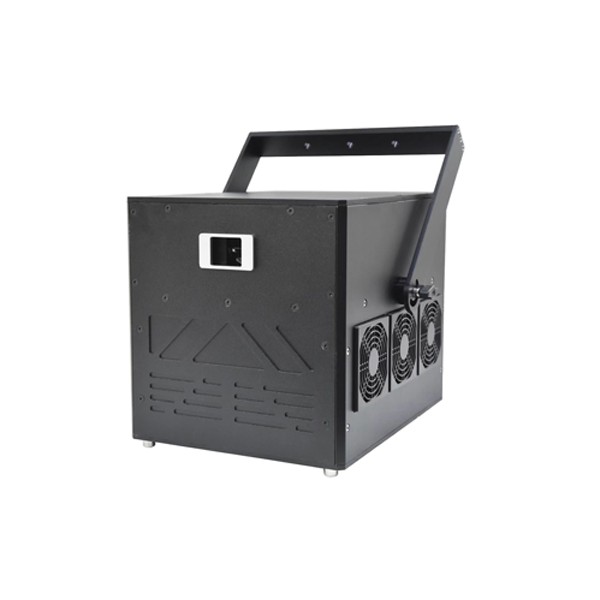

Eco 20W full-color animation RGB laser L-808
Laser power: red 6000mW (638nm) green 6000mW (525nm) blue 8000MW (450nm)
Play system: DMX512, voice control, automatic, ILDA. You can choose a laser show through DMX.
Display system: color display, can be transformed in Chinese and English freely
Imaging system: 40KPSS high -speed scanning mirror, scanning angle ± 20 °, input signal ± 5V, linear distortion <2%.
Program effect: various beam, geometric figures, animation, broken pen effects, more than 200 types of beam animation effects
Programming: DMX512 can arrange various beams, animation programs, use control software to connect to the computer, and arrange more rich animation programs
Laser modulation: TTL and analog available (0 ~ 3KHz)
Bamaine diameter Eranging angle: 6.5mm, <1.2mrad
Control interface: DMX512 (two control channel mode 18/29), automatic recognition of 512 signals, ILDA (standard computer software interface))
DMX special effects: color, frequent flash, line segments, highlights, horizontal movement, vertical movement, zoom, X flip, Y flip, center goes and reverses, gradually painted, X wave special effects, y wave special effects effect
Input voltage: AC 110/220V 50/60Hz
Dimensions: 320*251*258 mm
The entire machine power: 95 ~ 220W
Weight: 15.8 kg
Laser power: red 6000mW (638nm) green 6000mW (525nm) blue 8000MW (450nm)
Play system: DMX512, voice control, automatic, ILDA. You can choose a laser show through DMX.
Display system: color display, can be transformed in Chinese and English freely
Imaging system: 40KPSS high -speed scanning mirror, scanning angle ± 20 °, input signal ± 5V, linear distortion <2%.
Program effect: various beam, geometric figures, animation, broken pen effects, more than 200 types of beam animation effects
Programming: DMX512 can arrange various beams, animation programs, use control software to connect to the computer, and arrange more rich animation programs
Laser modulation: TTL and analog available (0 ~ 3KHz)
Bamaine diameter Eranging angle: 6.5mm, <1.2mrad
Control interface: DMX512 (two control channel mode 18/29), automatic recognition of 512 signals, ILDA (standard computer software interface))
DMX special effects: color, frequent flash, line segments, highlights, horizontal movement, vertical movement, zoom, X flip, Y flip, center goes and reverses, gradually painted, X wave special effects, y wave special effects effect
Input voltage: AC 110/220V 50/60Hz
Dimensions: 320*251*258 mm
The entire machine power: 95 ~ 220W
Weight: 15.8 kg
Applicable places: Acting, Night Club and other large -scale performance venues, bright landscapes, cultural tourism projects
