Description
IP65 outdoor moving head flash beam led wash light LS-906
Colorful surface
LED lamp bead type: 8 segments 0.5W RGB 3IN1 LEDS
White light flash-middle section
LED lamp bead type: 4 segments 5W cold white LEDS
Turn
Operation resolution: 8-16 bits
Vertical maximum rotation angle: 185 °
control
Control mode: 7CH / 9CH / 42CH
Show: LCD LCD display
Communication Agree
Cooling: The two sets of waterproof speed regulators are actively heat dissipation, and the whole machine is intelligent temperature control.
Effect
Lighting: 0-100 % linear electronic lighting
Flint: 0-30Hz
Color temperature adjustment: 2.000 k-10.000 k
Internal effect: LED macro effect
connect
Signal connection: Seetronic IP65 XLR 5 core or 3 core input/output
Power connection: Seetronic PowerCon True1 input/output
Operating conditions
Input voltage: 100-240V AC / 50-60Hz
Rated power: 1200W
The maximum limit of ambient temperature: -30 ° C / 86 ° F, 50 ° C / 122 ° F
Install
Establishment installation: base
Suspension type installation: ω light hook
Installation location: sitting, inverted, side hanging
The bottom is equipped with a safe rope hanging hole
transportation
Ordinary packaging: carton packaging (internal and external double -layer carton)
Aviation packaging: 1 Pack 4 aviation box methods
Lamp specification
Lighting color: black

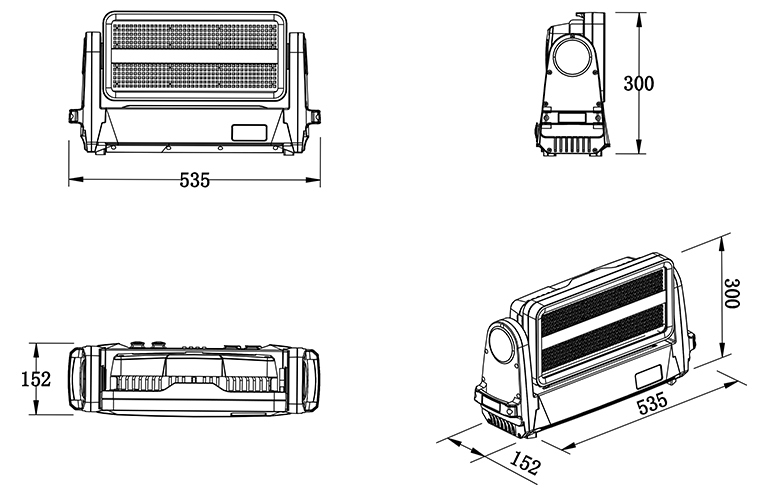

Lighting size: 535*152*300 (mm)
Net weight: 14.2kg
Protection level: IP65
