Description

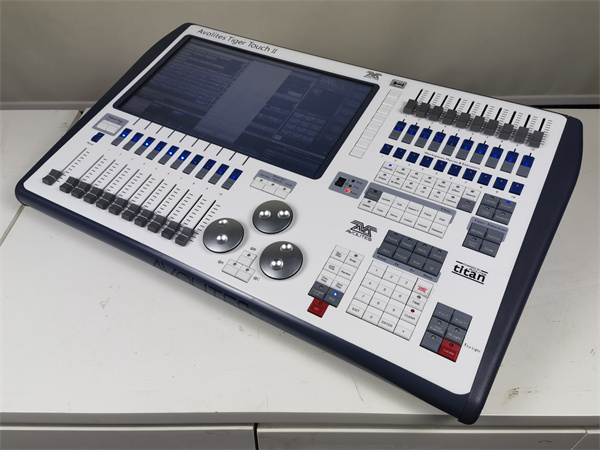

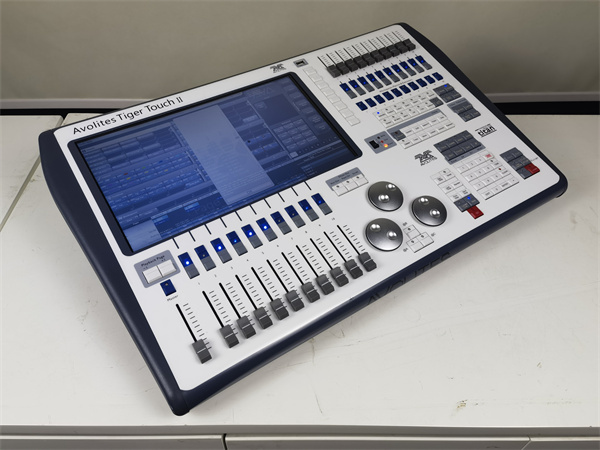

Version 16.0 Capacital Screen Tiger Touch Generation 2 12outPuts DMX light Console LC-8031

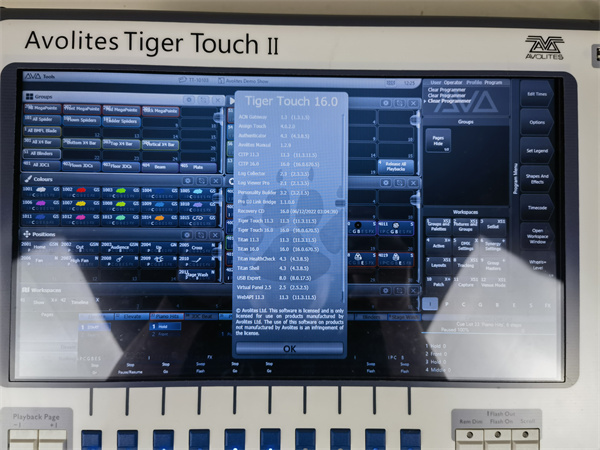

64 -bit operating system, the latest software version v16.0
8 languages, support Chinese menu display
1 15.6 -inch wide -screen capacitive touch display, high brightness

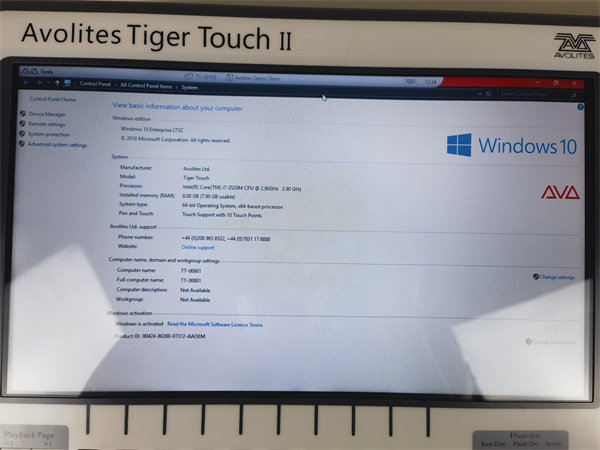

I7CPU, 8G memory, 128G solid state drive
10 pages push push rods, 10 fixed program push rods
10 macro function buttons
3 high -precision imported encoders
Built -in Visualiser 3D visualization software
More than 1,000 virtual release
Powerful CMY color panel function, support graffiti handwriting naming function
Support window size adjustment
Built -in more than 1,000 lamps, built -in lighting library editing software
Use the Mingwei switch power supply, 100-240V 50/60Hz

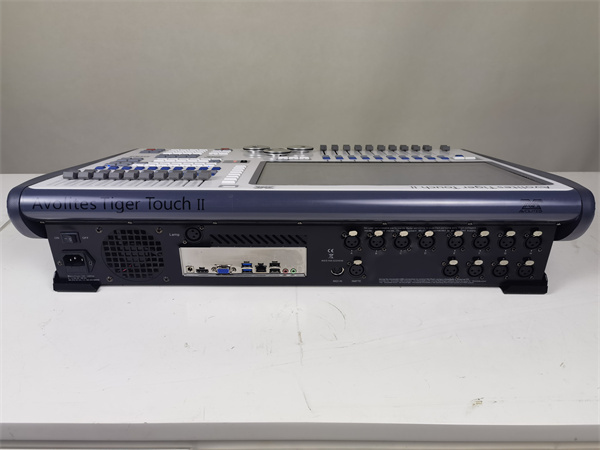

12 output ports, 6144 channel parameters
Support ArtNET maximum can be extended to 32,768 channel parameters
1 Gigabit network port, supports ART-Net, AVOTALK and CITP protocol
Support MIDI timing code (optional: support SMPTE/LTC timing code)
1 worklight interface, 5 USB interfaces
1 VGA external screen interface, you can connect an external contact with the display
Built -in uninterrupted power supply (ups)
Size: 78*48*31cm
64 -bit operating system, the latest software version v16.0
8 languages, support Chinese menu display
1 15.6 -inch wide -screen capacitive touch display, high brightness
I7CPU, 8G memory, 128G solid state drive
10 pages push push rods, 10 fixed program push rods
10 macro function buttons
3 high -precision imported encoders
Built -in Visualiser 3D visualization software
More than 1,000 virtual release
Powerful CMY color panel function, support graffiti handwriting naming function
Support window size adjustment
Built -in more than 1,000 lamps, built -in lighting library editing software
Use the Mingwei switch power supply, 100-240V 50/60Hz
12 output ports, 6144 channel parameters
Support ArtNET maximum can be extended to 32,768 channel parameters
1 Gigabit network port, supports ART-Net, AVOTALK and CITP protocol
Support MIDI timing code (optional: support SMPTE/LTC timing code)
1 worklight interface, 5 USB interfaces
1 VGA external screen interface, you can connect an external contact with the display
Built -in uninterrupted power supply (ups)
Size: 78*48*31cm
Gross weight: 28kg
