Description

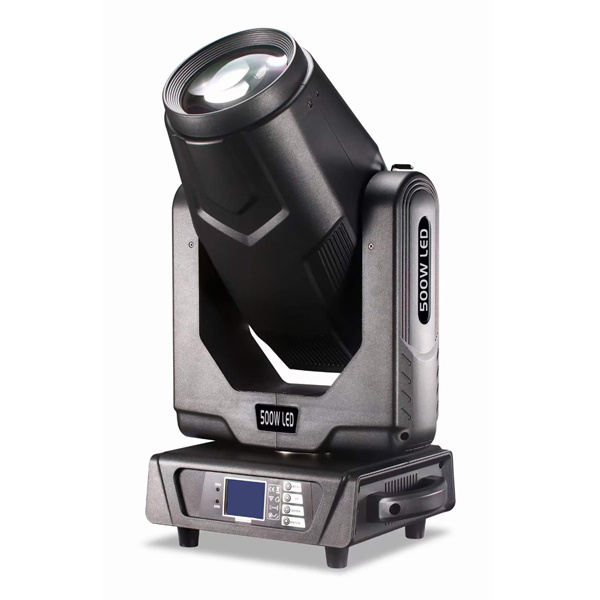

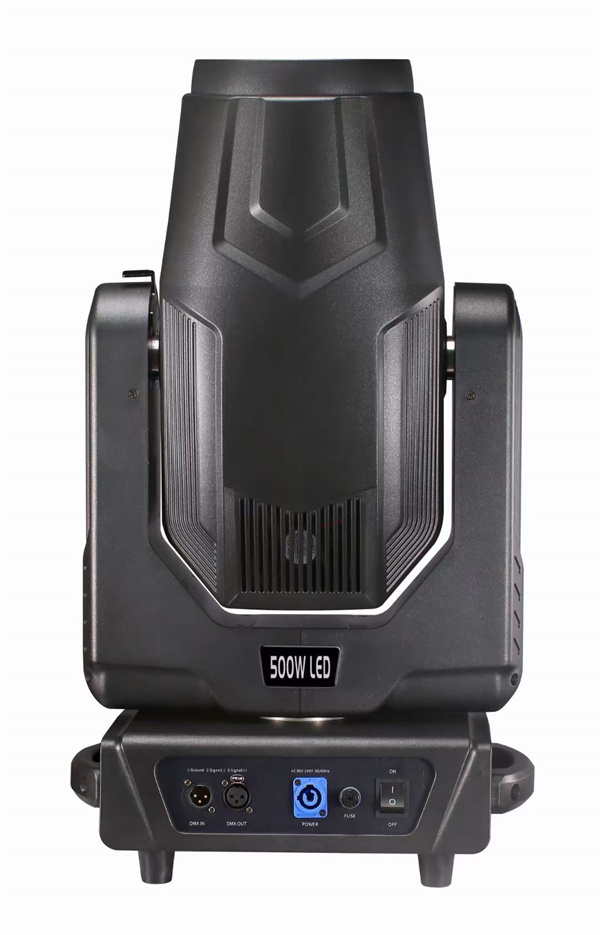

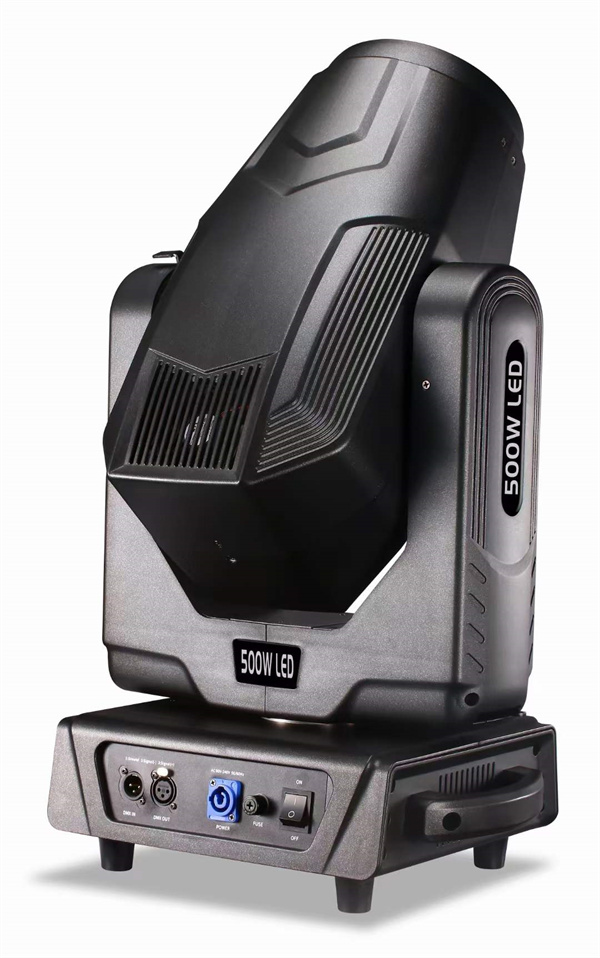

500W LED module CMY CTO Beam wash spot moving head cutting lights LM-500
Color temperature: 9000K
Color rendering index: 75
Input voltage: AC90V-270V/50-60Hz
Light source specifications: ECO420-80-R00-000
Light source life: 20000 hours
Linking illuminance: 5 meters 100,000
Light diameter: 138mm
Rated power: 600W
Channel mode: 23 channels
Horizontal scanning: 540 degrees (16bit precision scan) electronic error correction
Vertical scanning: 270 degrees (16bit precision scan) electronic error correction
Lighting system: 0-100%linear adjustment
Rocket system: linear adjustment 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spots
A zoom angle: beam is 2.7 to 36 ° dyeing 4-36 ° pattern 4-36 °
High-speed Flash: 0-30 times/s. The adjustable fluctuation effect.
Color: 8 colors+white light. Color semi -function
Color system: Independent CMY+CTO mixed color system.

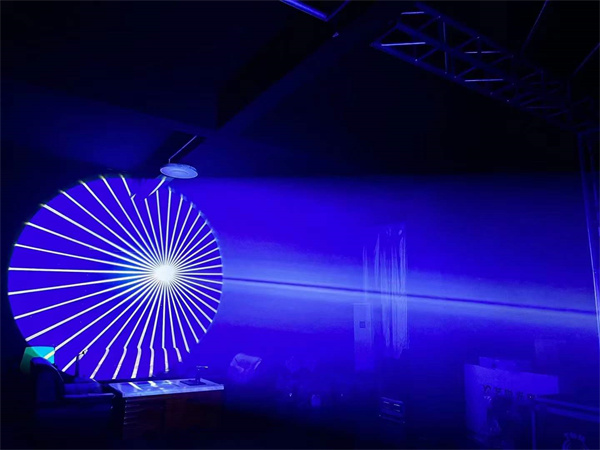

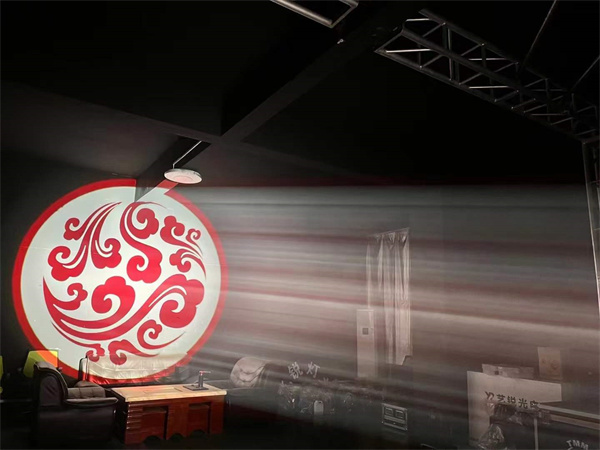

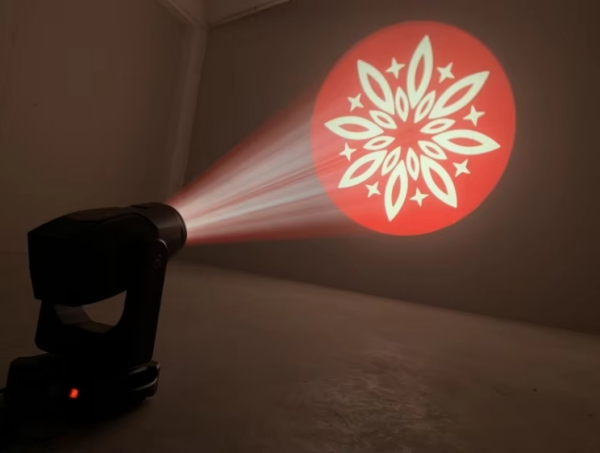

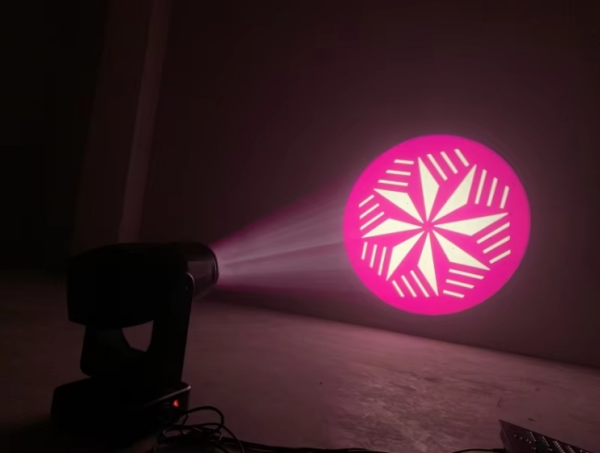

Fixed pattern: 12 fixed patterns+white light

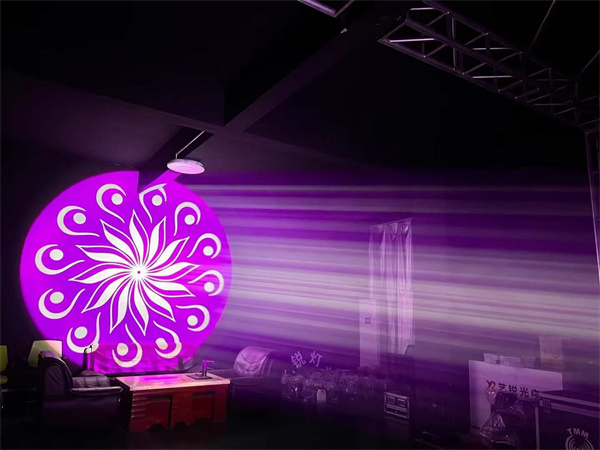

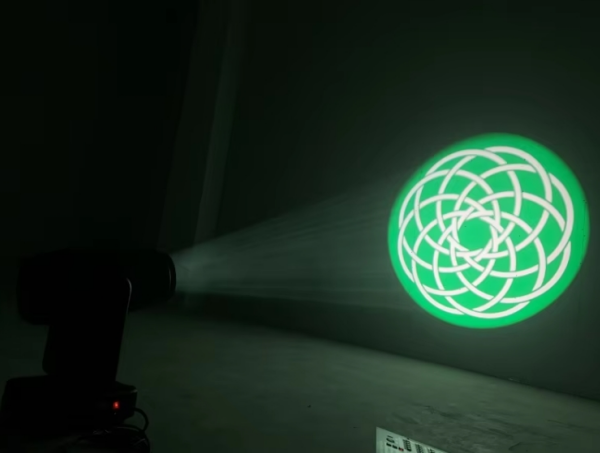

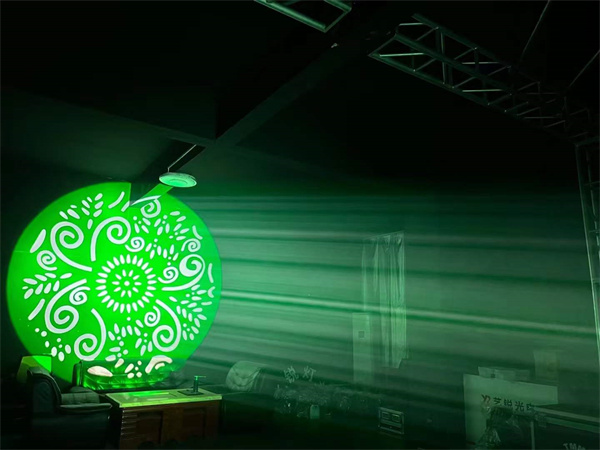

Rotating pattern: 7 glass patterns, each glass pattern can be independent and reverse independently
Prism system: standard 6 row prisms and 8+8 prisms, each prism can be independent and reversed independently
Macro function: platform reset function, self -take mode, main and slave mode
Display: LCD display, buttons+touch dual operation mode
Control signal: International Standard DMX512. With RDM function, you can upgrade online software, dial the location code
Cooling: Use axial fan to strengthen cooling
Safety device: Electronic temperature control automatic power off protection protection when the electronic temperature control is overheated.
Appearance material: high temperature resistance
Working environment: -20 degrees, 40 degrees
Protection level: IP20
Product net weight: 22.5kg

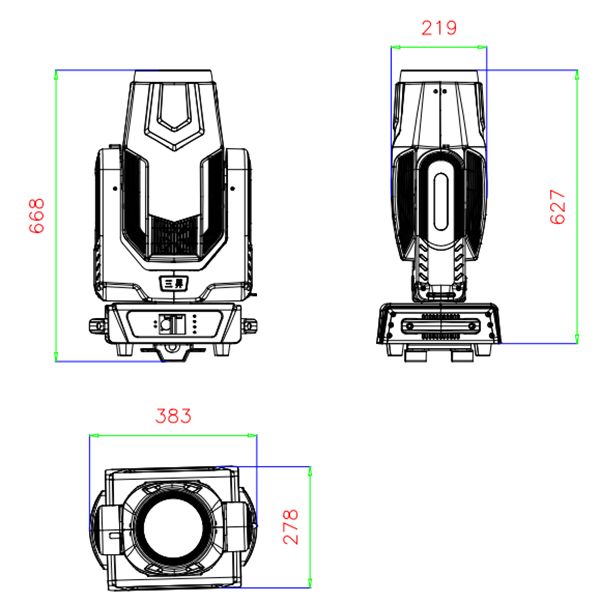

Product size: 38*27*65cm (l*w*h)
Paper bag size: 54*45*61cm
Total weight 25kg
One -dimensional air box is installed: 73*50*88cm
Total weight 77kg
Remarks:
Color temperature: 9000K
Color rendering index: 75
Input voltage: AC90V-270V/50-60Hz
Light source specifications: ECO420-80-R00-000
Light source life: 20000 hours
Linking illuminance: 5 meters 100,000
Light diameter: 138mm
Rated power: 600W
Channel mode: 23 channels
Horizontal scanning: 540 degrees (16bit precision scan) electronic error correction
Vertical scanning: 270 degrees (16bit precision scan) electronic error correction
Lighting system: 0-100%linear adjustment
Rocket system: linear adjustment 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spots
A zoom angle: beam is 2.7 to 36 ° dyeing 4-36 ° pattern 4-36 °
High-speed Flash: 0-30 times/s. The adjustable fluctuation effect.
Color: 8 colors+white light. Color semi -function
Color system: Independent CMY+CTO mixed color system.
Fixed pattern: 12 fixed patterns+white light
Rotating pattern: 7 glass patterns, each glass pattern can be independent and reverse independently
Prism system: standard 6 row prisms and 8+8 prisms, each prism can be independent and reversed independently
Macro function: platform reset function, self -take mode, main and slave mode
Display: LCD display, buttons+touch dual operation mode
Control signal: International Standard DMX512. With RDM function, you can upgrade online software, dial the location code
Cooling: Use axial fan to strengthen cooling
Safety device: Electronic temperature control automatic power off protection protection when the electronic temperature control is overheated.
Appearance material: high temperature resistance
Working environment: -20 degrees, 40 degrees
Protection level: IP20
Product net weight: 22.5kg
Product size: 38*27*65cm (l*w*h)
Paper bag size: 54*45*61cm
Total weight 25kg
One -dimensional air box is installed: 73*50*88cm
Total weight 77kg
Remarks:
With CMY with a CT0 rotating pattern with a rotation, a solid chart, a effect on the high brightness of 5 meters, which can reach 90,000
