Description

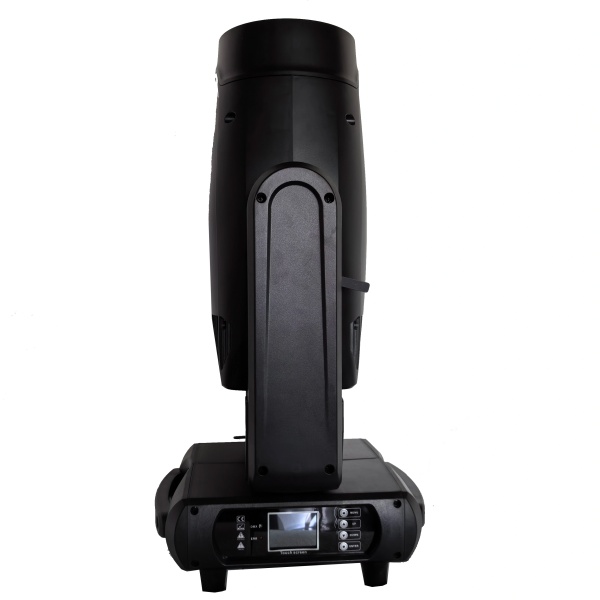

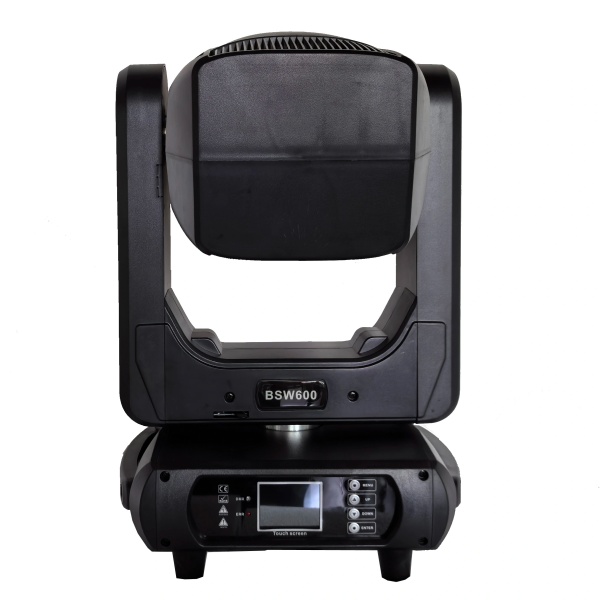

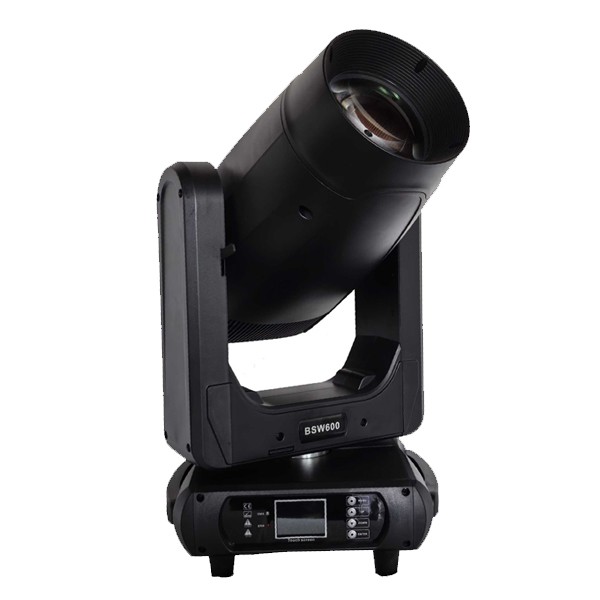

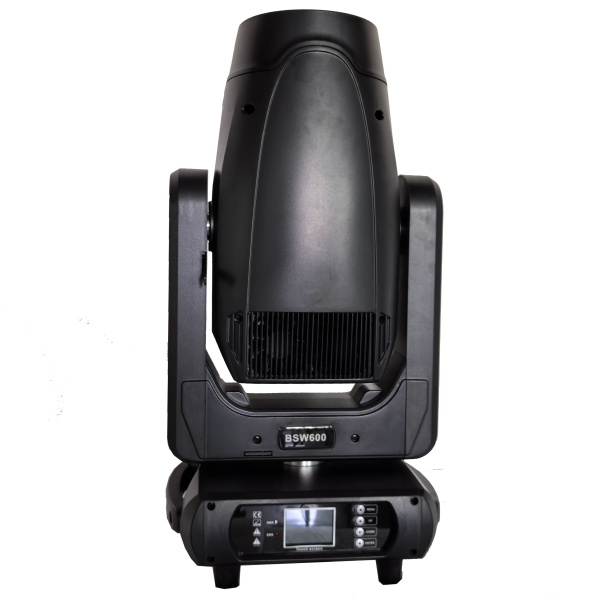

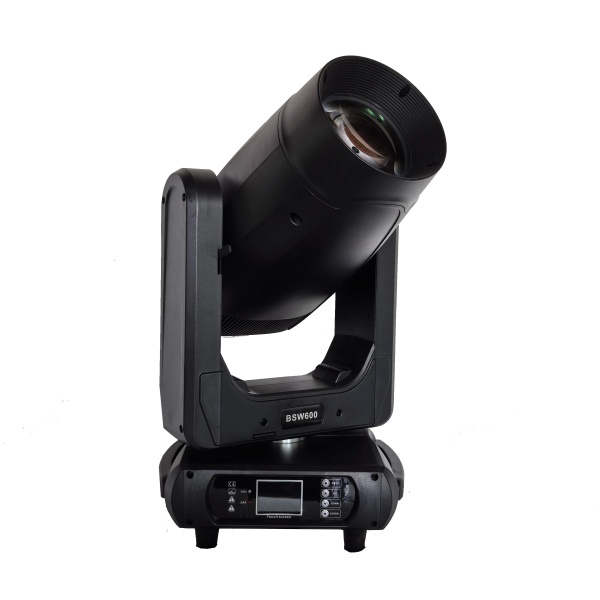

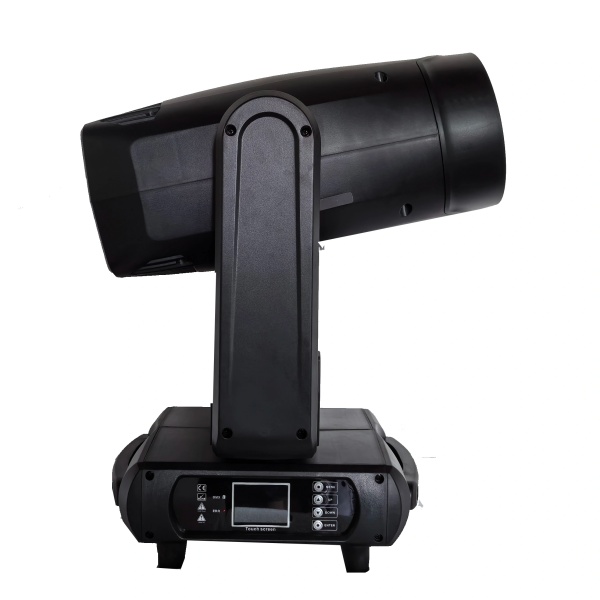

600W LED 3in1 moving head beam pattern light LM-M600
Input voltage: AC90V-240V/50-60HZ
Light source specifications: 600W LED high brightness module
Color temperature: 7500K
Color rendering index: 90
Light source life: 20,000 hours
Lumens illumination: 140000 lm at 5 meters
Light output diameter: 138MM
Rated power: 800W
Channel mode: 26 channels
Horizontal scan: 540 degrees (16bit precision scan) electronic error correction
Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction
Dimming system: 0-100% linear adjustment
Focusing system: linear adjustment from 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spot
Zoom angle: beam 2.7~40°, dyeing 4-40°, pattern 4-40°
High-speed strobe: 0-30 times/second. Adjustable speed strobe effect. Strobe macro function
Color: 8 colors + white light. Color half-color function
Color system: independent CMY+CTO color mixing system.
Fixed pattern: 12 fixed patterns + white light
Rotating pattern: 7 glass patterns, each glass pattern can be reversed independently
Prism system: standard single 6-row prism and 8-row prism, each prism can be reversed independently
Macro function: console reset function, self-propelled mode, master-slave mode
Display mode: LCD display, button + touch dual operation mode
Control signal: international standard DMX512. With RDM function, online software upgrade, dial address code
Cooling method: Use axial fan to enhance cooling
Safety device: with electronic temperature control overheating protection, electronic temperature control automatic power-off protection when the overheating system fails
Appearance material: high temperature resistant plastic
Working environment: -20 degrees, 40 degrees
Protection level: IP20
Product net weight: 22.5KG
Product size: 38*27*65CM (L*W*H)
Paper bag size: 66*57*48cm Total weight: 25KG
One flight case with two dimensions: 79.5*49.5*95CM
Total weight: 80.6KG
