Description

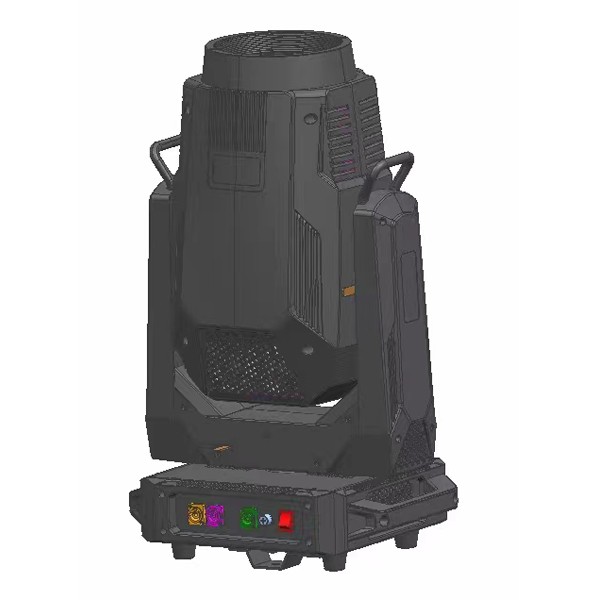

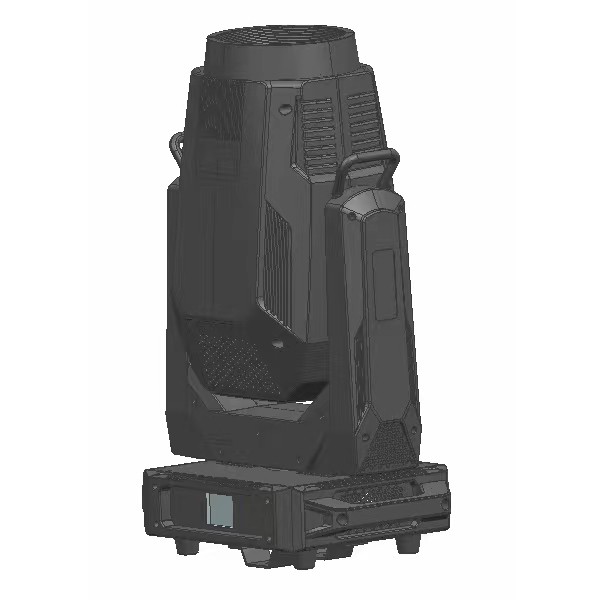

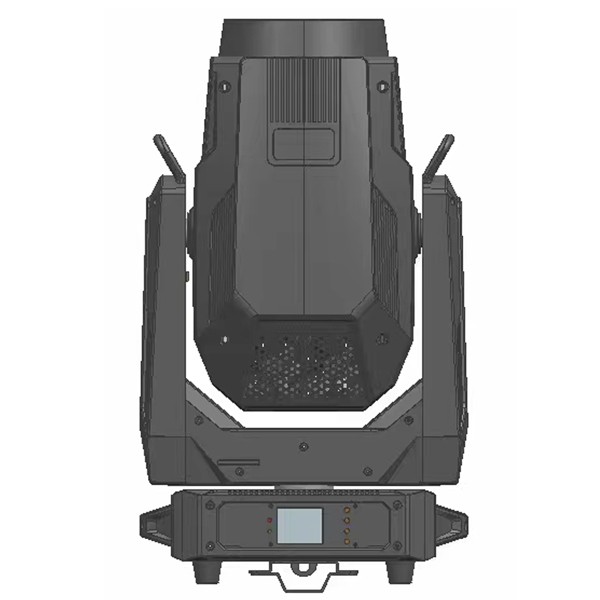

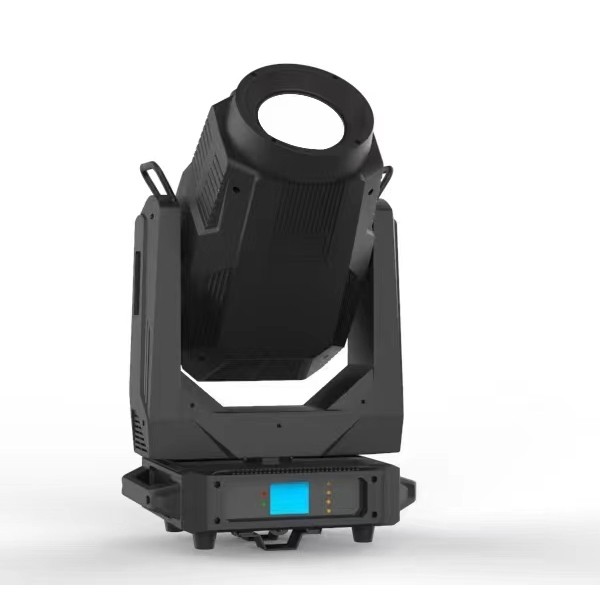

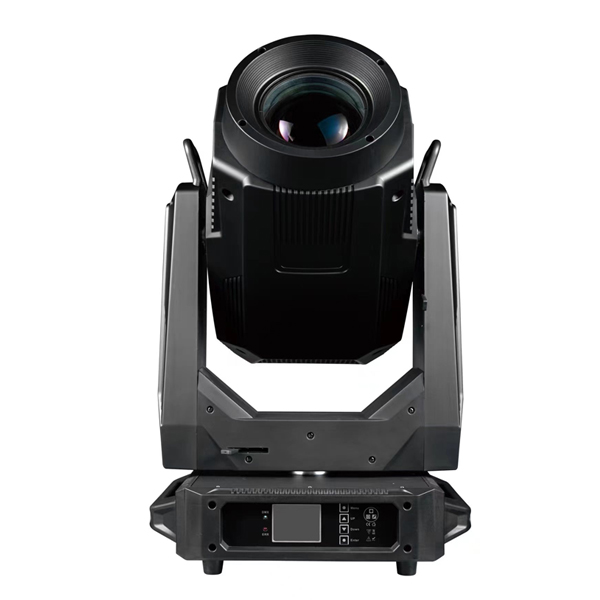

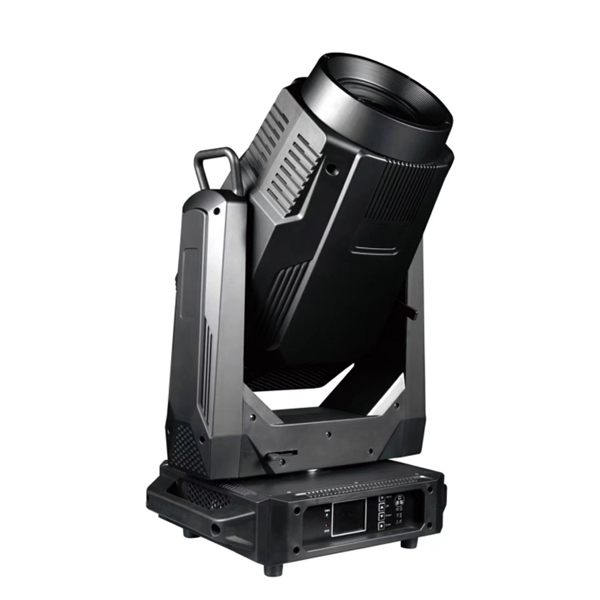

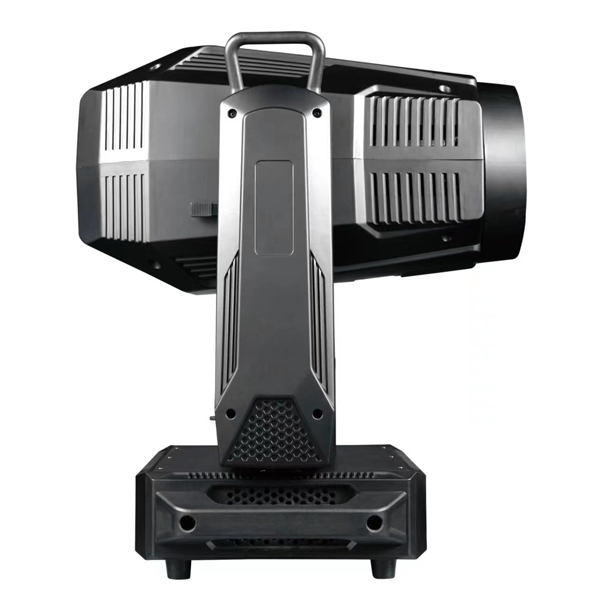

800W full-function LED computer cutting light LM-800F
Input voltage: AC100-240V, 50/60Hz
End power: 1000W
Light source: 800W LED module
LED life: 20,000 hours
Color temperature: 6800K
Color rendering index: standard mode RA> 75, high display mode RA> 90
Light flux: 24000LM
Power interface: 16A power plug
Signal interface: Sanxin Caton seat
Control method: DMX512, RDM
Channel mode: 36 international standard DMX512 channels
Display system: 2.5 -inch touch LCD display, Chinese and English display, 180 degrees rotation

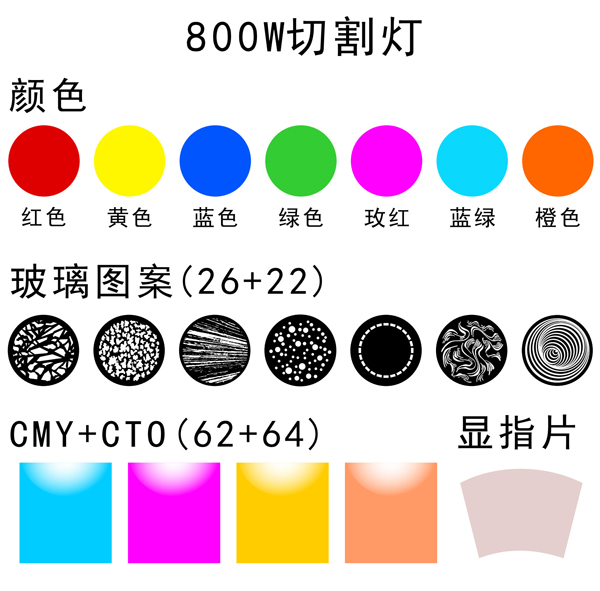

Fixed color: 7 colors+white light
Mixed color system: independent CMY mixed color system
Color temperature adjustment: independent CTO 2800-6000K linear adjustment
Prism disk: rotating 3 prism+6 rows of mirrors
Effective disk: super dazzling simulation of dynamic flames, flowing water and other dynamic effects
Fixed pattern: 8 plug -in fixed patterns+white circle
Rotating pattern: 6 patterns (insertable) outer diameter 27.9mm, effective diameter of 16.5mm, thickness of 1.1mm thick
Cutting system: 4 independent cutting slices, each piece can be closed alone, and it can rotate 90 °
Atomization system: 0 ~ 100%linear atomization
Aperture system: 5%~ 100%smooth adjustment

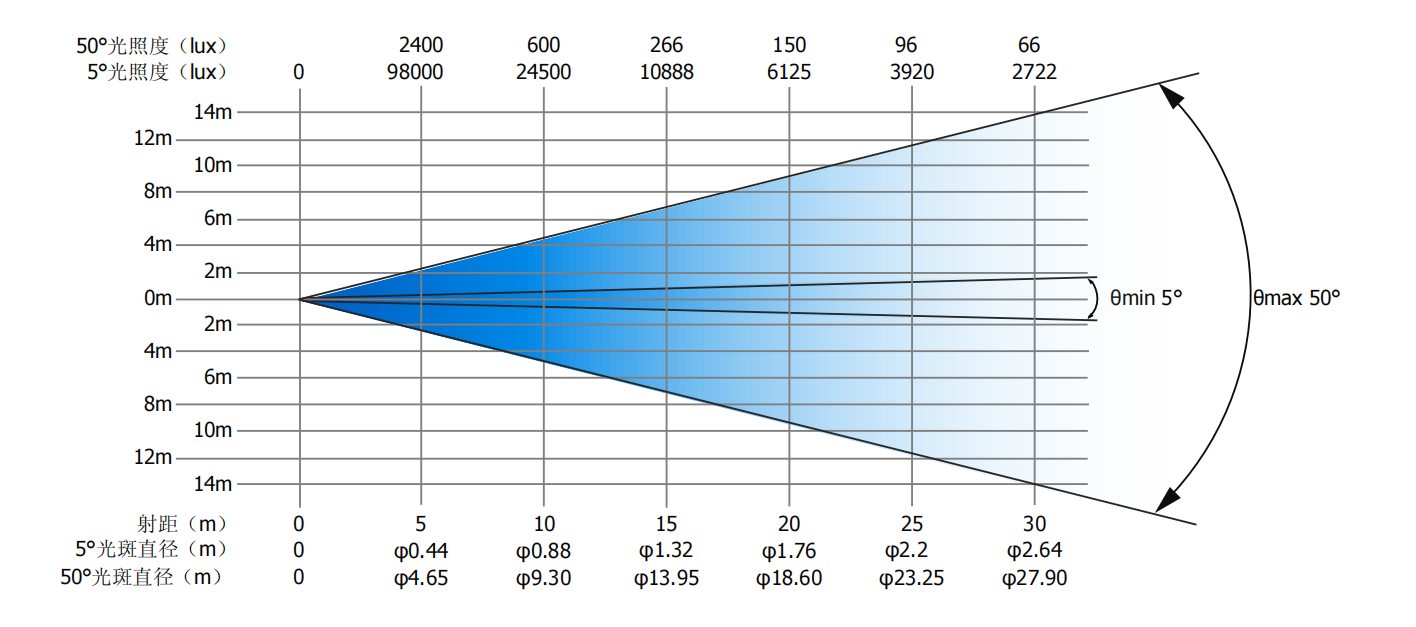

Substitution system: 4.5 ° ~ 50 ° Linear focus
Lighting system: 0-100%linear adjustment
Frequency flash system: The highest frequency can reach 25Hz, and you can choose random frequent flash and pulse frequency flash level scan: 540 ° (16 BIT precision scan)
Vertical scanning: 270 ° (16 BIT precision scanning)
Protection level: IP20
Working environment: 0-45 ℃

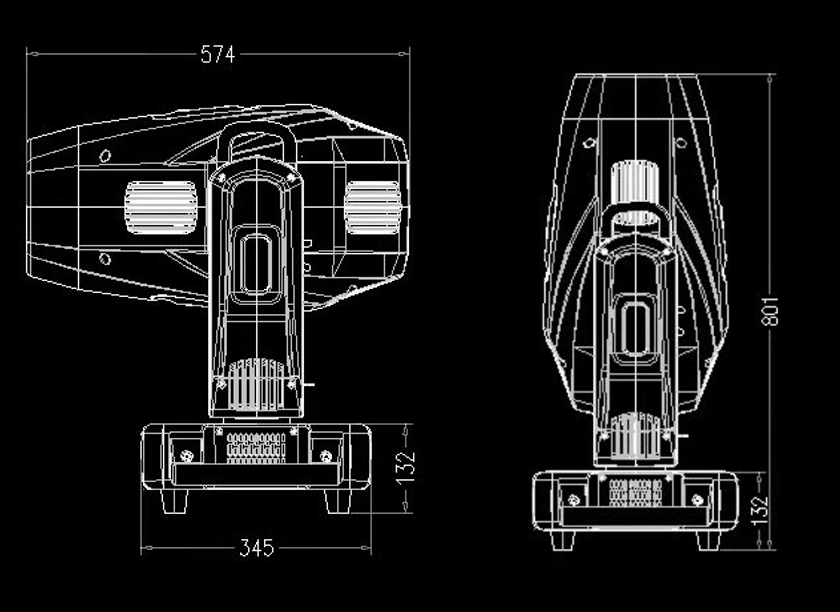

Product size: 510L*345W*800h (mm)
Product net weight: 40kgs
Product Mao: 43KGS
Input voltage: AC100-240V, 50/60Hz
End power: 1000W
Light source: 800W LED module
LED life: 20,000 hours
Color temperature: 6800K
Color rendering index: standard mode RA> 75, high display mode RA> 90
Light flux: 24000LM
Power interface: 16A power plug
Signal interface: Sanxin Caton seat
Control method: DMX512, RDM
Channel mode: 36 international standard DMX512 channels
Display system: 2.5 -inch touch LCD display, Chinese and English display, 180 degrees rotation
Fixed color: 7 colors+white light
Mixed color system: independent CMY mixed color system
Color temperature adjustment: independent CTO 2800-6000K linear adjustment
Prism disk: rotating 3 prism+6 rows of mirrors
Effective disk: super dazzling simulation of dynamic flames, flowing water and other dynamic effects
Fixed pattern: 8 plug -in fixed patterns+white circle
Rotating pattern: 6 patterns (insertable) outer diameter 27.9mm, effective diameter of 16.5mm, thickness of 1.1mm thick
Cutting system: 4 independent cutting slices, each piece can be closed alone, and it can rotate 90 °
Atomization system: 0 ~ 100%linear atomization
Aperture system: 5%~ 100%smooth adjustment
Substitution system: 4.5 ° ~ 50 ° Linear focus
Lighting system: 0-100%linear adjustment
Frequency flash system: The highest frequency can reach 25Hz, and you can choose random frequent flash and pulse frequency flash level scan: 540 ° (16 BIT precision scan)
Vertical scanning: 270 ° (16 BIT precision scanning)
Protection level: IP20
Working environment: 0-45 ℃
Product size: 510L*345W*800h (mm)
Product net weight: 40kgs
Product Mao: 43KGS
Product appearance: flame retardant, high temperature resistance, folding integrated light hook
