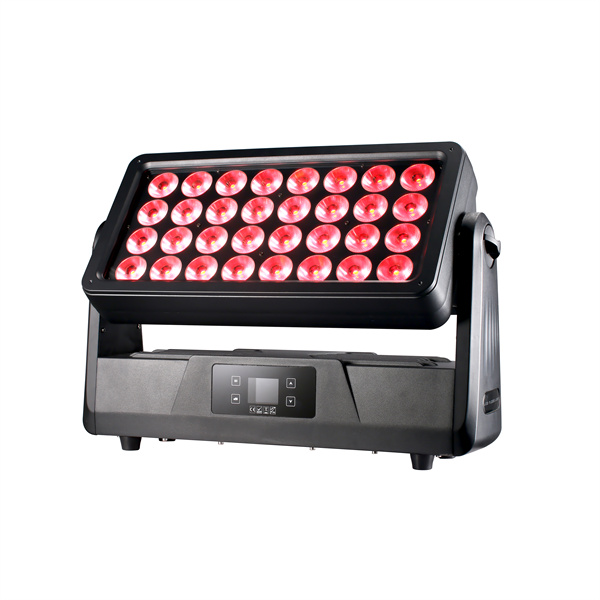

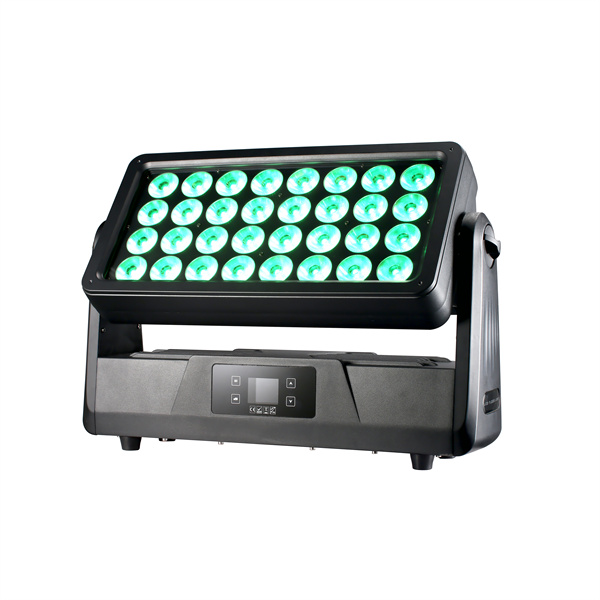

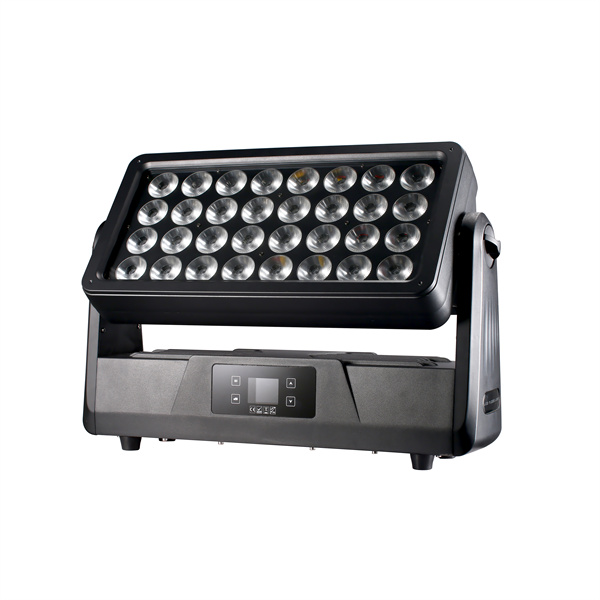

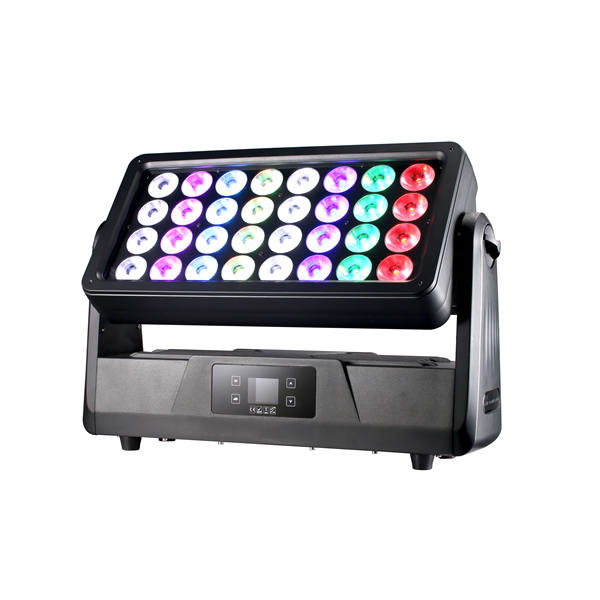

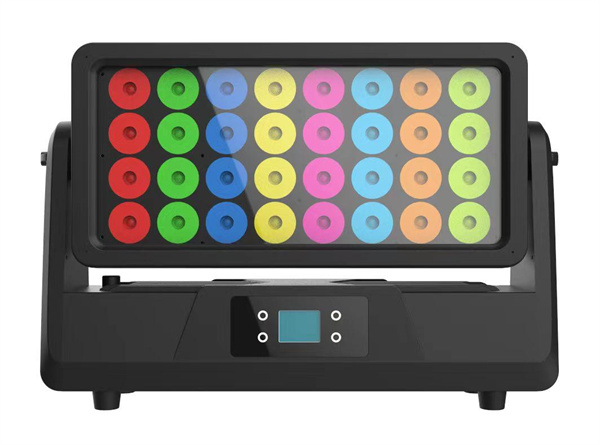

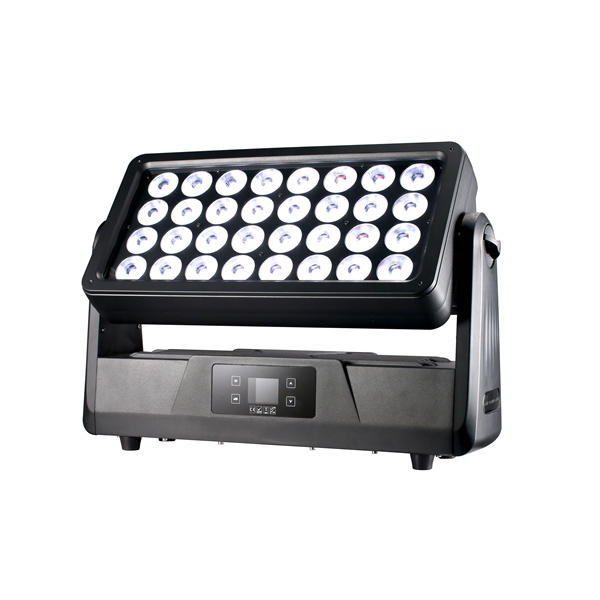

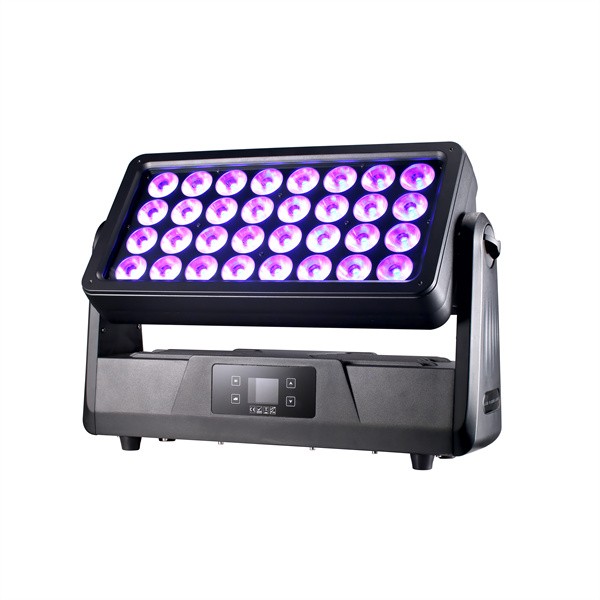

IP65 32x30W Pixel Control RGBW moving head City Color light
  1. IP65 32x30W Pixel Control RGBW moving head City Color light
  2. IP65 32x30W Pixel Control RGBW moving head City Color light
  3. IP65 32x30W Pixel Control RGBW moving head City Color light
  4. IP65 32x30W Pixel Control RGBW moving head City Color light

IP65 32x30W Pixel Control RGBW moving head City Color light

Product Item:LW-3230

Send Inquiry Send Email



PREVIOUS:ip65 RGBW city color LED 4in1 Adjustable angle led washer flood light
NEXT:36x5in1 RGBWA LED zoom wash

Description

Waterproof 32X30W Pixel Control RGBW moving head City Color Light flood Led Wall Washer LW-3230
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Light Source: 32 LEDs (quad-color RGBW) 30 W
Power: 1000W
50,000 hours life expectancy
Installed Optics: 10°(25°/45°/60°)
Selectable PWM: 1,200 Hz- 24,000 Hz

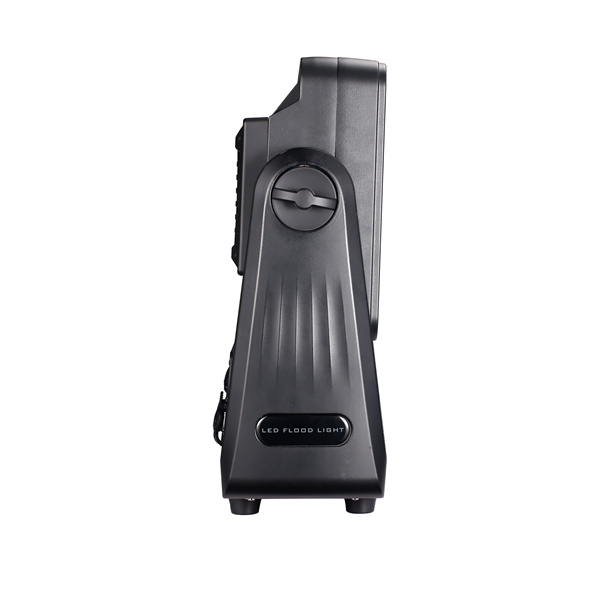

Manual Tilt Ranges: 0° to 145°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Display: Colorful LCD display
Dim Modes: 4
Built-in Automated Programs: Yes
Dimensions: 556 x 134 x 377 mm
Weight: 15 kg
Exterior Color: Black
Housing Material: Aluminum die-cast, High-strength engineering nylon plastic, anti-UV treatment, high temperature resistance, anti-aging

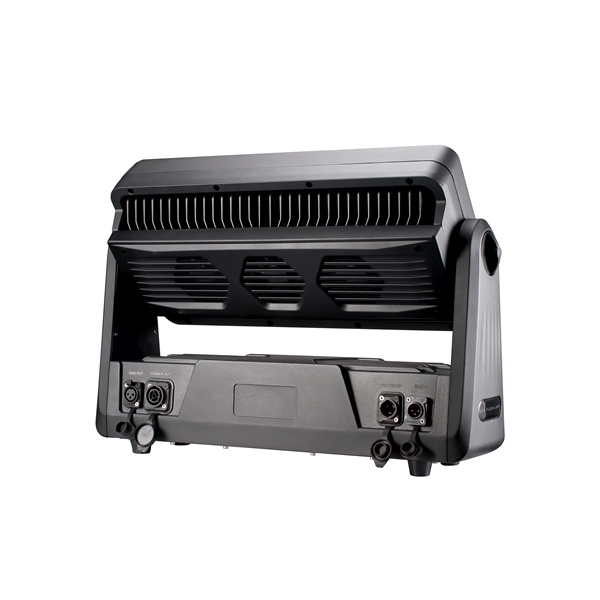

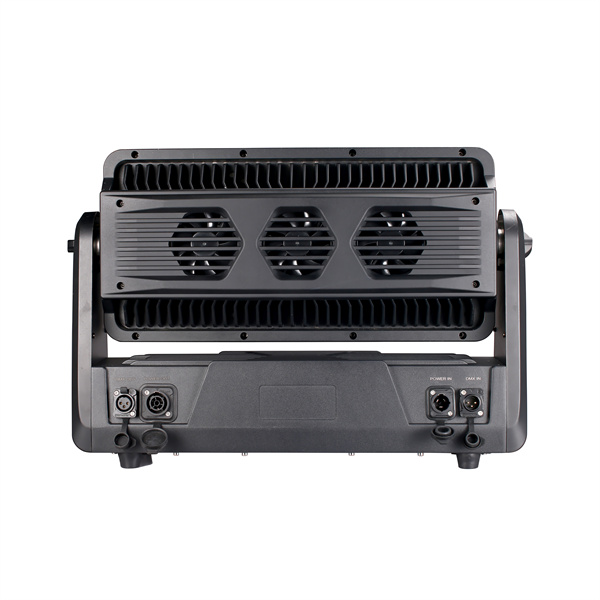

Cooling: Silent waterproof fans, fan speed intelligent control
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 exhaust valve
Temperature (Ambient): -20 °C to 45 °C
Power Connection: Local plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: Seetronic 3-pin or 5-pin IP65 XLR
Control Protocol: DMX, RDM
DMX Channels: STAG/4/6/8/32/34/40/SHV
LED Panel: 8 individually controllable segments
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @   230 V
1.5m Seetronic Powerkon IP65 power cord
1.5m Seetronic DMX Cable

Omega bracket with mounting hardware


Magnetic Filter available (extra charge) : 40-60 degrees optional
