Description

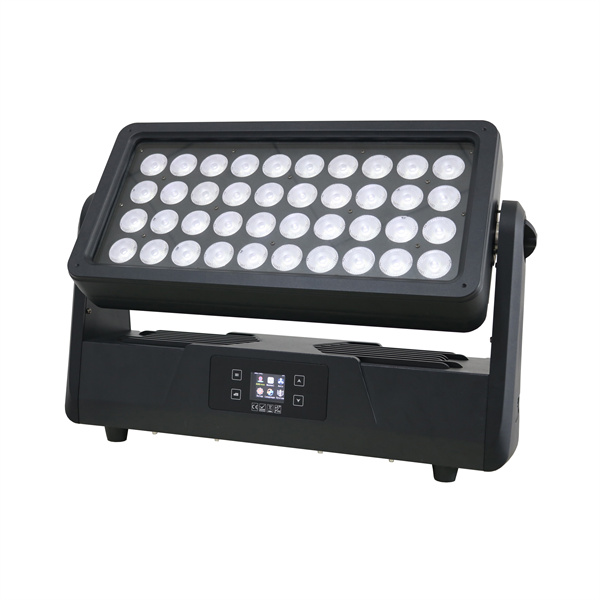

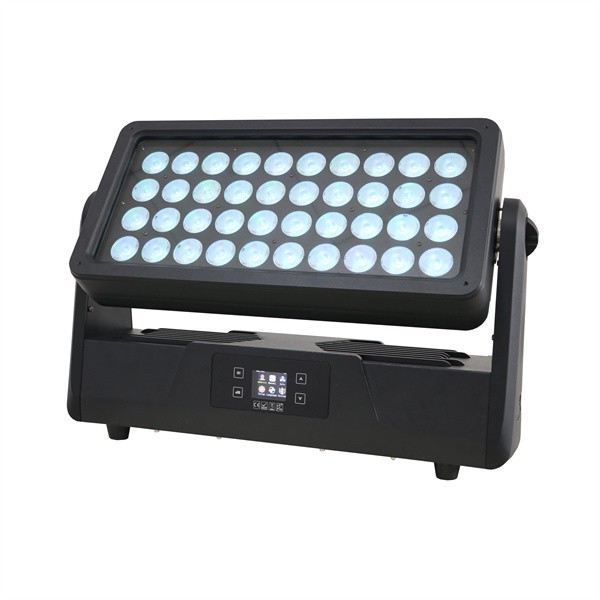

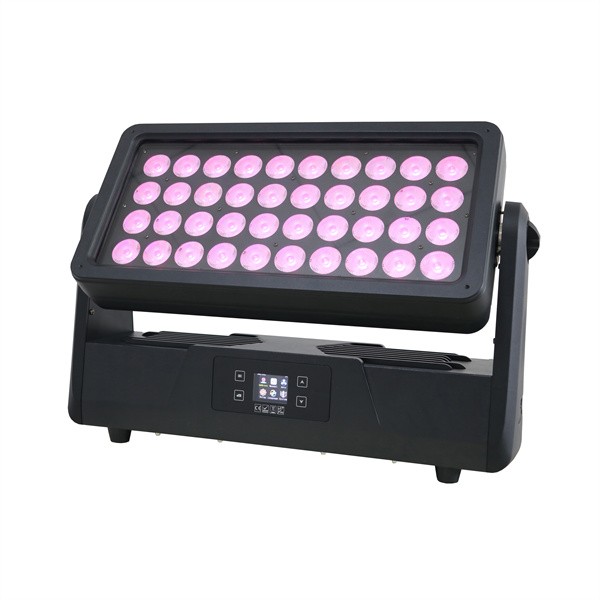

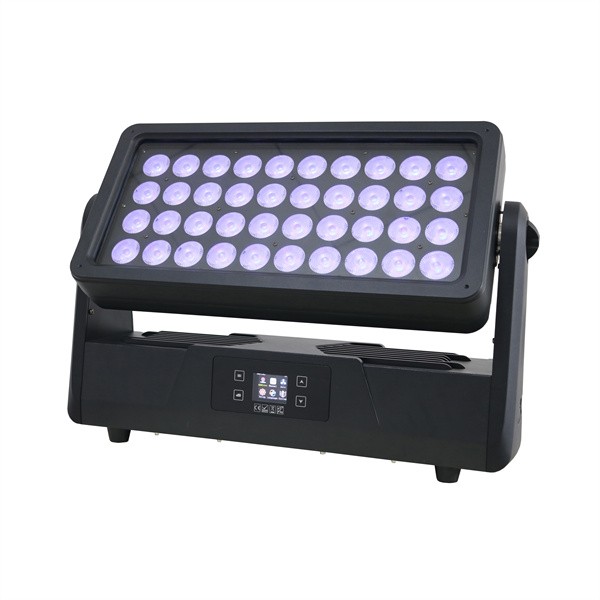

Powerful waterproof ip65 city color LED rgbw 4in1 Adjustable angle led washer flood light LW-4020
SPECIFICATIONS
OPTICAL
Light Source: 40 x 20W RGBW LEDs
50,000 hours life expectancy
Installed Optics: 25°（15°/45°/60°）
Selectable PWM: 1,200 Hz- 24,000 Hz
DYNAMIC EFFECTS

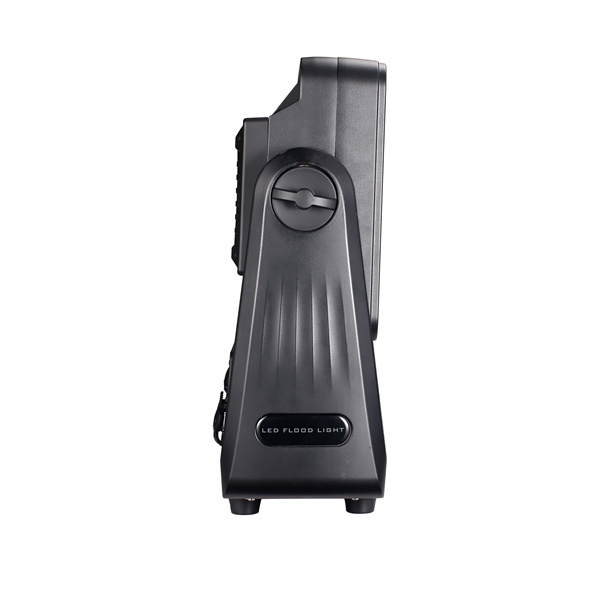

Tilt Ranges: 0° to 145°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Display: Colorful LCD display
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 556 x 134 x 377 mm
Weight: 15 kg
Exterior Color: Black
Housing Material: Aluminum die-cast, High-strength
engineering nylon plastic, anti-UV treatment, high
temperature resistance, anti-aging
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 exhaust valve
Temperature (Ambient): -20 °C to 45 °C

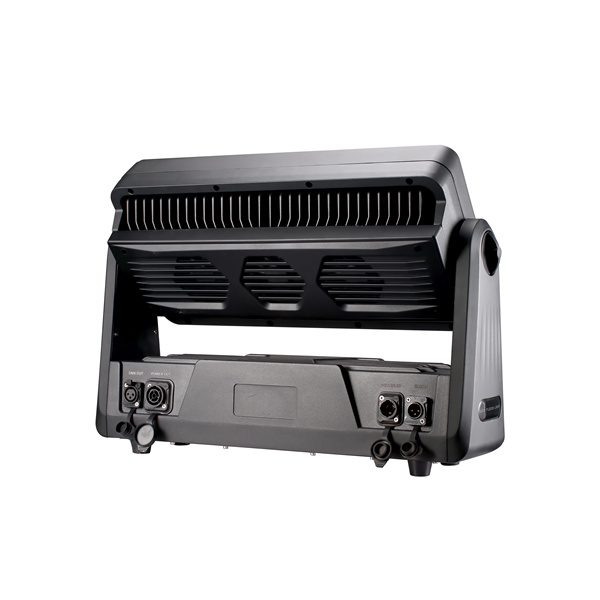

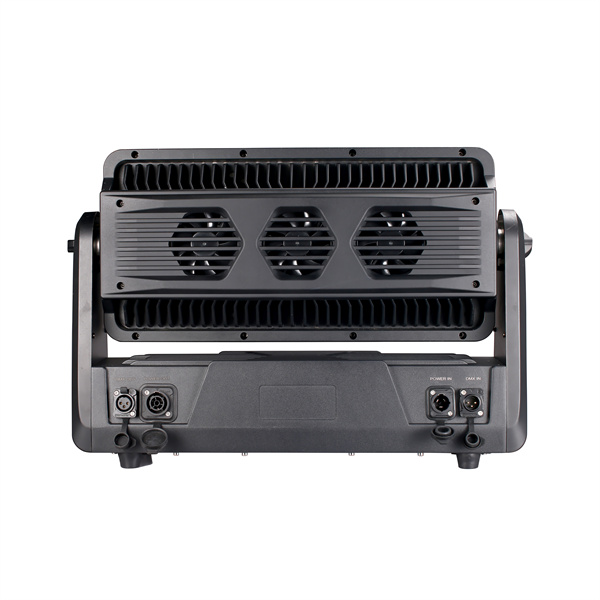

CONNECTIONS
Power Connection: Local plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: Seetronic 3-pin or 5-pin IP65 XLR
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 4/6/9 Channels
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
1000W
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
WHAT'S INCLUDED
1.5m Seetronic Powerkon IP65 power cord
1.5m Seetronic DMX Cable
Omega bracket with mounting hardware
