Quartz DMX Lighting Console
  1. Quartz DMX Lighting Console
  2. Quartz DMX Lighting Console
  3. Quartz DMX Lighting Console
  4. Quartz DMX Lighting Console
  5. Quartz DMX Lighting Console
  6. Quartz DMX Lighting Console

Quartz DMX Lighting Console

Product Item:LC-Quartz

Send Inquiry Send Email PDF



PREVIOUS:6 eyes 2W RGB animation laser light
NEXT:DMX Controller Tiger Touch Pro console

Description

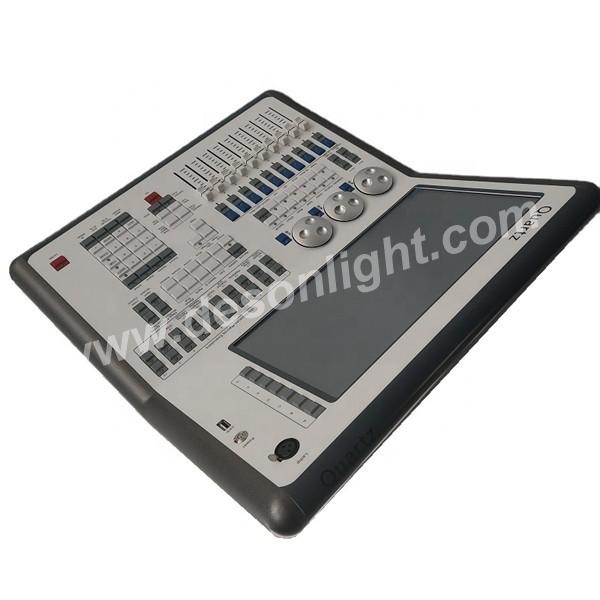

Quartz Tiger Touch DMX Lighting Console LC-Quartz

Use 11.1/11.0/10.1/10.0 software version, no time limit.

Built-in 8 languages, support Chinese menu display.
Open the mold to customize the ergonomic handrail, beautiful appearance, simple atmosphere.
Built-in a 14.1 tilt widescreen touch screen, high resolution and high brightness.
i5 CPU, 4G DDR3 memory, 120G solid state drive.
10 program page flipping levers, 20 macro function buttons.
3 high-precision imported encoders.
Built-in Visualiser 3D visualization software.
More than 1000 virtual replays.
Powerful CMY palette function, support graffiti style handwriting naming function.
Support arbitrary adjustment of window size.
Built-in more than 1000 light libraries, built-in light library editing software.
The main components are all imported to better ensure the stability of the console.
The power supply adopts Taiwan Mingwei switching power supply, 100-120V, 200-240V 50/60Hz.
Built-in UPS uninterruptible power supply, 0 delay automatic switching.
Support connecting to a computer for offline programming, etc.

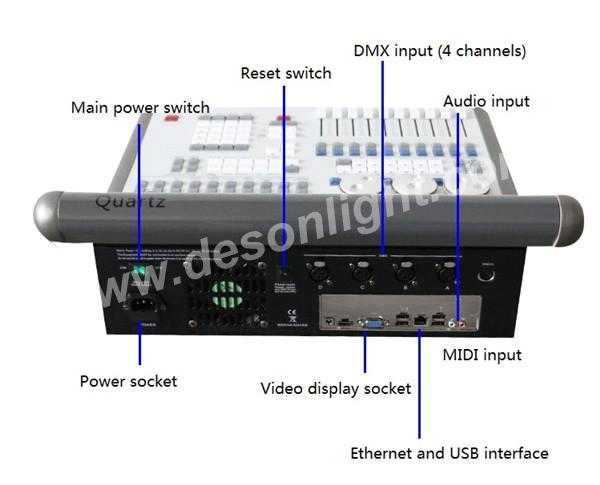

The console comes with 4 physical DMX output ports and 2048 channels.
1 MIDI interface, support MIDI time code.
1 work light interface, 3 USB interfaces.
1 VGA external screen interface, which can be connected to an external touch screen.

The console comes with one-key restore software.

[Size] Packing size: 60*55*34 cm, bare metal size: 51*48*21cm
[Weight] Net weight: 11kg, gross weight: 25kg
