Description

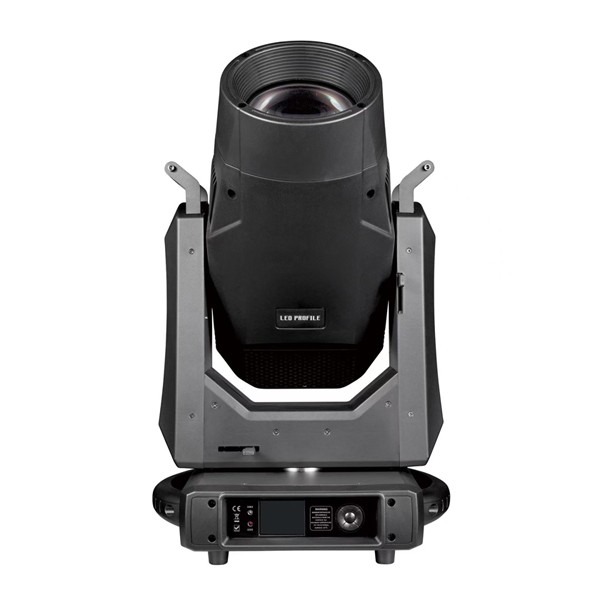

800W LED 3in1 CTO CMY computer cutting Beam light LM-E800
Technical Specifications
Operating Voltage: AC100V-240V, 50/60Hz
Rated Power: 1000W
Light Source: One high-brightness, high-power 800W white 6400K LED module.
Color Rendering Index: Standard mode Ra>75 or Ra>95 selectable
Beam Angle: 4.5°-45°, variable focus lens, linear magnification/reduction function.
Control Channels: 34/44 international standard DMX512 channels
Operating Modes: Voice controlled, auto-running, master-slave, DMX512, RDM.
CMY Color Mixing: Cyan, magenta, yellow, smooth and stepless color mixing.
CTO Color Temperature Linear Adjustment
Color Palette 1: 5 colors CTO 2800-6000K linear adjustment + white light, halftone effect.
Color chips can be positioned arbitrarily, with a bidirectional rotating rainbow effect.
Color Mixing System: Independent CMY color mixing system.
Fixed Pattern Discs: 11 + flowing + white light, fixed pattern chips + white circles, with pattern jitter function.
Rotating Pattern Discs: 7 pluggable rotating pattern chips + white circles, with pattern jitter and arbitrary pattern positioning functions.
Cut Discs: A set of four-blade controllable spot cutting systems, the entire cutting system can rotate 90°, and through precise control of the cutting blades, arbitrary shape spot shapes can be created.
Prisms: 2 prisms, one 4-prism and one 8-prism, prisms can rotate bidirectionally, can be stacked, and have adjustable speed.
Focusing: DMX linear high-definition focusing.
Frosting: Built-in frosting filter for generating and adjusting the softening effect.
Aperture System: 5%~100% smooth adjustment.
Strobe: 1-25 times/second ultra-high-speed strobe effect, with selectable random strobe and pulse strobe.
Dimming: 0-100% linear dimming.
Aperture: 0-100% linear.
Horizontal/Vertical: 540° horizontal, 270° vertical, 16-bit precision scanning, automatic homing correction.
Display: LCD screen.
Software: Built-in programs available.
DMX address code changing, machine reset, and voice control mode switching can be performed from the control panel.
Other functions: RDM function.
Intelligent energy saving; the LED light source will automatically turn off when the lights are off (dimmer fully off).
Product net weight: 27.8Kg
Packaging weight: 29.5KG
