Description

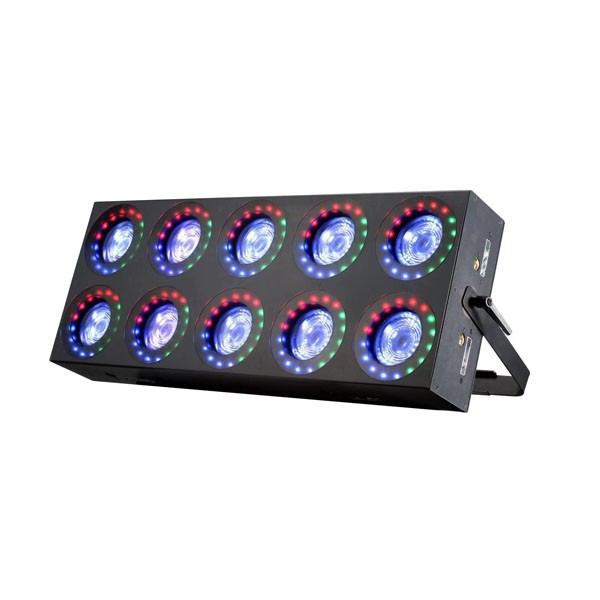

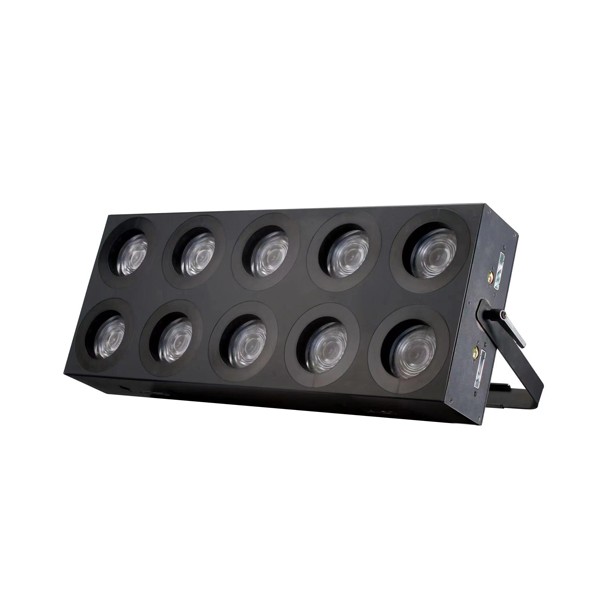

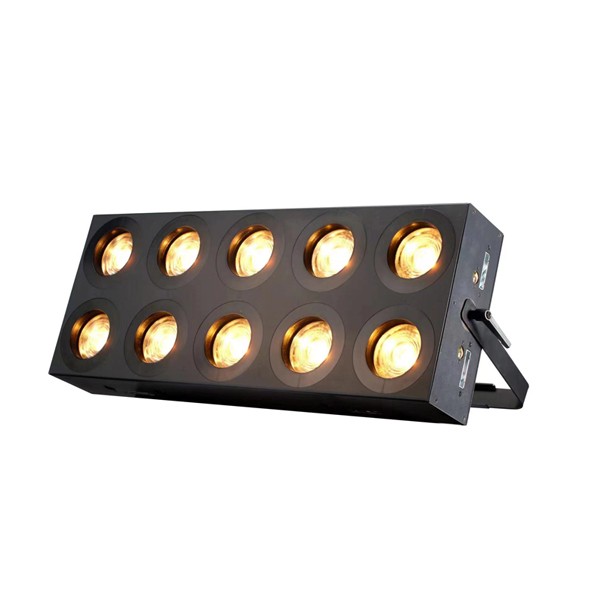

10x30W CW COB LED matrix stage light LB-702
light source:
Light source: 10 x 30W LED (COLD White+White)
Inner ring atmosphere light: 10 x 12 x 0.3W LED (RGB)
Outer circle LED: 10 x 16 x 0.3W LED (RGB)
LED expected service life: 20,000 hours
Beam angle: 4 °
The angle of light spots: 7 °
Light flux: 8500 lm
Control and program
5 keys
Control panel: LCD display
Control mode: DMX512, RDM,
DMX channel mode: 2
Control channel: 22/93
Software upgrade: update software through DMX connection
Electrical and interface
Adaptive power supply
Input voltage range: 100-240V ~ 50/60Hz
Power: 370 W
Power input/output: Power Connection input/output
Signal input/output: Three -core Carton head socket
Lighting size:
Long: 824 mm
Width: 115.5 mm
High: 397.3 mm (including handle)
Net weight: 11.5 kg
Mao heavy: 26kg (2 packs 1)
Packaging size: 87.5cm*width 35cm*height 49cm
